Jackson TempStar Series Installation, Operation & Service Manual

PARTS
40

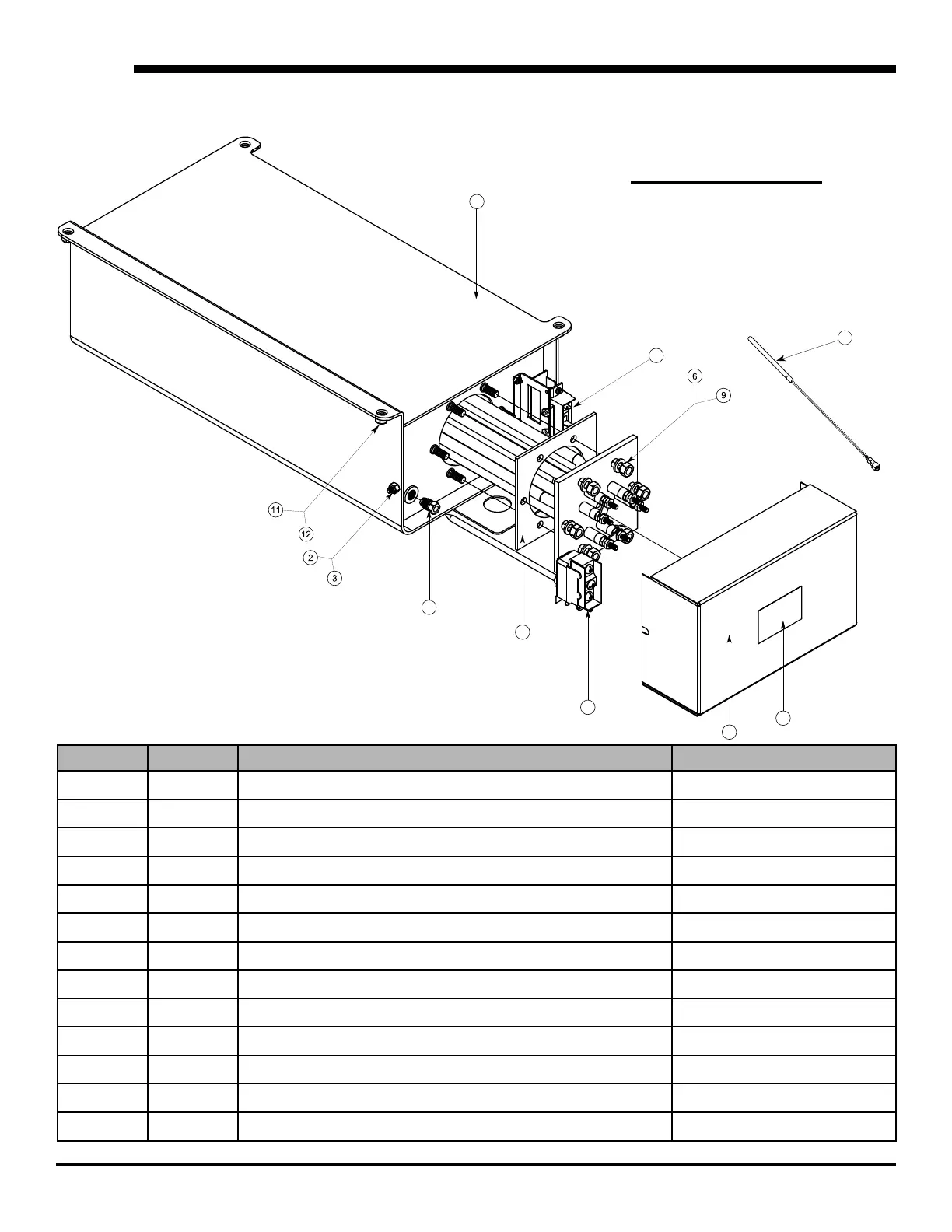

RINSE TANK ASSEMBLY
1
7
8
5
4
8
10
ITEM QTY DESCRIPTION PART NUMBER
1 1 Booster Tank Weldment 05700-002-10-19
2 2 Locknut, 10-24 with Nylon Insert 05310-373-01-00
3 2 Washer, #10 S/S Flat 05311-173-01-00
4 1 Decal, Warning-Disconnect Power 09905-100-75-93
5 1 Booster Tank Cover Weldment 05700-002-16-51
6 6 Nut, Hex, 5/16"-18 05310-275-01-00
7 1 Thermostat, High Limit 05930-011-49-43
8 1 Thermostat, Regulating with Imperial Brass Fitting 06401-011-66-55
9 6 Lockwasher, 5/16" Split 05311-275-01-00
10 1 Gasket, Rinse Heater 05330-200-02-70
11 4 Locknut, 1/4"-20 with Nylon Insert 05310-374-01-00
12 4 Washer, 1/4" S/S Flat 05311-174-01-00
13 1 Probe, Thermistor 4" LG 06685-004-17-26
SEE PAGE ENTITLED
"WASH HEATERS/RINSE HEATERS."
COMPLETE ASSEMBLIES
230V, 14KW 70
◦
Rise - P/N 06401-004-19-57
240V, 12 KW 40
◦
Rise - P/N 06401-004-19-55
410V, 12KW 40
◦
Rise - P/N 06401-004-19-56
415V, 12KW 40
◦
Rise - P/N 06401-004-19-54
13

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
