Jackson TempStar Series Installation, Operation & Service Manual

PARTS
58

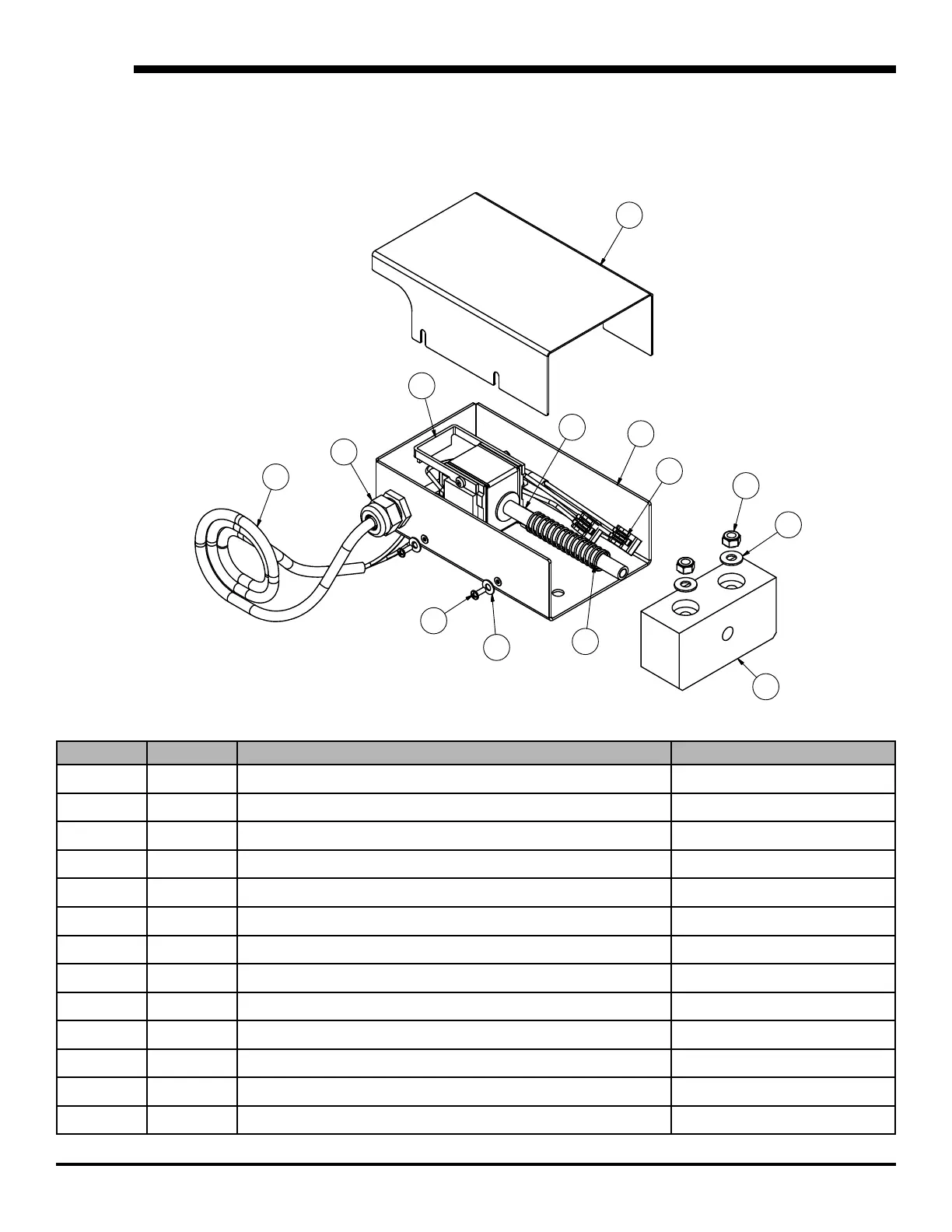

TEMPSTAR HH VENTLESS DOOR INTERLOCK
2
4
6
5
1
9
10
7
8
3
13
11
12
ITEM QTY DESCRIPTION PART NUMBER
1 1 Guide Block, Door Lock 09330-004-22-72
2 1 F-Cover, Door Lock Mounting 05700-004-22-80
3 1 W-Rod, Interlock Weldment 05700-004-23-15
4 1 Soleniod, Horizontal 1" Push 04820-004-24-11
5 1 Spring, Comp. 05935-004-24-10
6 1 W-Base, Door Interlock Box 05700-004-24-25
7 8 Screw 3/8 Pan Head 05305-171-02-00
8 8 Washer, Flat #10 05311-173-02-00
9 2 Locknut, 1/4-20 05310-374-01-00
10 2 Washer, S/S 1/4-20 I.D. 05311-174-01-00
11 1 Fitg, 3216 Liqtite Blk 05975-011-59-50
12 2 Connector, 2-Conductor 05935-004-03-49
13 1 Cord, SJ 55" LG 05700-004-24-31

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
