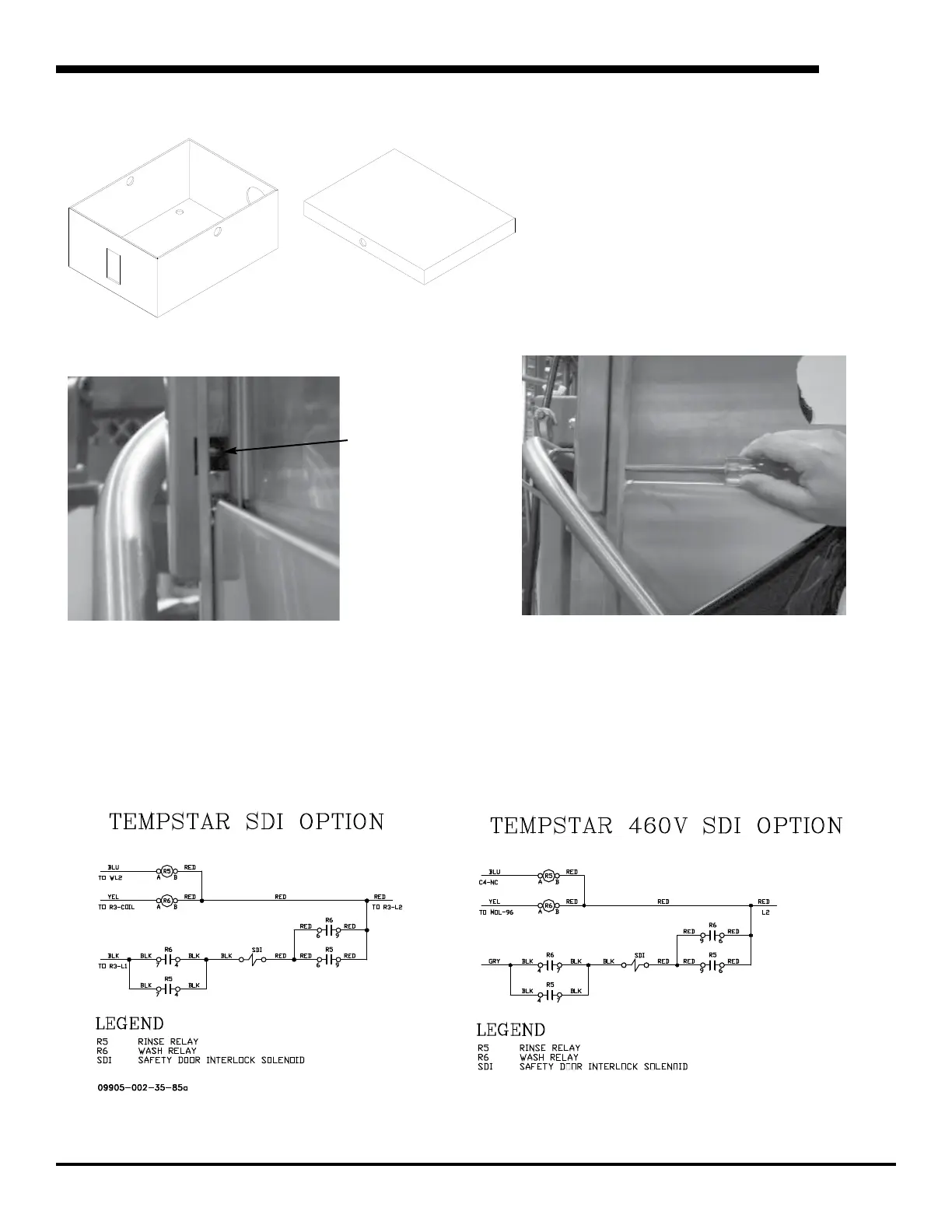

SAFETY DOOR INTERLOCK/DOOR OVERRIDE INSTRUCTIONS
PARTSPARTS
59
Safety Door Interlock Box Bottom
05700-001-21-26
Safety Door Interlock Box Cover
05700-001-21-27
Other Safety Door Interlock (SDI)
components (not shown):
Pipe Clamp (found on the side of the machine)
05700-000-35-05
Solenoid, Electrical Interlock Option
04810-100-61-33
Relay
05945-111-47-51
Latch access hole
The following instructions are for Tempstar HH models equipped with the Safety Door Interlock option. These
instructions should only be used if the door interlock fails to unlatch and the doors are unable to be opened.
1. To manually disengage, nd the latch access hole.
2. Gently insert the tip of a screwdriver or other metal utensil into the access hole, making contact with the latching arm.
3. Disengage the interlock by pushing the latching arm back with a minimal amount of force.
4. The doors should now open.
