Jackson TempStar Series Installation, Operation & Service Manual

Thermostat
05930-003-13-65
Solenoid Valve
04810-100-09-18
To Cold Water Supply
Nipple, Close, 1/2” NPT
(Not Shown)
04730-207-15-00
Valve, Check, 1/2”
(Not Shown)
04820-002-55-77
Lid, Drain Quench
05700-002-67-16
Box, Drain Quench
05700-002-69-96
Reducer, 1-1/2” to 1/2”
04730-002-55-75
Tee, 1-1/2” x 1-1/2” x 1-1/2”
04730-011-69-93
Modified Compression
Fitting
05700-001-16-52
Reducer, 1-1/2” x 1/4”
04730-002-55-76
To Dishmachine Drain
Nipple, 1-1/2” NPT
04730-207-40-00
Elbow, 1-1/2” 90 Street
04730-206-32-00
Drain Quench
Assembly
06401-002-59-52

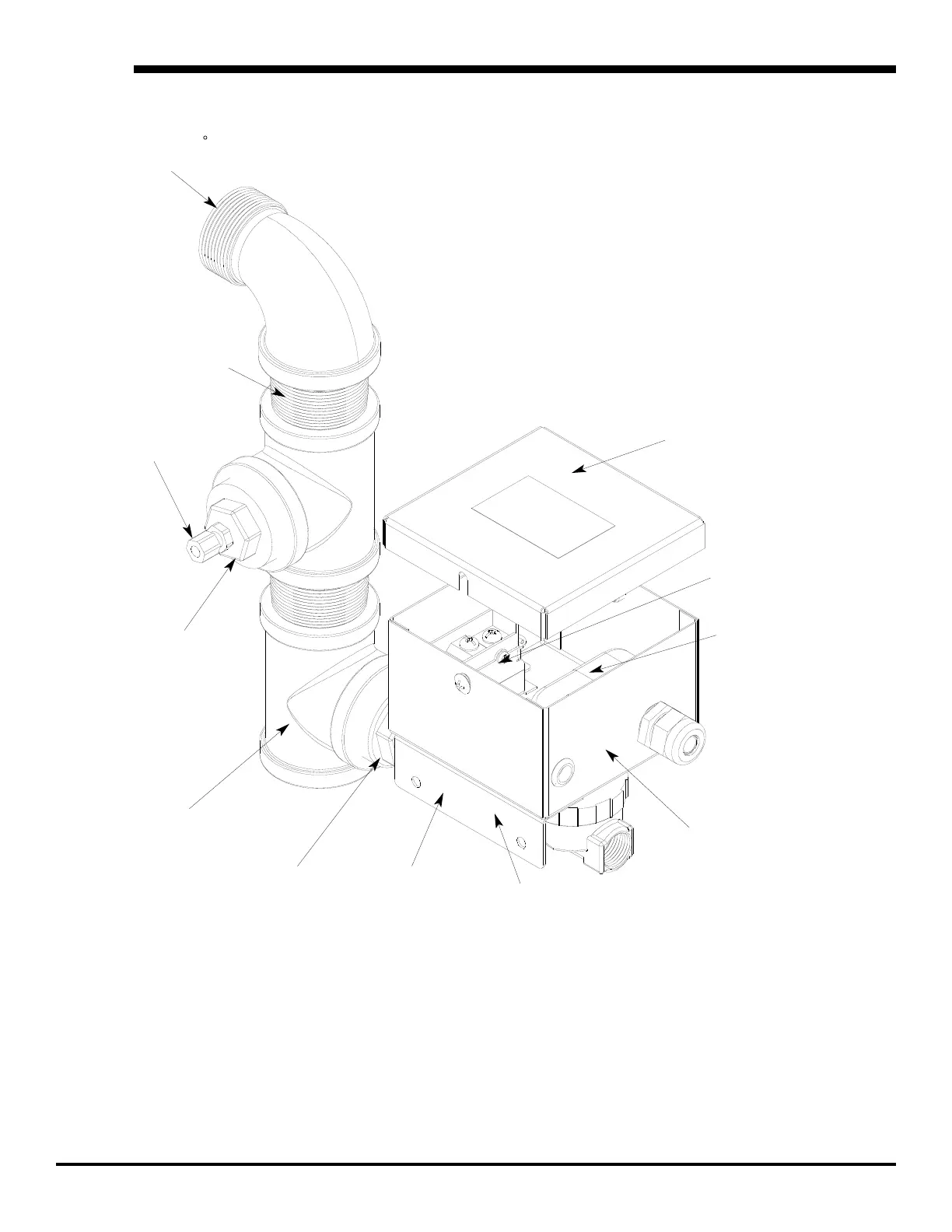

PARTS
DRAIN QUENCH ASSEMBLY
From the existing drain, attach two additional Tees using the 1-1/2" NPT Close Nipples. Tighten the Reducers into the
Tees as shown above. Attach the Modied Compression Fitting into the 1-1/2" to 1/4" Reducer. Position the bulb of the
thermostat so that it rests approximately 1/4" from the bottom of the Tee. Tighten the Modied Compression Fitting as
required. Attach to the incoming cold water line. Use thread tape as required to prevent any leaks.
50

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
