PARTS
29

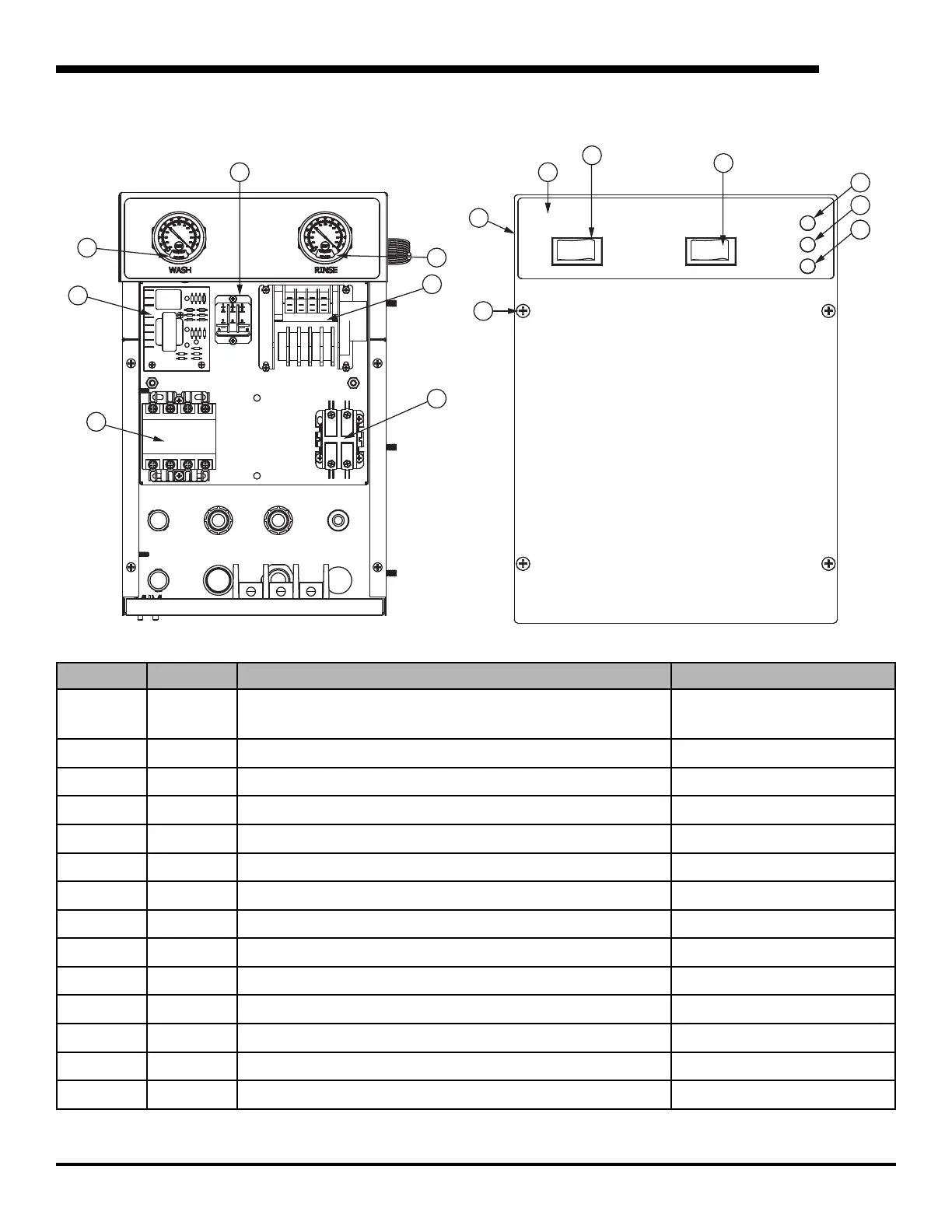

SIDE MOUNT MECHANICAL TIMER CONTROL BOX
12
10
9
8
7
6
13
10
14
5
3
11
3
4
2
1
ITEM QTY DESCRIPTION PART NUMBER
1
2
1
Contactor, 4 Pole, 220V, 1 Phase
No Booster, Steam Models and LT
05945-109-01-69
2 1 Liquid Level Control 06680-200-08-21
3 1 Decal, 120°F Wash/Rinse (not shown) (LT only) 09905-002-82-46
4 1 Relay, 240V, 50/60Hz, Top Mount 05945-002-47-74
5 1 Timer, Cam/Mechanical 05945-303-31-00
6 1 Contactor, 2 Pole, 220V, 20 Amp (208-230V Unit only) 05945-002-74-20
7 4 Bolt, 10-32 x 1/2" Slotted Truss 05305-173-04-00
8 1 Bracket, Electrical Box Mounting 05700-002-18-48
9 1 Decal, Control Box Cover 09905-003-97-39
10 1 Switch, Operation 05930-301-53-00
11 1 Switch, Power 05930-011-49-55
12 1 Light, Red 05945-504-07-18
13 1 Light, Green Indicator 05945-504-08-18
14 1 Light, Amber 05945-504-06-18
