Jackson TempStar Series Installation, Operation & Service Manual

PARTS

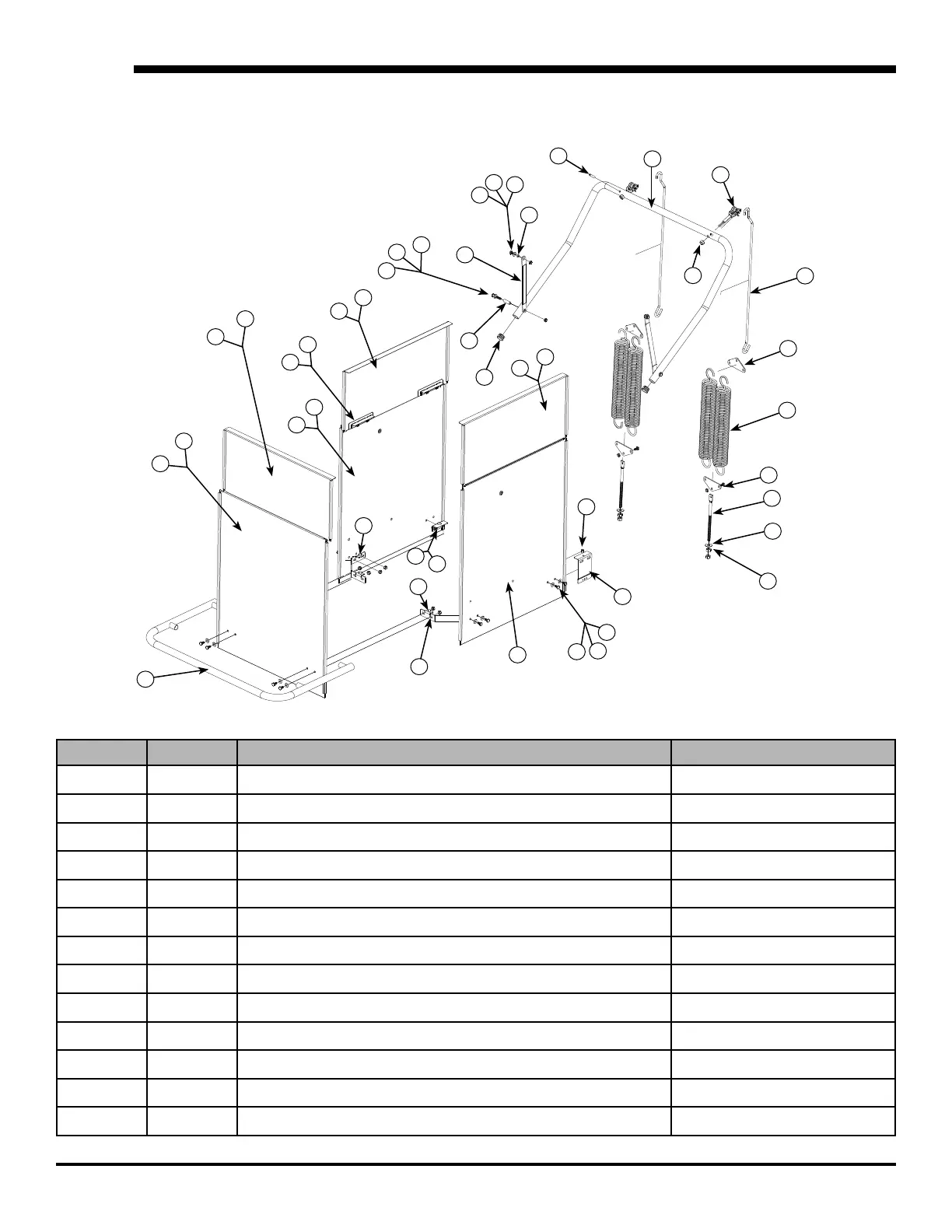

CANTILEVER ARM/DOOR ASSEMBLIES
32
ITEM QTY DESCRIPTION PART NUMBER
1 1 Cantilever Arm 05700-004-14-29
2 2 Sleeve, Cantilever Arm 05700-000-85-69
3 2 Screw, 1/4"-20 x 1 1/2" Long Hex Head 05305-274-23-00
4 4 Washer, 1/4" I.D. S/S 05311-174-01-00
5 4 Locknut, 1/4"-20 S/S Low Prole with Nylon Insert 05310-374-02-00
6 4 Plug, Cantilever 05340-011-35-00
7 2 Connecting Link 05700-021-92-45
8 2 Spring Pin, 1/4" x 1 1/8" Long 05315-407-06-00
9 2 Yoke Assembly 05700-000-75-77
10 2 Nut, 3/8"-16 S/S Hex Locking 05310-256-04-00
11 2 Rod, Spring Connecting 05700-002-00-91
12 4 Plate, Spring Multiplier 05700-002-00-88
13 4 Spring, Cantilever Door 05340-111-35-22
11
12
13
12
14
15
16
28
22
6
2
3
4
5
7
25
4
5
26
8
10
9
21
4
24
23
21
22
22
36
22
30
29
32
31
33
34
35
24
17
18
17
18
1
19

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
