Jackson TempStar Series Installation, Operation & Service Manual

PARTS

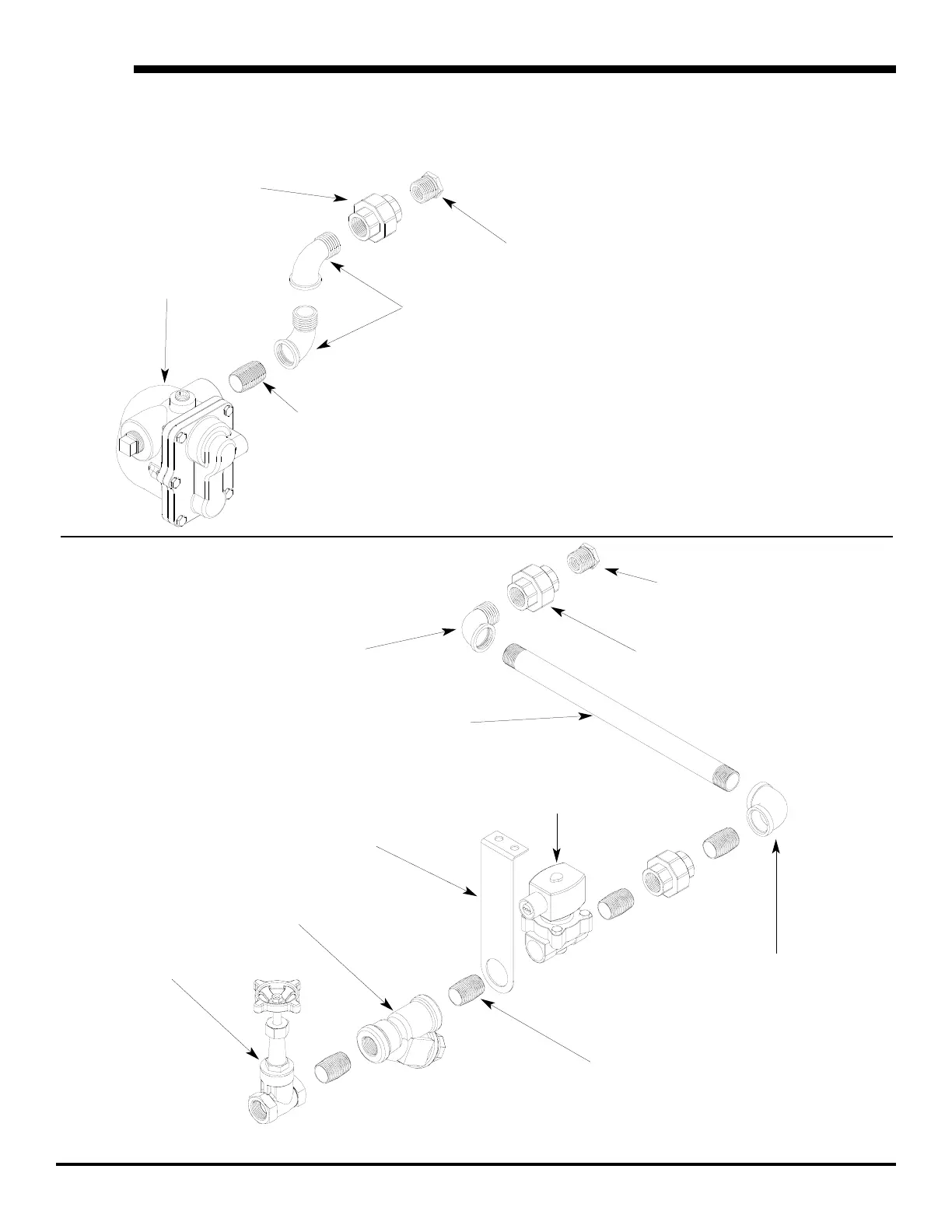

INCOMING STEAM PLUMBING ASSEMBLIES
Union, 3/4’’ NPT, Black Iron
04730-912-01-01
Elbow, 3/4” 90° Street
04730-011-87-37
Elbow, 3/4” 90° Street
04730-011-87-37
Elbow, 3/4” 90° Street
04730-011-87-37
Steam Trap, 3/4” NPT F&T
06680-500-02-77
Nipple, Close, 3/4’’ NPT, Black Iron
04730-907-01-00
Nipple, Close, 3/4’’ NPT, Black Iron
4 per assembly
04730-907-01-00
Bushing, Reducing, 3/4’’ to 1/2’’
04730-911-02-34
Bushing, Reducing, 3/4’’ to 1/2’’
04730-911-02-34
Union, 3/4’’ NPT, Black Iron
2 per assembly
04730-912-01-01
3/4” NPT Black Iron Pipe
05700-002-20-83
Gate Valve, 3/4” NPT
04820-100-19-00
Bracket, Steam Plumbing Support
05700-002-20-83
Y-Strainer, 3/4” NPT Black Iron
04730-217-01-32
Solenoid Valve, Steam Plumbing, 220V
04820-002-01-32
To order this complete assembly, use part number:
05700-002-01-55
To order this complete assembly, use part number:
05700-002-01-60
42

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
