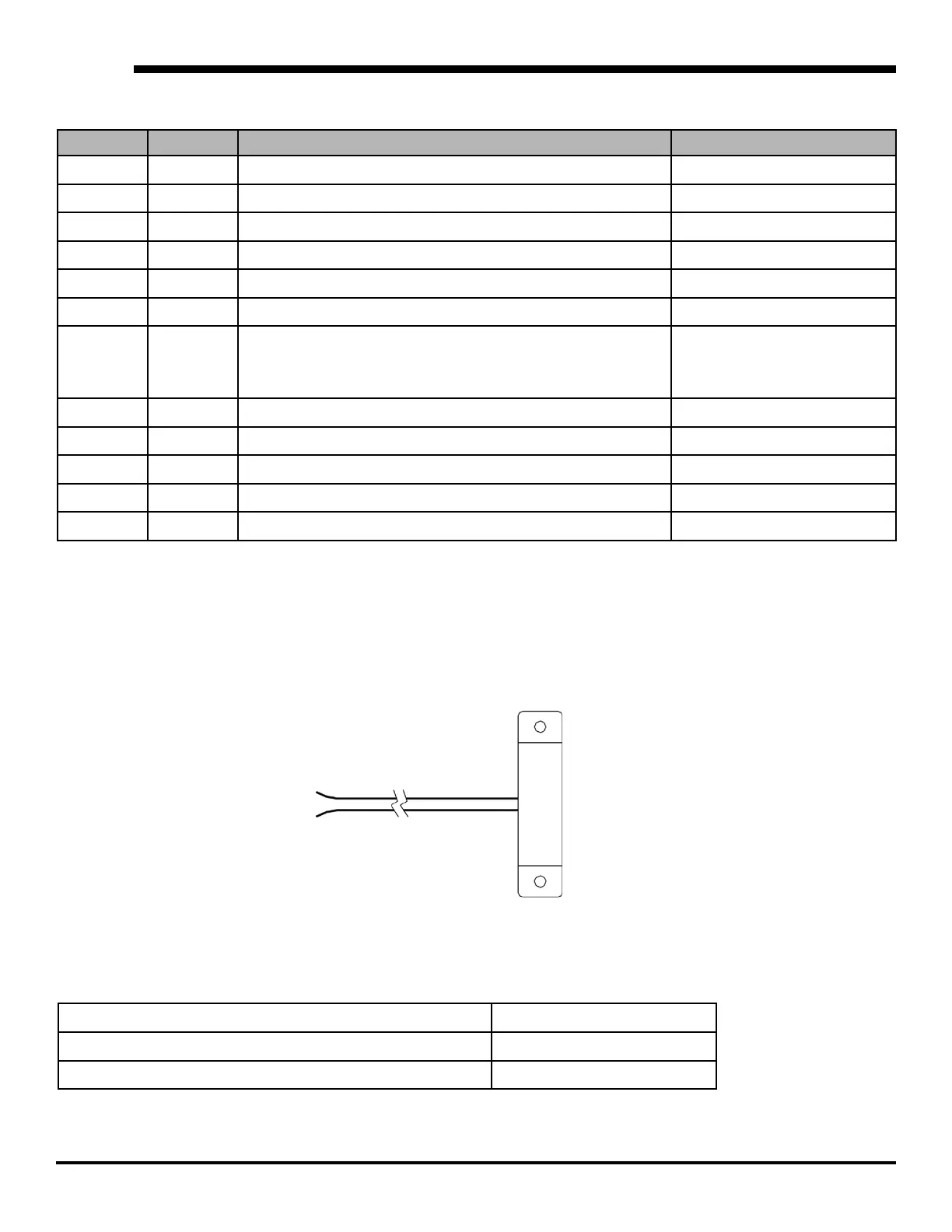

TUB ASSEMBLY (CONTINUED)
PARTS
Lockwasher, #8 Internal Tooth 05311-272-03-00
Locknut, 1/4"-20 S/S Hex with Nylon Insert 05310-374-01-00
Screw, 8-32 x 3/4" Round Head 05305-172-06-00
Associated Hardware:
Magnetic Reed Switch
05930-003-05-84
ITEM QTY DESCRIPTION PART NUMBER
30 1 Cover, Wash Heater 05700-031-47-57
31 1 Decal, Warning-Disconnect Power 09905-100-75-93
32 1 Decal, High Limit 09905-011-84-32
33 1 Thermostat Bracket 05700-011-81-64
34 1 Wash Heater Gasket 05330-011-47-79
35 1 Thermostat, Regulating 05930-510-02-79
1
Kit, Wash Thermostat Replacement
(Includes: thermostat, brass tting, 2 jumper wires & instruc-
tions)
06401-003-18-22
36 1 Thermostat, High Limit 05930-011-49-43
37 1 Fitting, 1/4" Imperial Brass 05310-924-02-05
38 1 Probe, Thermister 4” LG 06685-004-17-26
39 1 Thermostat Mounting Bracket 05700-004-22-17
40 1 Thermostat, Elan Electric Dual 05585-004-17-27

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
