LIGHTWEIGHT FAIRWAY MOWER

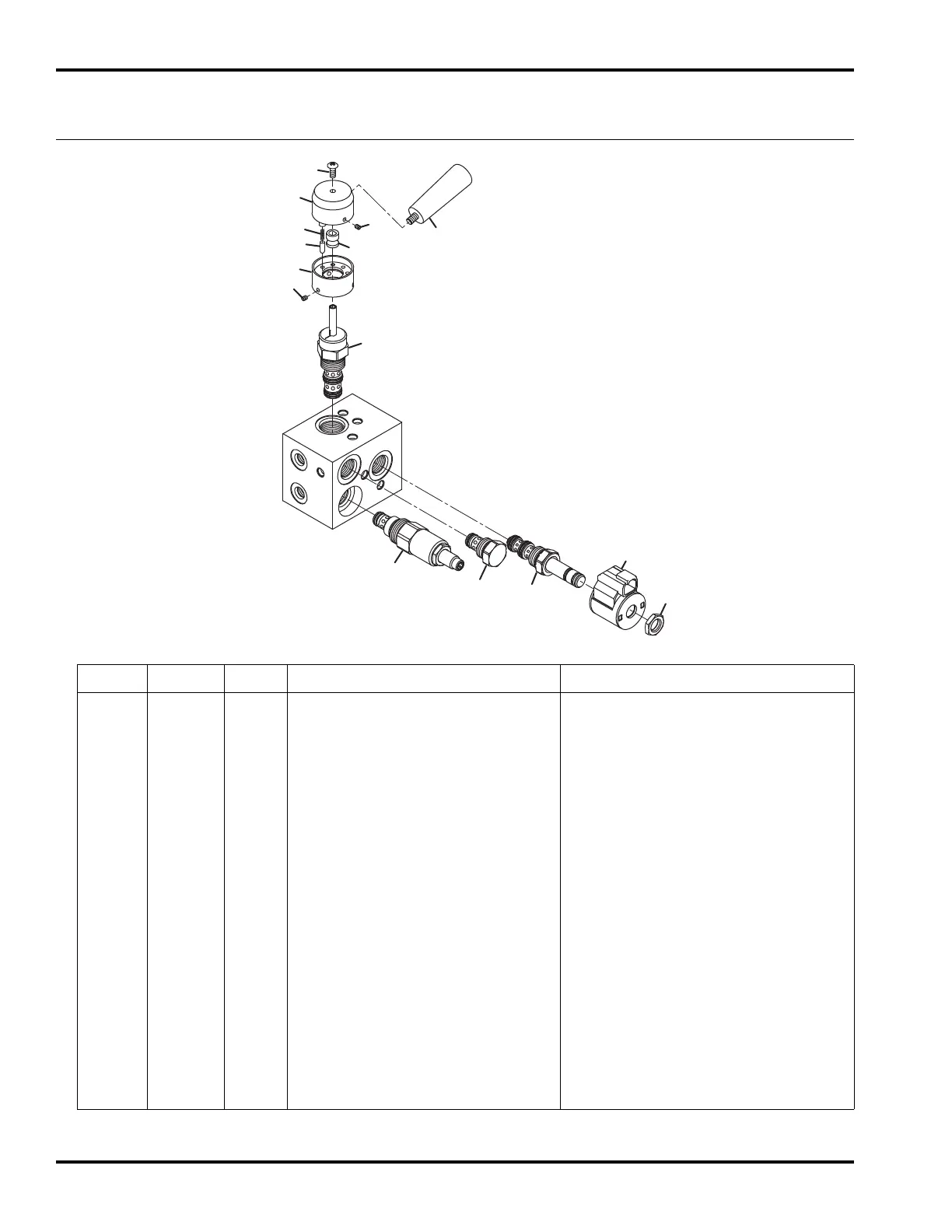

52.1 Brake Valve
Part Number 4286672
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
4286673 1 Check Valve
5003578 1 Seal Kit
2 4286674 1 Relief Valve, 350 psi
5003578 1 Seal Kit
3 4286675 1 Solenoid Valve
5003578 1 Seal Kit Set to 350 psi
4 4134532 1 Coil, Solenoid Valve REFERENCE SOL8, See 62.1
5 N/S 1 Nut, Coil
6 4286676 1 Valve, Manual Rotary
5003579 1 Seal Kit
4286677 1 Kit, Handle
7 N/S 1 Adapter Plate Assembly
8 N/S 5 Set Screw
9 N/S 1 Rotator
10 N/S 1 Spring, Detent
11 N/S 1 Pin, Detent
12 N/S 1 Screw, Rotator
13 N/S 1 Handle
14 N/S 1 Spacer
