107
> Change from previous revision
1
2
3
4
5
6
7
5
6
7
8
8
9
10
11
11
12
13
14
15
16
16
Item Part No. Qty. Description Serial Numbers/Notes
1
5003485 1 Front Cover
2 N/S 1 Shaft Seal
3 3006021 1 O-Ring
4 N/S 1 Snap Ring
5 N/S 1 Anti-Extrusion
6 N/S 1 Seal, Thrust Plate
7 4314346 2 Thrust Plate With drain holes
8 N/S 1 Seal, Section
9 4102440 1 Shaft, Drive
10 N/S 1 Gear, Driven
11 N/S 2 Dowel Pin
12 N/S 1 Body, Motor
13 N/S 1 Rear Cover
14 N/S 4 Screw, M10 x 100 mm SHCS
15 N/S 4 Flat Washer
16 5003140 2 Relief Valve
5003031 1 Seal Kit, Motor Includes items marked .
LIGHTWEIGHT FAIRWAY MOWER

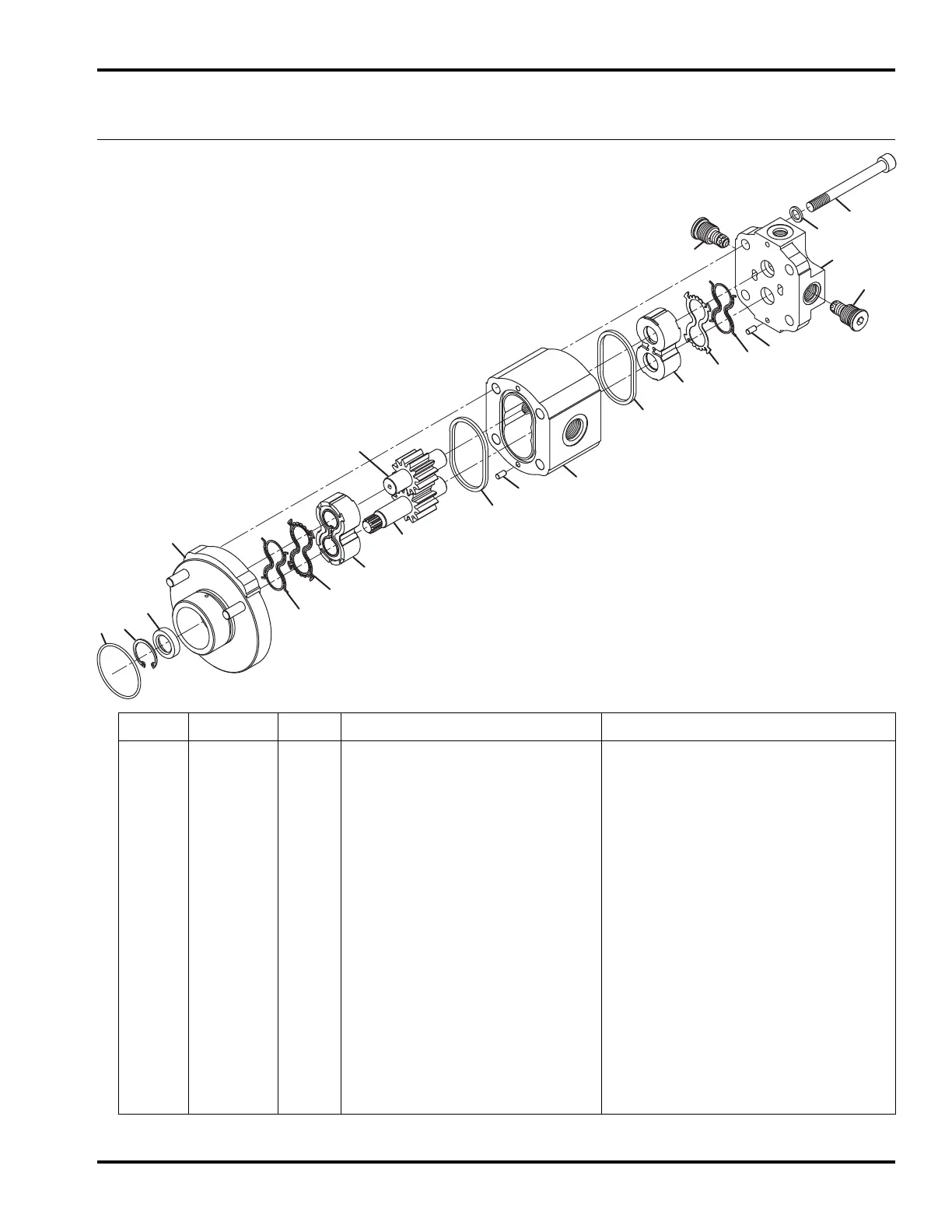

55.1 7” Reel Motor
Part Number 4311048
Serial No. All
