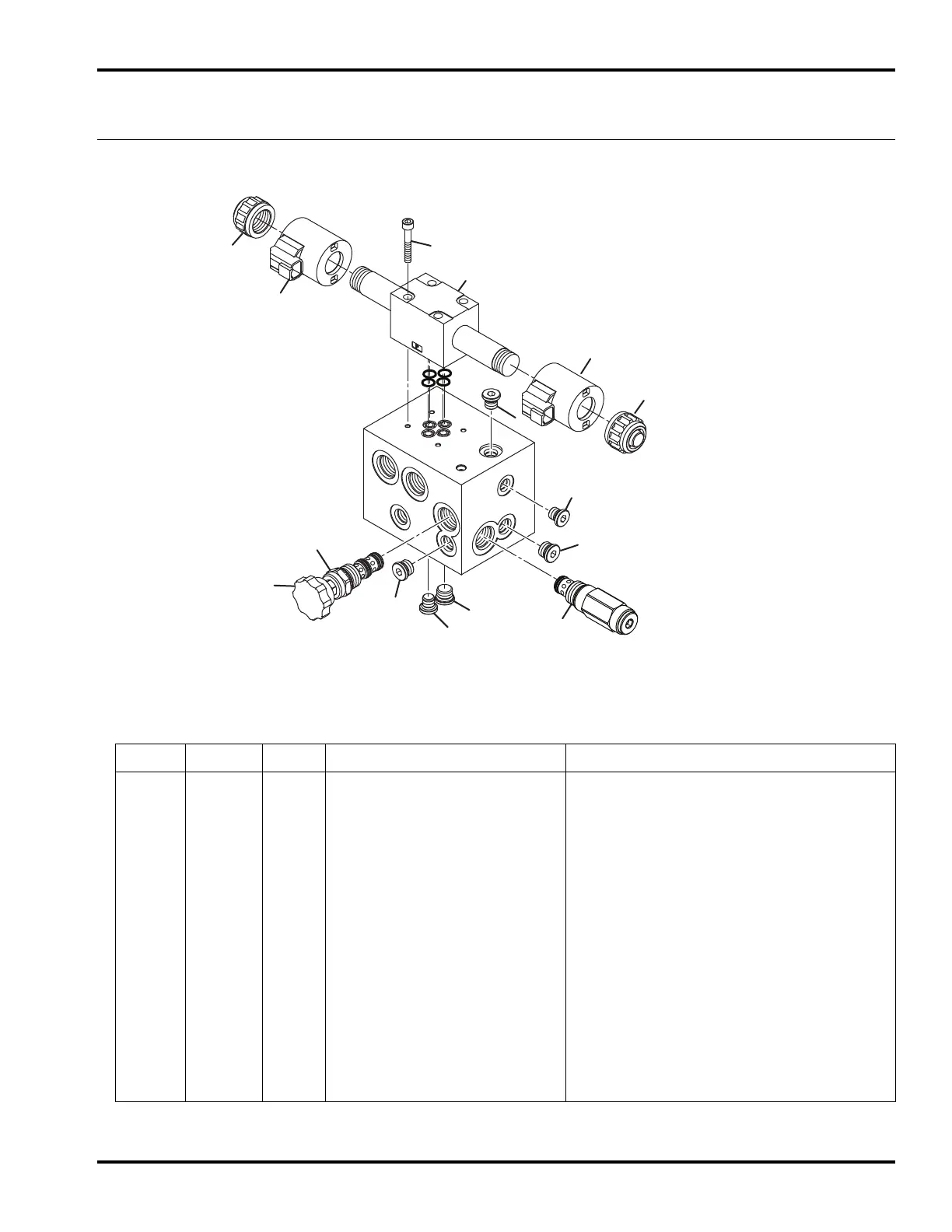

LIGHTWEIGHT FAIRWAY MOWER
53.1 Reel Valve
Part Number 4355571
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
5003080 1 Flow Control
5003579 1 • Flow Control Seal Kit
2 4136815 1 Solenoid Valve
339909 4 • O-Ring
3 4135552 1 Coil REFERENCE SOL2 and SOL6, See 62.1
4 5002157 3 Port Plug
5 5001065 3 Port Plug
6 4136814 2 Nut, Coil, with “O”-Ring
7 4105980 1 Knob, Flow Control
8 4143527 4 Bolt, D03 Service Short
9 4355569 1 Relief Valve, 3500 PSI
5003579 1 • Seal Kit
10 4200060 1 Coil REFERENCE SOL1 and SOL5, See 62.1
