File Version: 1.3 / JAKA MiniCab Hardware User Manual
5.2.2.3

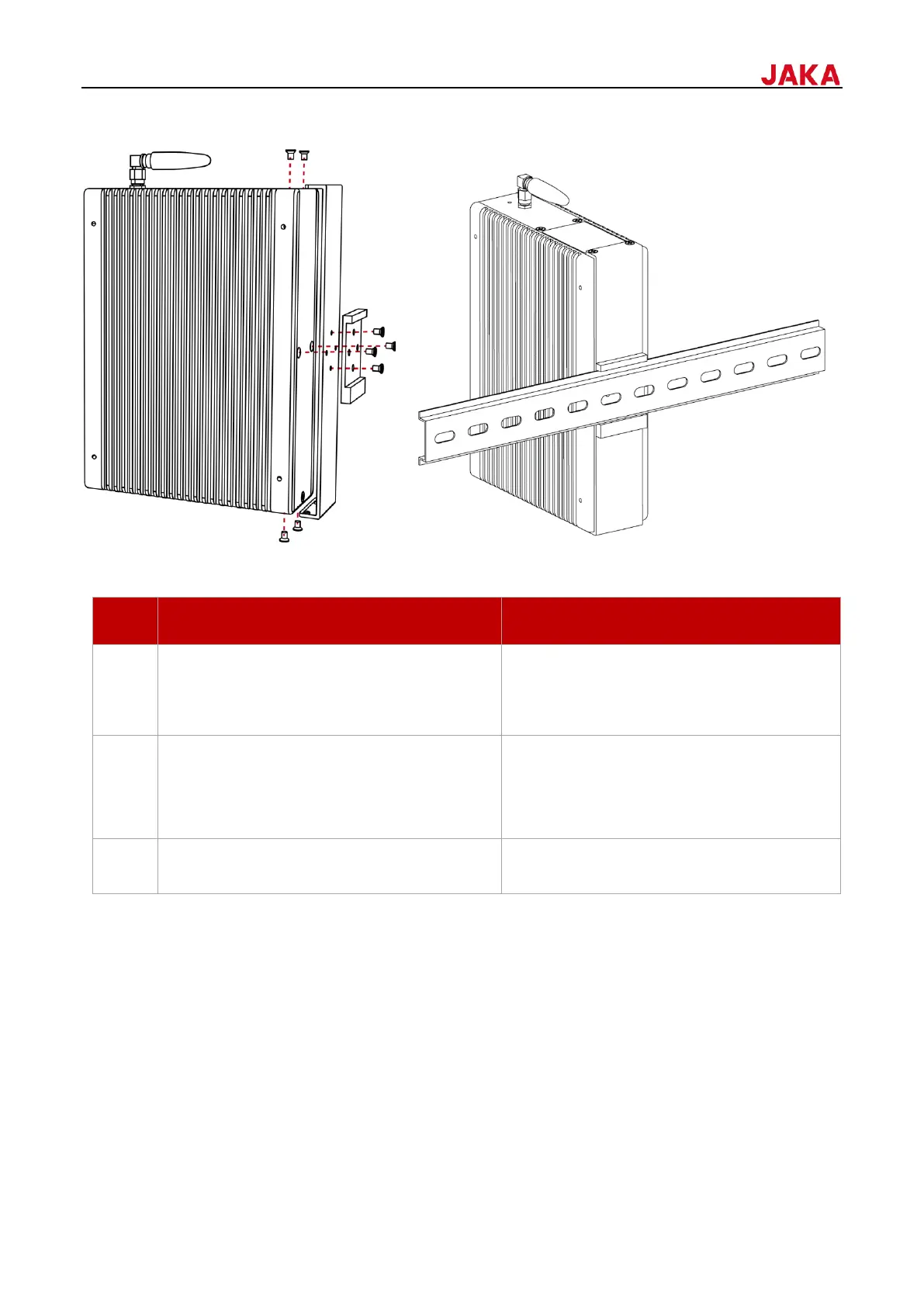

The rail mounting accessories and rail clamp are optional accessories. If you need to mount MiniCab on the
guide rail, please contact the JAKA technicians to acquire these accessories. The mounting steps are as follows:
Align the mounting holes on the rail mounting
accessories with the four mounting holes on the
side panels of the control cabinet, then use
screws to secure them together.
Screw type: M3
Screw quantity: 4 pcs
Tightening torque: 0.6-0.8 Nm (5.31-7.08 Ibf in)
Align the mounting holes on the rail clamp with
the four mounting holes on the rail mounting
accessories, then use screws to secure them
together.
Screw type: M3
Screw quantity: 4 pcs
Tightening torque: 0.6-0.8 Nm (5.31-7.08 Ibf in)
Mount the MiniCab with the rail mounting
accessories onto the guide rail.
