J&M 620 - Hub and Spindle Assembly; Non-Scale Hub & Spindle Components

17
Description Part No.
1 W-881 Hub Assembly Complete with 3/4” Studs and Nuts (Less Seal and Spindle) JM0050402
2 1”-8 Gr2 Z Centerlock Hex Nut JM0002149
3 1”-8 x 7” Gr5 Z Hex Bolt JM0016689
4 Spindle, 4-1/2” x 30-1/2” for Standard Axle (525-875) JM0018794
5 Seal (4-1/4” ID, 6” OD) for Hub (CR-43771) JM0018955
6 Large Bearing (HM218248) JM0018849
7 Large Race (HM218210) JM0018848
8 W-881 Hub with Large and Small Races, 3/4” Studs & Nuts (11.13 Pilot) JM0020510
9 Wheel Stud (3/4”-16 x 1-3/4”) 913564 JM0018957
10 Wheel Nut 3/4”-16 JM0018958
11 Small Race (HM212011) JM0018854
12 Small Bearing (HM212049) JM0018852
13 2-1/8” ID, 3-3/4” OD Flat Washer (3/16”) JM0015900
14 2”-12 Gr5 Z Castle Hex Nut (912973) JM0015899
15 3/8” x 2-3/4” Z Roll Pin (905945) JM0018956
16 Dust Cap 6-1/4” OD (for W-881 & W-891 Hub) (909921) JM0018954
17 1/4”-20 x 1” Gr5 Z Hex Bolt JM0002095

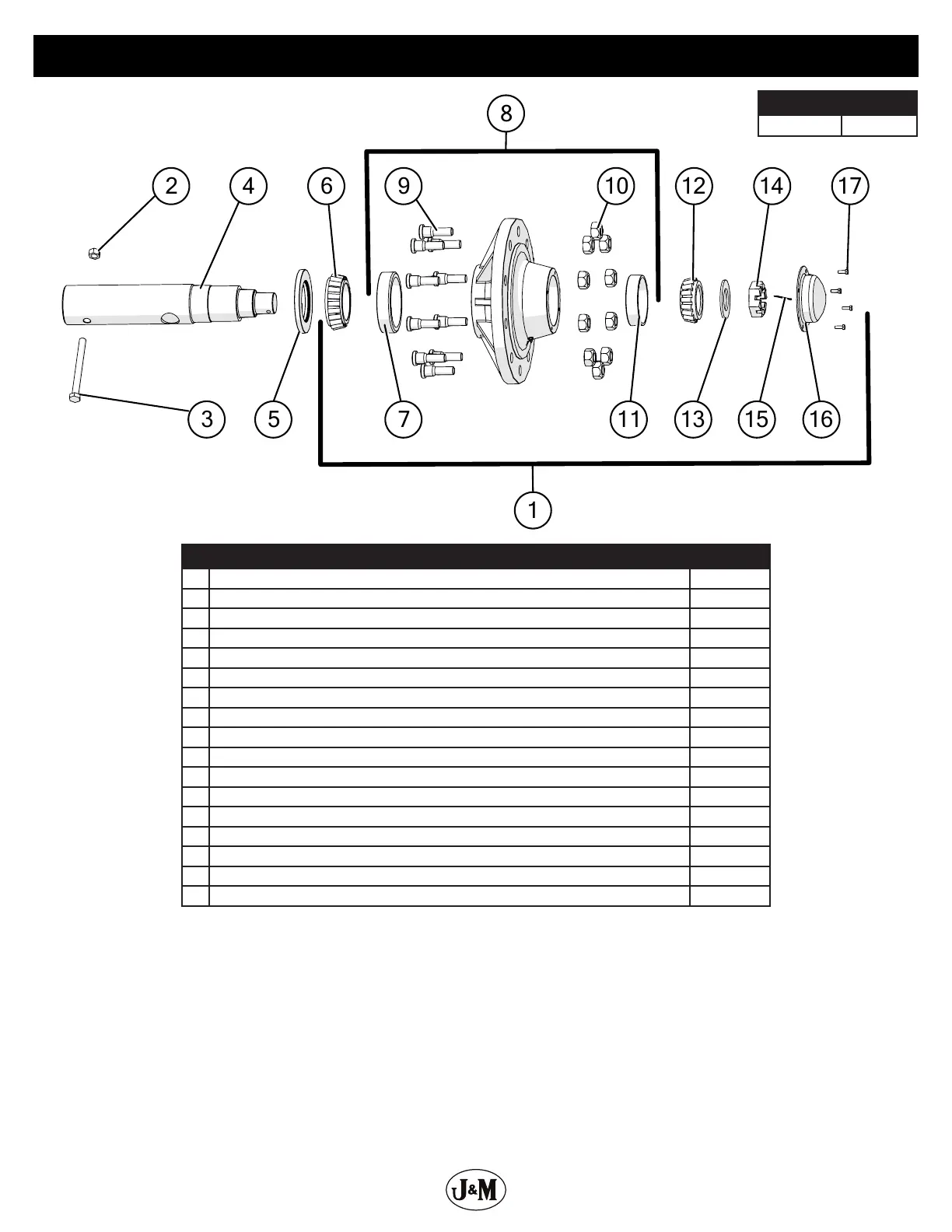

Non-Scale Hub & Spindle Assembly
Torque Values
3/4" Studs 400 Ft.-Lbs.
8
2 4
5
6
3
9
7 15
10
1
1311
12 14
16
17
