J&M 620 - Ladder Assembly; Ladder Component Identification

27

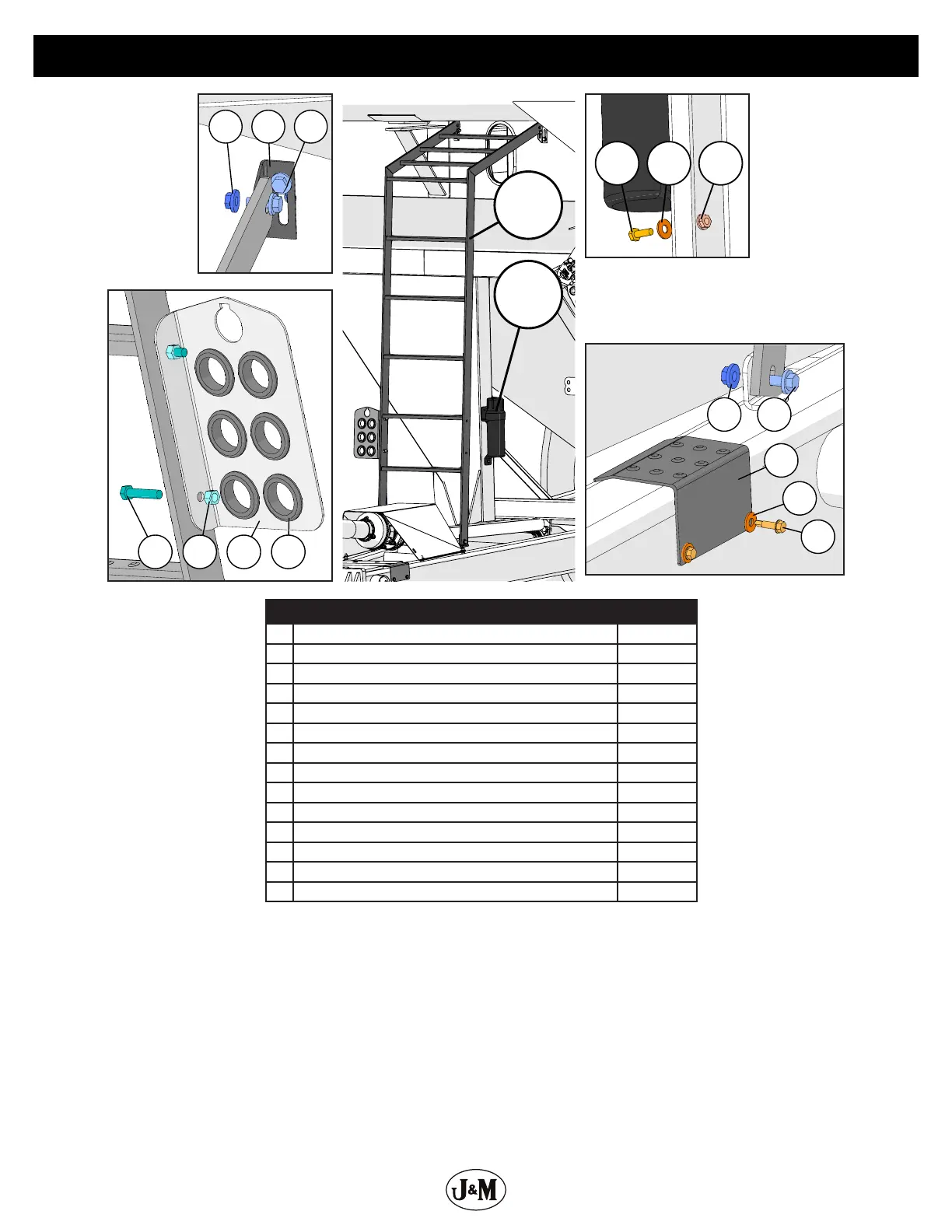

Ladder Assembly
Description Part No.
1 Ladder with 3 Rung Platform (525-875) JM0000262
2 Operator’s Manual Canister JM0010115
3 3/8”-16 Gr5 Z SF Hex Nut JM0002152
4 Universal Ladder Bracket JM0016922
5 3/8”-16 x 1” Gr5 Z SF Hex Bolt JM0002092
6 3/8”-16 x 1-3/4” Gr5 Z Hex Bolt JM0002097
7 3/8”-16 Gr2 Z Centerlock Hex Nut JM0001512
8 Hose Holder Bracket for Standard Grain Cart (HHB-1C) JM0012711
9 Rubber Grommet (1-1/2” ID, 2-1/8” OD, 3/16” Gap) JM0016924
10 Small Step on Grain Cart Frame JM0028444
11 1/4” ID, 3/4” OD Z Flat Washer JM0003090
12 1/4” x 1” Self Tapping Screw JM0001716
13 1/4”-20 x 3/4” Gr5 Z Hex Bolt JM0001507
14 1/4”-20 Z SF Hex Nut JM0001630
2
1
43 5
6 7 8 9
3 5
11
12
10
1113 14
