J&M 620 - Scale System; 3-Point Scale System Components

33
Description Part No.
1 Hitch Block Reducer (Sleeve) (2-7/8” to 2-1/2”) JM0018258
2 2-1/2” Hitch Weigh Bar (Digi-Star) (3/4” & 1” Holes) (250WB) JM0024207
3 2-1/2” Hitch Weigh Bar Weldment Reciever (WBW-1) JM0024208
4 1”-8 x 5-1/2” Gr5 Z Hex Bolt JM0002110
5 3/4”-16 x 3” Gr8 Z Hex Bolt JM0018542
6 3/4” Z Lock Washer JM0018544
7 1”-8 Gr2 Z Centerlock Hex Nut JM0002149
8 GT 400 Digi-Star Scale Display Monitor JM0019040
8 GT 560 Digi-Star Scale Display Monitor JM0044177
9 1/4”-20 x 3/4” Gr5 Z Hex Bolt JM0001507
10 GT 400 Scale Monitor Display Bracket JM0000361
10 GT 560 Scale Monitor Display Bracket JM0046976
11 3/8”-16 x 1” Gr5 Z SF Hex Bolt JM0002092
12 3/8”-16 Gr5 Z SF Hex Nut JM0002152
13 8’ Cable from J-Box to Indicator (Digi-Star) JM0047238
14 Digi-Star 6-Point Junction Box (JB-5) JM0019038
15 5/8”-11 Gr2 Z Centerlock Hex Nut JM0002146
16 3-3/4” ID x 4-1/2” OD x 9-3/8” Adapter Pipe Tubing (ATP-375-GS) JM0021453
17 3-3/4” Digi-Star Weigh Spindle (375WS) JM0021451
18 5/8”-11 x 7” Socket Head Cap Screw JM0050413
19 Seal (3-3/4” ID, 6” OD) for Hub with Scales (37605SA) JM0021456

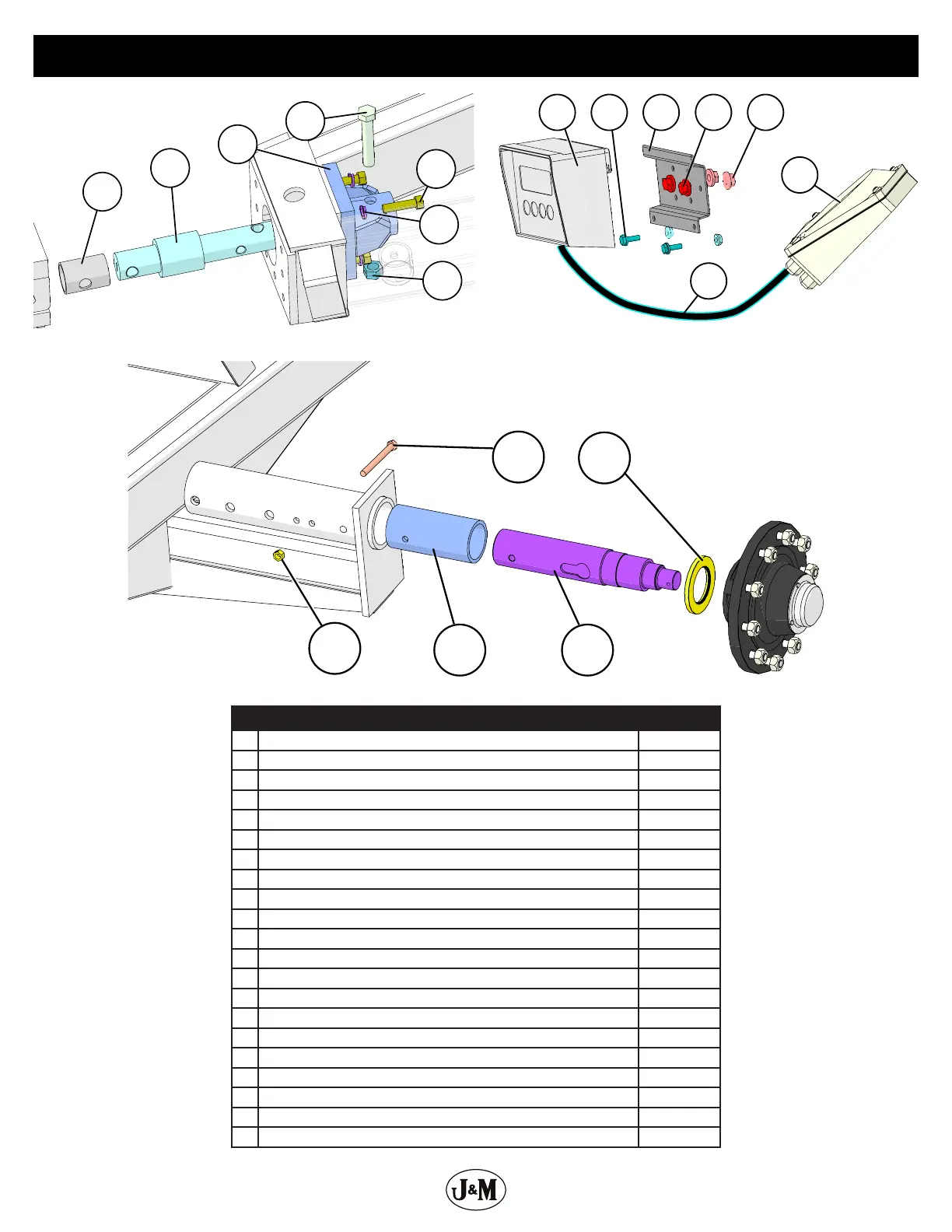

3-Point Scale System
18
16
15
17
19
9 10 1211
13
8
14
3
5
2
6
1
7
4
