J&M 620 - Hydraulic System; Hydraulic Hoses and Cylinders Diagram

28

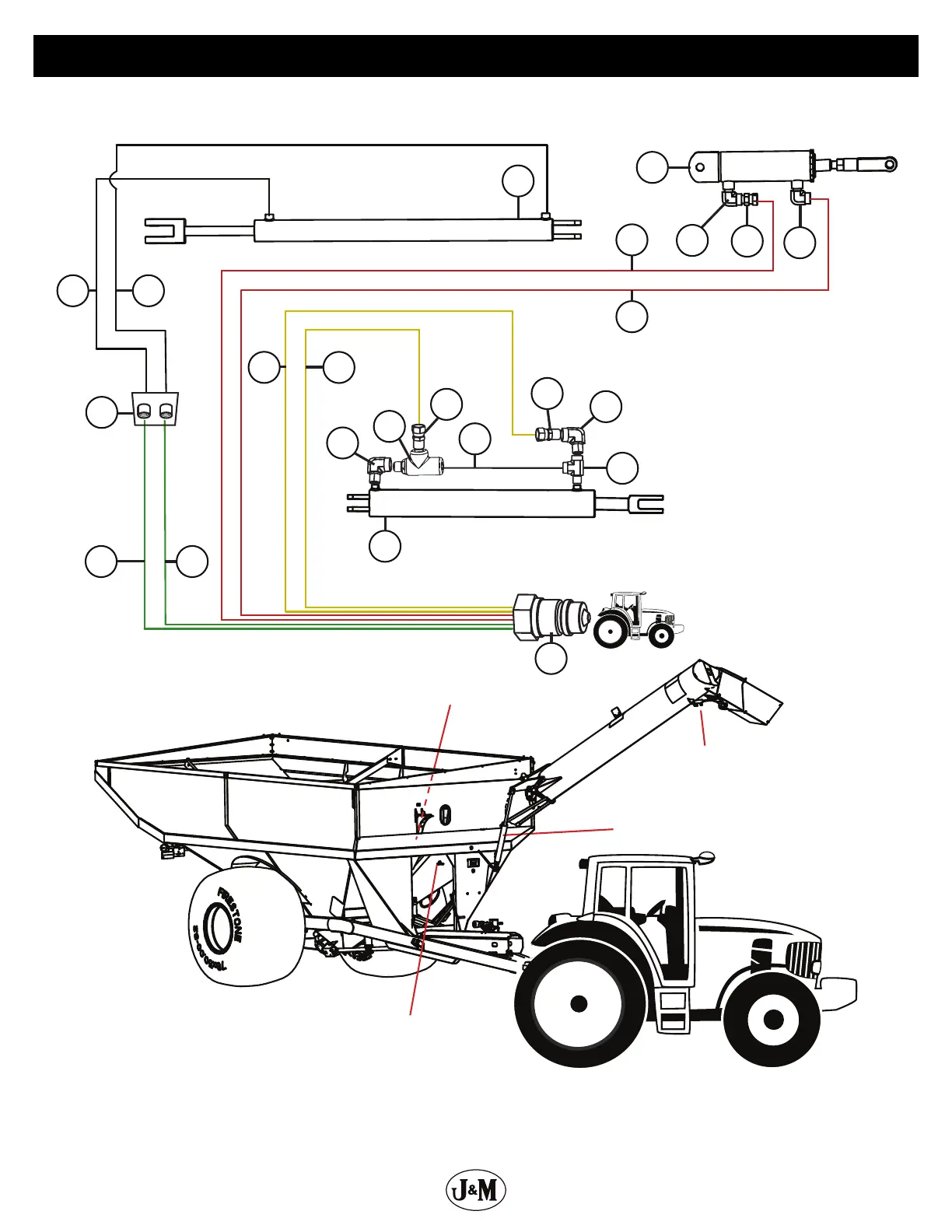

Hydraulic Hoses & Cylinders
1
4
4
5
14
9
12
15
11
3
3
2”x36” Hydraulic Cylinder
“Door Cylinder”
1-3/4”x4” Hydraulic Cylinder
“Tip Spout Cylinder”
2-1/2” x 24” Hydraulic Cylinder
“Fold Cylinder”
“Tip Spout Cylinder”
“Fold Cylinder”
“Door Cylinder”
8
13
10
6 7
16
10
2
*Couplers Welded to Shell
10
17
13
11
