J&M 620 - Auto-Gate Shut-Off System; Auto-Gate Shut-Off Assembly Components; Auto-Gate Shut-Off Wiring Schematic

32

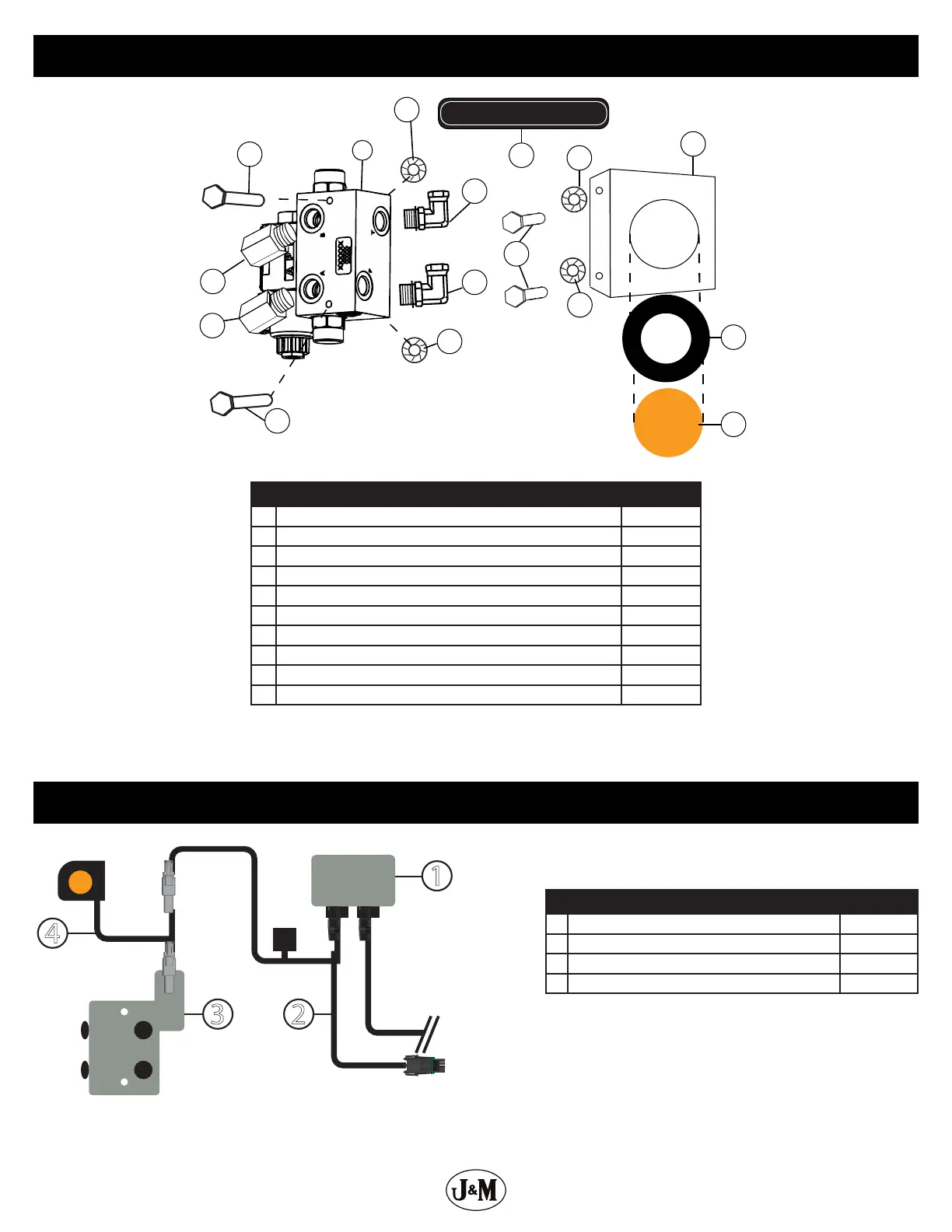

Auto-Gate Shut-O Assembly
Description Part No.
1 1/4”-20 x 3-1/2” Gr5 Z Hex Bolt JM0046621
2 1/4”-20 Gr5 Z SF Hex Nut JM0001630
3 Auto-Gate Hydraulic Valve JM0026247
4 1/2” Male ORB x 3/8” Female NPT Swivel; 90 Degree Elbow JM0027285
5 3/8” Female NPT x 1/2” Male ORB; Straight JM0034657
6 Auto Gate Active Decal JM0046612
7 3-1/2” Round LED Mount JM0034956
8 3-1/2” Round LED Grommet JM0001902
9 3-1/2” Amber Round LED Light JM0001895
10 1/4”-20 x 3/4” Gr5 Z SF Hex Bolt JM0001642
+12V LOAD
CELLS
AB
2 1
1 2
2 1
1 2
A
B
T
P
1
23
4
Relay
To Junction Box
Note: Mount the hydraulic valve after all
the hoses are attached but not tightened.
This will ensure the hoses will reach.
To Mating Connector from
7-Prong Front Grain Cart Harness
(This Supplies +12V Power)
Mounted Light
Description Part No.
1 GT 560 Digi-Star Scale Display Monitor JM0044177
2 Auto-Gate Harness (Standard GT 560) JM0026813
3 Auto-Gate Hydraulic Valve JM0026247
4 Auto Gate Light Harness (LED Light “Y” Cable) JM0046624
Auto-Gate Shut-O Wiring Schematic
1
2
3
AUTO GATE ACTIVE
4
5
6
7
8
9
10
2
2
2
4
5
1
