General Information
TO THE OWNER:
The purpose of this manual is to assist you in operating and maintaining your grain cart in a safe manner. Read it carefully. It furnishes
information and instructions that will help you achieve years of dependable performance and help maintain safe operating conditions. If
this machine is used by an employee or is loaned or rented, make certain that the operator(s), prior to operating:
1. Is instructed in safe and proper use.
2. Reviews and understands the manual(s) pertaining to this machine.
Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to equipment. The terms
CAUTION, WARNING and DANGER are used in conjunction with the Safety-Alert Symbol (a triangle with an exclamation mark) to indicate
the degree of hazard for items of personal safety. When you see this symbol, carefully read the message that follows and be alert to the
possibility of personal injury or death.
DANGER
WARNING
CAUTION
This Safety-Alert symbol indicates a hazard and means
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury,
and includes hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury.
Indicates that failure to observe can cause damage to equipment.
Indicates helpful information.
IMPORTANT
NOTE

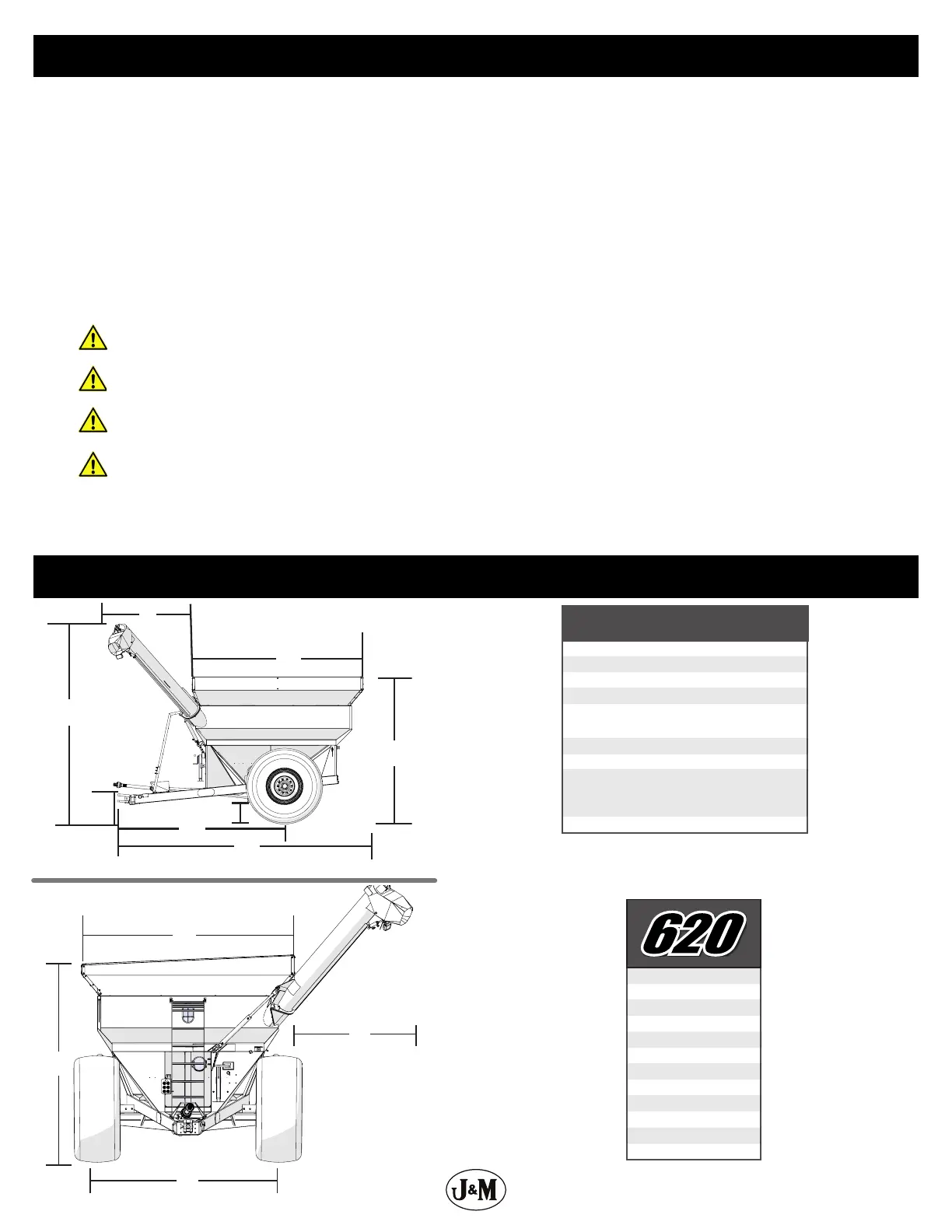

Specications and Dimensions
SPECIFICATIONS
Single Wheel Option
Capacity
Auger, One Vertical
Unload Time (minutes)
Wheels (2)
Tires (2)
Hubs (2)
Spindles (2)
Tongue Weight
Empty
Loaded
Total Weight (approx.)
620 Bushels
14”
3.7 Minutes
21x32 or 27x32
24.5x32, 30.5x32, or
IF800/60R32
10 Bolt
4-1/2” Diameter
1,000 lbs.
2,100 lbs.
6,950 lbs.
C
D
F
A
I
H
E
B
A
B
C
D
E
F
G
H
I
J
K
L
1’-5”
12’-10”
6-5”
13’-2”
18’-10”
11’-11”
7’-5”
11’-10”
1’-6”
10’-0”/10’-4”/12’-0”
11’-10”
11’-4”
K
L
J
G
