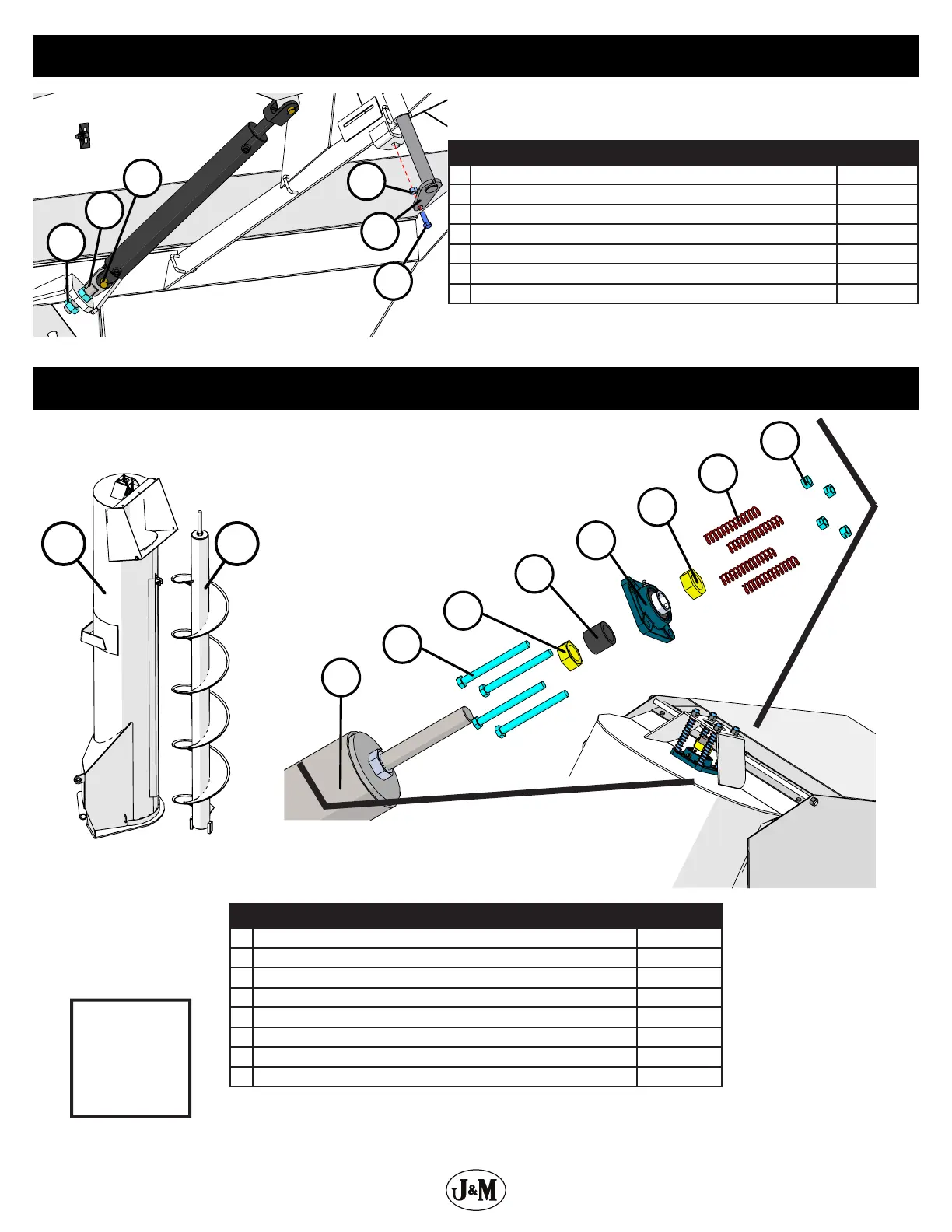

J&M 620 - Top Auger Assembly; Top Auger Linkage Component Identification; Top Auger Component Identification

24
Description Part No.
1 1.25-7 Gr5 Z Hex Nut JM0001700
2 HD Adjustable Pac Man Weldment JM0021417
3 14” Top Auger Hinge Pin Assembly (1-1/4” x 14-3/4”) (114-PIH) JM0026501
4 1-7/8” OD x 1/2” ID Large Washer (12-W) JM0026504
5 1/2”-13 x 1-1/4” Gr5 Z Hex Bolt JM0001513
6 1/2” Gr2 Z Lock Washer JM0019021
7 1” x 3” Clevis Pin with Cotter Pins JM0019407
Description Part No.
1 14” Upper Auger Tube Assembly (525, 620) (UAH-14-5) JM0024444*
2 14” Upper Flighting Weldment 2-1/2” Pipe (114”) R/H (UF-14-F6R) JM0024475
3 1/2”-13 x 5-1/2” Gr5 Z Hex Bolt JM0001498
4 1-1/4”-12 PN Gr5 Hex Jam Nut JM0001606
5 Top Auger Collar 1-1/2” Long (1-3/4” OD) JM0016920
6 1-1/4” Flange Bearing, 4 Hole (GRAF-206) JM0018560
7 4-1/2” Compression Spring (CMSUAA-4) JM0018559
8 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511
4
1
2
3
6
5
Top Auger Linkage
1 2
Top Auger Assembly
2
3
4
5
4
6
7
8
When requesting an item with color, end the part
number with -R, -B, -G, -Y, or -BLK. (e.g. JM0000000-R)
*-R = Red
*-B = Blue
*-G = Green
*-Y = Yellow
*-BLK = Black
