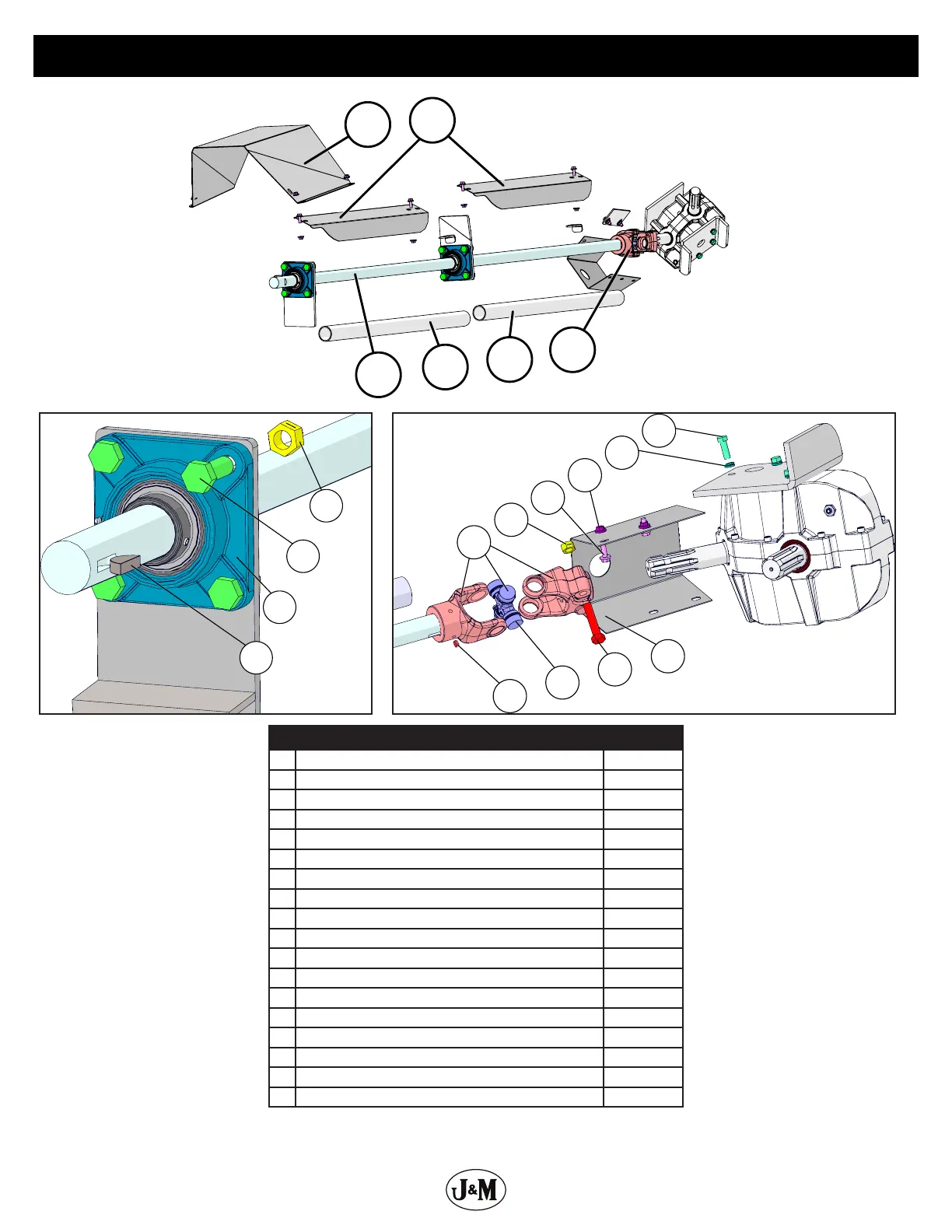

J&M 620 - Driveline Assembly; Driveline Component Identification

21
Driveline Assembly
Description Part No.
1 Guard for PTO-Drive Shaft (Step Shield) (GPDS-114) JM0013388
2 Driveline Shield (34”) (GDS-114-F) JM0012692
3 Drive Shaft 88” x 1-1/4” (DS-114-F) JM0024460
4 1-1/2” x 33” PVC JM0039465
5 1-1/2” x 37” PVC JM0039464
6 14R U-Joint Assembly (525, 620) (M-6635-A) JM0024318
7 5/16” x 1-1/4” Half Moon Key (516114) JM0024326
8 1-1/4” Flange Bearing, 4 Hole (GRAF-206) JM0018560
9 5/8”-11 x 1-3/4” Gr5 Z Hex Bolt JM0016681
10 5/8”-11 Gr2 Z Centerlock Hex Nut JM0002146
11 3/8”-16 x 1” Gr5 Z SF Hex Bolt JM0002092
12 3/8”-16 Gr5 Z SF Hex Nut JM0002152
13 1/2” Gr2 Z Lock Washer JM0019021
14 1/2”-13 x 1-1/2” Gr5 Z Hex Bolt JM0002100
15 3/8”-16 x 1/2” Hex Head Set Screw JM0019044
16 14R Cross Kit Weasler (PTO or U-Joint) (03-10134) JM0024310
17 5/8”-11 x 3” Gr5 Z Hex Bolt JM0002105
18 U-Joint Shield JM0012698
6
5
4
2
3
1
10
8
9
7
18
14
13
10
11
12
6
16
17
15
