J&M 620 - Page 7

7

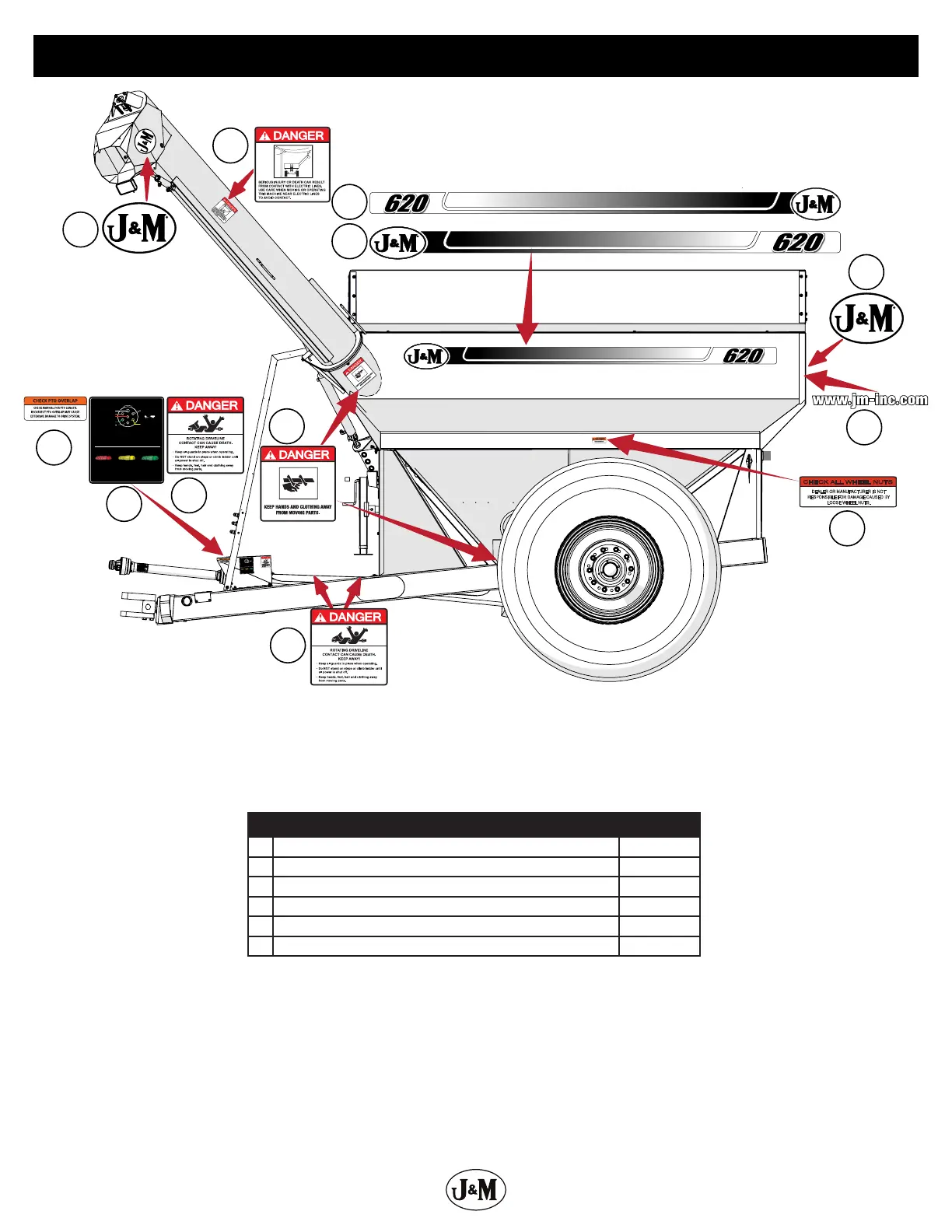

Decals
22
17
21
21
13
19
8
9
18
CHECK ALL WHEEL NUTS
DEALER OR MANUFACTURER IS NOT
RESPONSIBLE FOR DAMAGE CAUSED BY
LOOSE WHEEL NUTS.
Ground
Rear Of Plug
Notes
Grain Cart Light Harness
Tail/Running Lights
 +12V Output
Min. 15A Fuse

Flow Control Spout/
Implement Lights
Left Turn & Hazards
Right Turn & Hazards
N/A
 The follow equipment will need the
+12V Output to function properly.
• Lock-N-Load Flighting Protection
• Scale Equipment
• Electric Roll Tarp Charging System
 To activate the Flow Control Spout
Light, turn on your clearance or
implement lights and fully extend
auger to the unloading position.
Please refer to your tractors operators
manual for specic instructions.
Look for these icons in your tractor
Hydraulic Hoses
Hydraulic Requirements:
• 9 - 12 GPM
• Auto Gate (if equipped): Set Gate to continuously close. Refer to your tractors
operators manual for specic instructions.
Warning:
Hydraulic system parts and connections can contain high pressures which, if
suddenly and unexpectedly released, can cause serious injury or death.
GateAuger Fold/UnfoldFlow Control Spout
GC JM0041058
RED YELLOW GREEN
1
2
3
4
5
6
7
Ground
Rear Of Plug
Notes
Grain Cart Light Harness
Tail/Running Lights

+12V Output
Min. 15A Fuse

Flow Control Spout/
Implement Lights
Left Turn & Hazards
Right Turn & Hazards
N/A
 The follow equipment will need the
+12V Output to function properly.
• Lock-N-Load Flighting Protection
• Scale Equipment
• Electric Roll Tarp Charging System
 To activate the Flow Control Spout
Light, turn on your clearance or
implement lights and fully extend
auger to the unloading position.
Please refer to your tractors operators
manual for specic instructions.
Look for these icons in your tractor
Hydraulic Hoses
Hydraulic Requirements:
• 9 - 12 GPM
• Auto Gate (if equipped): Set Gate to continuously close. Refer to your tractors
operators manual for specic instructions.
Warning:
Hydraulic system parts and connections can contain high pressures which, if
suddenly and unexpectedly released, can cause serious injury or death.
Gate
Auger Fold/Unfold
Flow Control Spout
GC JM0041058
RED YELLOW GREEN
1
2
3
4
5
6
7
2
1
20
Description Part No.
17 620 Opposite Auger Side Stripe Kit JM0025939
18 620 Auger Side Stripe Kit JM0025938
19 Check PTO Overlap Decal JM0025435
20 Grain Cart Light Harness Decal (Standard Fold Carts) JM0041058
21 Danger, Rotating Driveline Decal JM0018036
22 Danger, Keep Hands and Clothing Away Decal JM0018035
