Page 9
ENGLISH
Jandy
®
Pro Series JE Heat Pumps
|
Installation and Operation Manual
It may be necessary to adjust water pressure
switch if a unit is installed below the water level.
See Section 5.6 for details on when and how to
adjust the pressure switch.
Each heat pump allows a maximum ow rate of
70 gpm (265 lpm) and requires a minimum of
20 gpm (76 lpm).

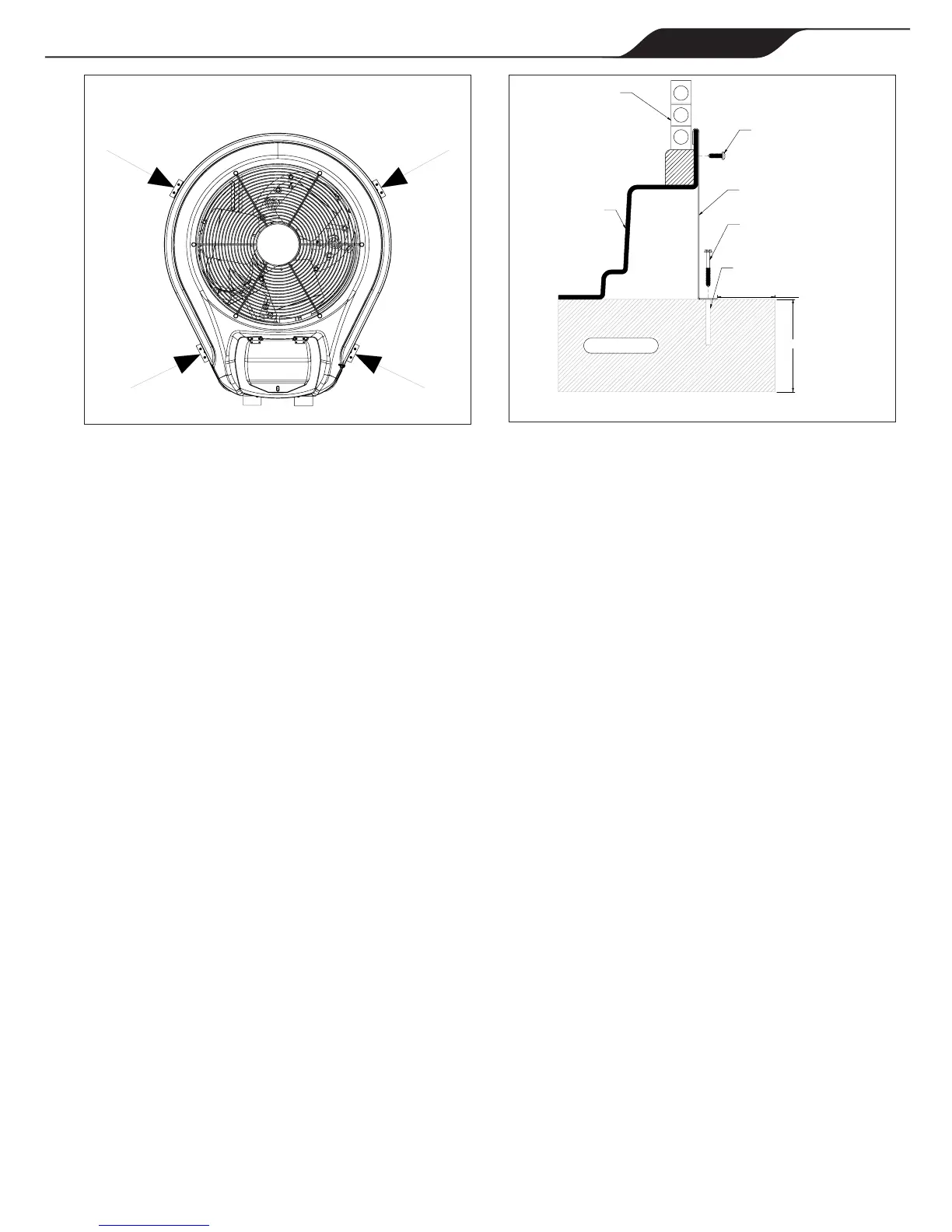

4" MIN
2 1/2" MIN
CONCRETE
EQUIPMENT PAD
1/4" X 1 3/4"
GALVANIZED OR PLATED
CONCRETE SCREW
(MANUFACTURER PROVIDED)
HEAT PUMP
ANCHOR
BRACKET
3/16" DRILLED HOLE
#10 X 5/8"
STAINLESS STEEL SCREW
NOTE: DO NOT DRILL INTO
EVAPORATOR COIL TUBES
EVAPORATOR
COIL
HEAT PUMP
PLASTIC BASE
ATTACH ANCHOR BRACKETS
TO BASE OF HEAT PUMP
WHERE INDICATED
