Lid with
Locking
Ring
Seal

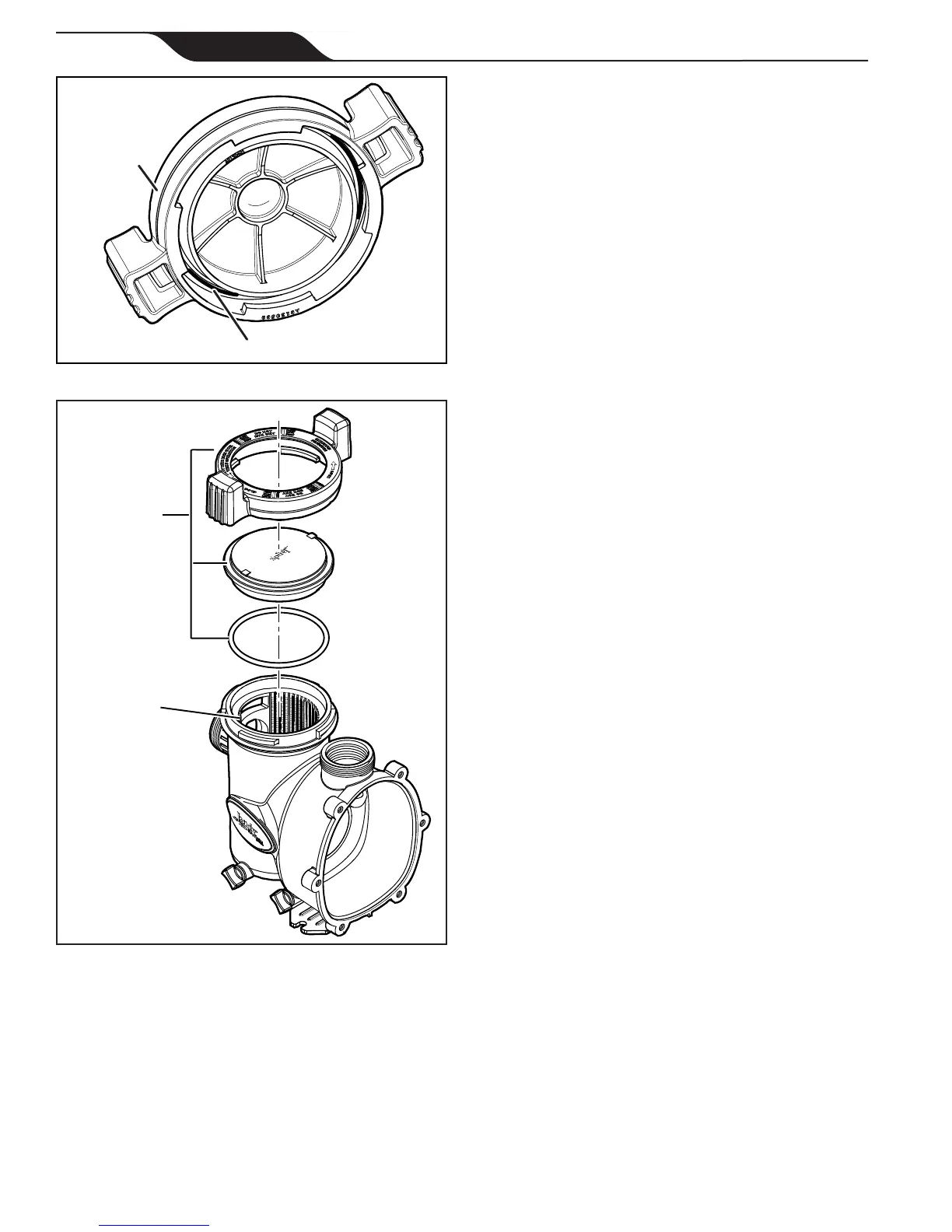

Figure 15. O-ring in Lid Assembly
Lid with
Locking
Ring
and
Seal
Pump
Debris
Trap
Basket
(Inside
Pump)
Figure 16. Exploded View of Pump
1. Release all pressure from the system and open the
lter pressure release valve.
2. Depending on the location of the pump, do one of
the following:
- If the pump is located below the water level of the
pool, open the lter pressure release valve to prime
the pump with water.
- If the pump is located above the water level of the
pool, remove the lid and ll the basket with water
before starting the pump.
3. Prior to replacing the lid, check for debris around
the lid o-ring seat. Debris around the lid o-ring seat
will cause air to leak into the system and will make
it difcult to prime the pump.
4. Hand-tighten the lid to make an air tight seal. Do
not use any tools to tighten the lid: hand-tighten
only. Make sure all valves are open and the unions
are tight.
5. Restore power to the pump. Then turn on the pump
by following the instructions in the appropriate
manual: Variable-Speed Controller Owner’s
manual, H0412200, AquaLink
®
RS Owner’s
Manual, 6593, AquaLink PDA Owner’s Manual,
H0572300, or AquaLink Z4 Owner’s Manual,
H0386600.
6. Once all the air has left the lter, close the pressure
release valve.
7. The pump should prime. The time it takes to prime
will depend on the elevation and length of pipe
used on the suction supply pipe. See Installation
Recommendations in Section 3.1 for proper
elevation and pipe size.
The default priming speed is 2750 RPM. The pump
will take approximately 14-15 minutes to prime at
this priming speed when the pump is located 10 feet
above the pool water. If priming speed is adjusted
to 3450 RPM, the pump should prime within 6
minutes at 10 feet above the water level.
NOTE The pump is NSF-certified as being able to prime at
heights up to 10 ft above the water level. However, to
achieve better self-priming, install the pump as close as
possible to the water level of the pool.
8. If the pump does not prime and all the instructions
to this point have been followed, check for a
suction leak. If there is no leak, repeat Steps 2
through 7.
9. For technical assistance, call Zodiac
®
Technical
Support at 800.822.7933. In Canada, call 1-888-
647-4004.

Jandy VS FloPro Series Specifications

General

Motor Type	Variable Speed
Voltage	115/230V
Control Interface	Digital
Motor Frame	56J
Plumbing Size	2 inches
