skimmer with an equalizer line installed. Check the
local codes for proper installation.
NOTE To prevent entrapment, the system must be built so
it cannot operate with the pump drawing water from only
one (1) main drain. At least two (2) main drains must be
connected to the pump when it is in operation. However, if
two (2) main drains run into a single suction line, the single
suction line may be equipped with a valve that will shut off
both main drains from the pump.
4. The piping must be well supported and not forced
together where it will experience constant stress.
5. Always use properly sized valves. Jandy Pro Series
Diverter Valves and Ball Valves typically have the
best ow capabilities.
6. Use the fewest ttings possible. Each additional
tting has the effect of moving the equipment
farther away from the water.
NOTE If more than ten (10) suction fittings are needed, the
pipe size must be increased.
7. Every new installation must be pressure tested
according to local codes.
Replacement of Existing Pump
Jandy Pro Series VS FloPro pumps can easily replace
several other pumps: the Hayward Super Pump,
Hayward Super II, Pentair SuperFlo, Pentair WhisperFlo,
Jandy Pro Series, PlusHP (PHP), Jandy Pro Series
MaxHP (MHP), Sta-Rite Dura-Glas, Sta-Rite Dura-Glas
II, Sta-Rite Dyna-Glas, Sta-Rite Max-E-Glas, Sta-Rite
Max-E-Pro, and Sta-Rite SuperMax.
To replace the Pentair WhisperFlo, Jandy Pro Series
PHP, or Jandy Pro Series MHP, use the VS FloPro’s
adjustable base. The VS FloPro base (and its spacers)
increase the total height of the pump and the height of
the suction side of the pump. See Table 2 and Figure 3.
Pump
Height
Suction
Side
Height
No Base Required
Hayward
®
Super Pump
®
Pentair
®
SuperFlo
®
Sta-Rite
®
SuperMax
®
Small Base
Hayward Super II™
Jandy PlusHP by Zodiac
®
Jandy Max HP by Zodiac
Small Base + Large Base
Sta-Rite Max-E-Pro
®
Sta-Rite Dura-Glas
®
Sta-Rite Dura-Glas II
Sta-Rite Max-E-Glas
®
Small Base with Spacers
Pentair
®
WhisperFlo
®
Sta-Rite
®
Dyna-Glas™
VS FloPro with Small Base
Option
1
Option
2
Option
3
Option
4*
* Optional
(Order R0546400)

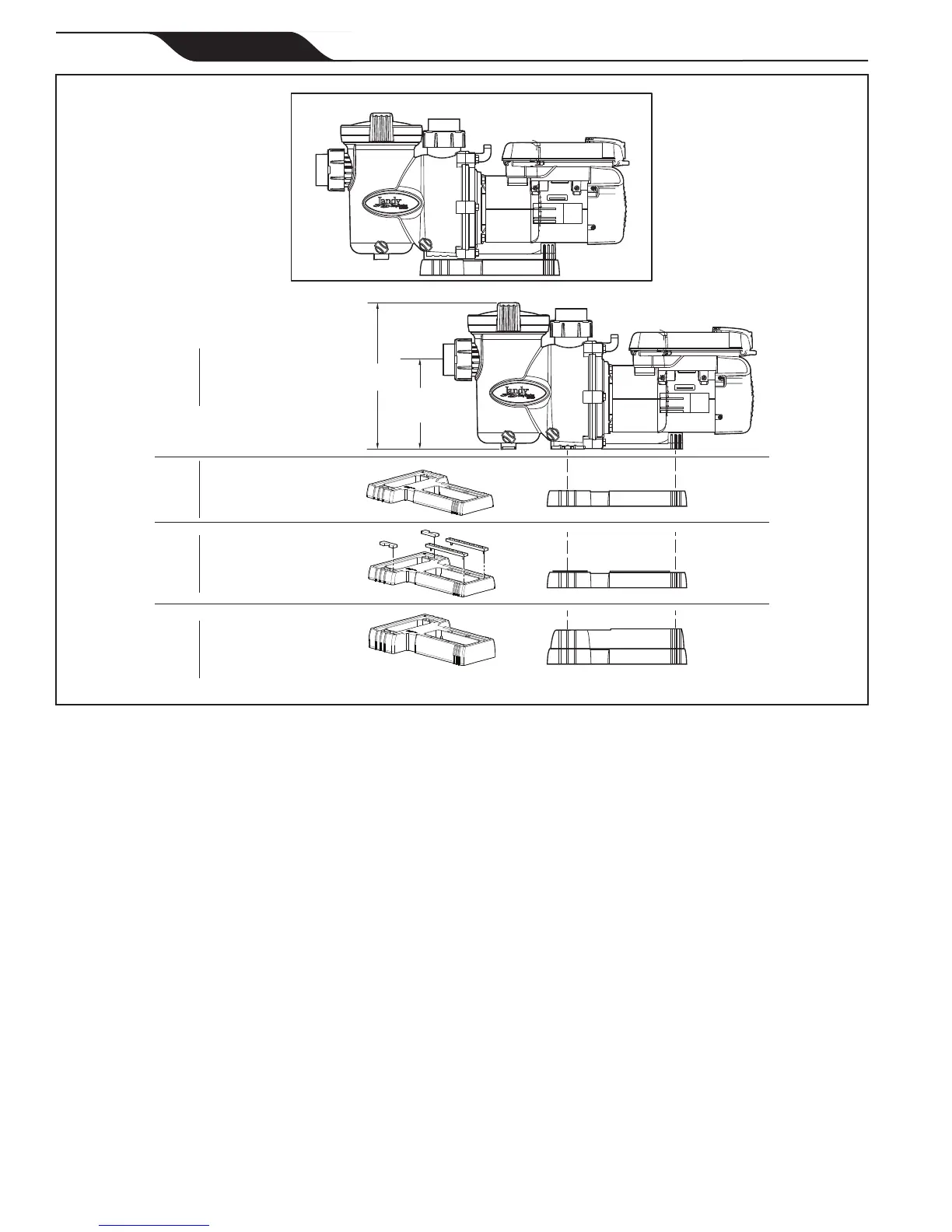

Figure 3. VS FloPro Pump and Base Options

Jandy VS FloPro Series Specifications

General

Motor Type	Variable Speed
Voltage	115/230V
Control Interface	Digital
Motor Frame	56J
Plumbing Size	2 inches
