Janome MO200 - Replacing DC Motor and Adjusting Belt Tension

27
MO200
5200QDC

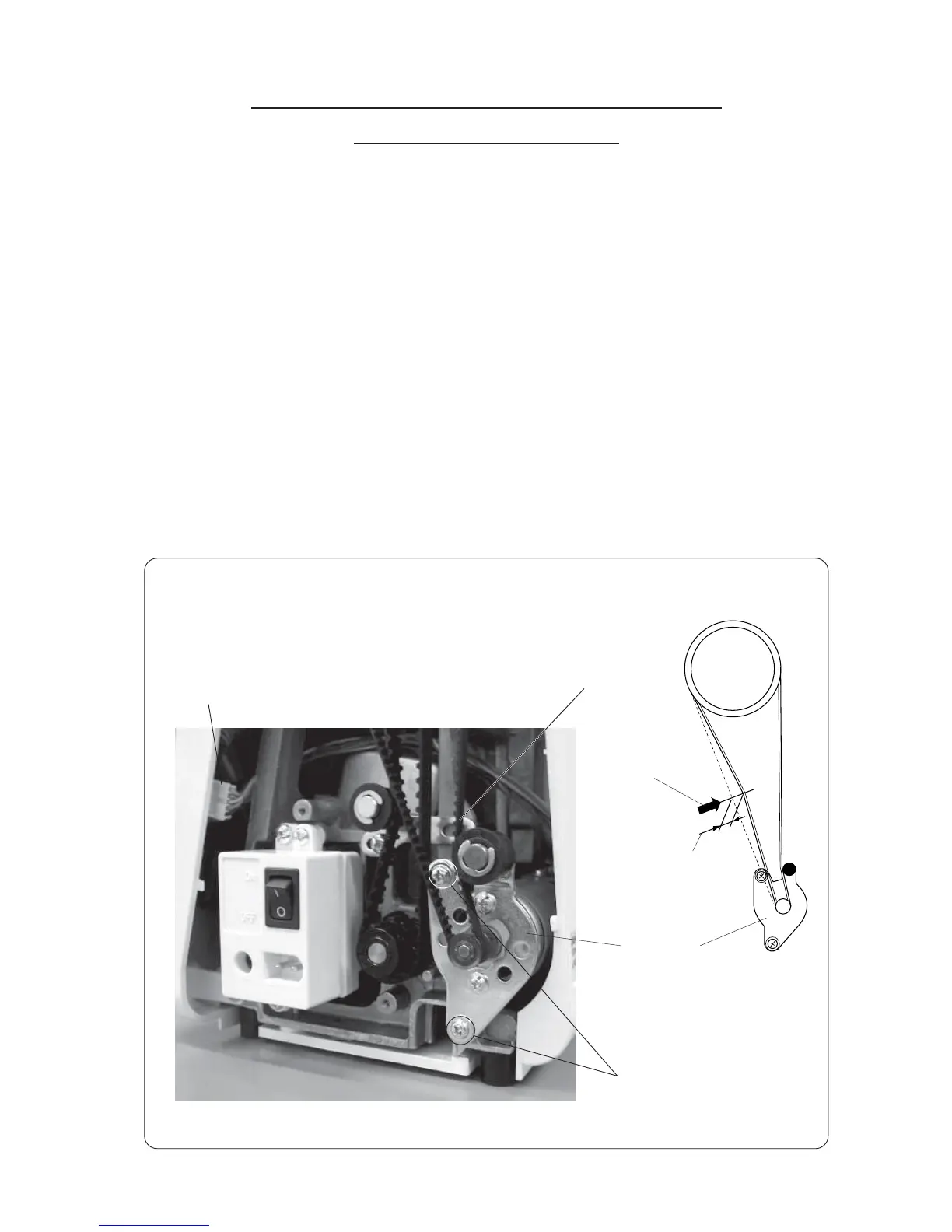

REPLACING DC MOTOR AND ADJUSTING
MOTOR BELT TENSION
TO REMOVE:
1. Remove the belt cover (see page 4).
2. Unplug the DC motor connector.
3. Remove the two setscrews, then remove the DC motor and belt.
TO INSTALL:
4. Lightly tighten the two screws.
5. Put the motor belt on the pulley and adjust the belt deflection to about 7 to 9 mm by pressing the middle
of the motor belt with your finger (with approximately 300 grams of pressure). Then, tighten the screws
firmly.
6. Install the belt cover.
Pressure 300g
Belt deflection:
7~9 mm
DC motor
Setscrews (2)
Belt
DC motor connector
