28
MO200
5200QDC

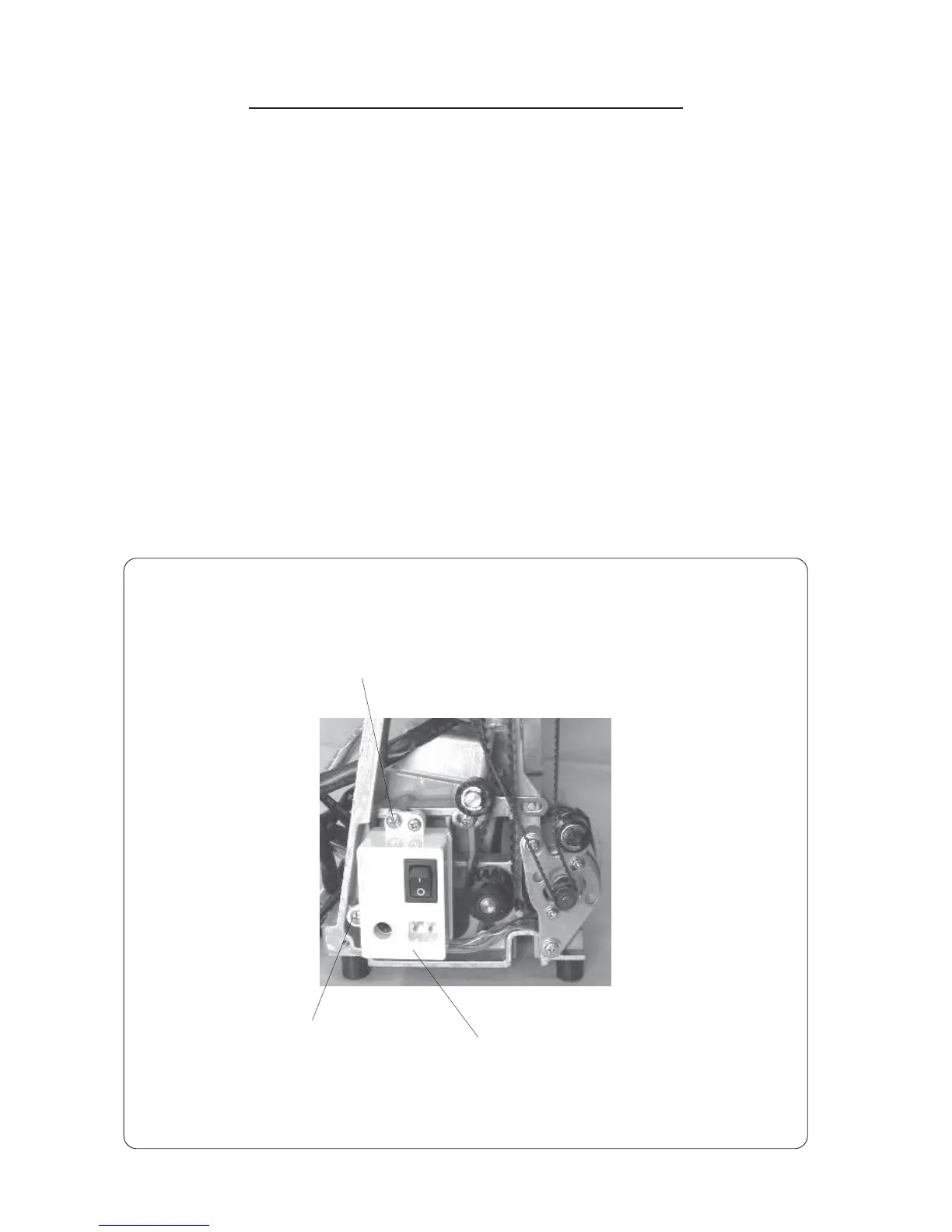

REPLACING MACHINE SOCKET (UNIT)
REPLACING THE MACHINE SOCKET
TO REMOVE:
1. Remove the front and rear cover (see page 5 and 6).
2. Remove the two screws and remove the machine socket.
TO INSTALL:
3. To install the machine socket, follow the above procedure in reverse.
NOTE
Pull out the cord in front of the arm to prevent it from contacting with the lower shaft or other moving parts,
and secure it to the feed motor cord with a binder.
Setscrew
Setscrew
Machine socket (unit)
To Next Page
