Janome MO200 - Replacing the Feed Stitch Motor

31
MO200
5200QDC
REPLACING THE FEED MOTOR
TO REMOVE:
1. Remove the base cover (see page 3).
2. Remove the front cover (see page 5).
3. Disconnect the connector from the board "A".
4. Remove the snap ring (E-3).
5. Remove the two setscrews (A), (B) and remove the feed motor.
TO INSTALL:
6. To install the feed motor, follow the above procedure in reverse.
NOTE
Adjust the stretch stitch pattern feed balance (see page 16).

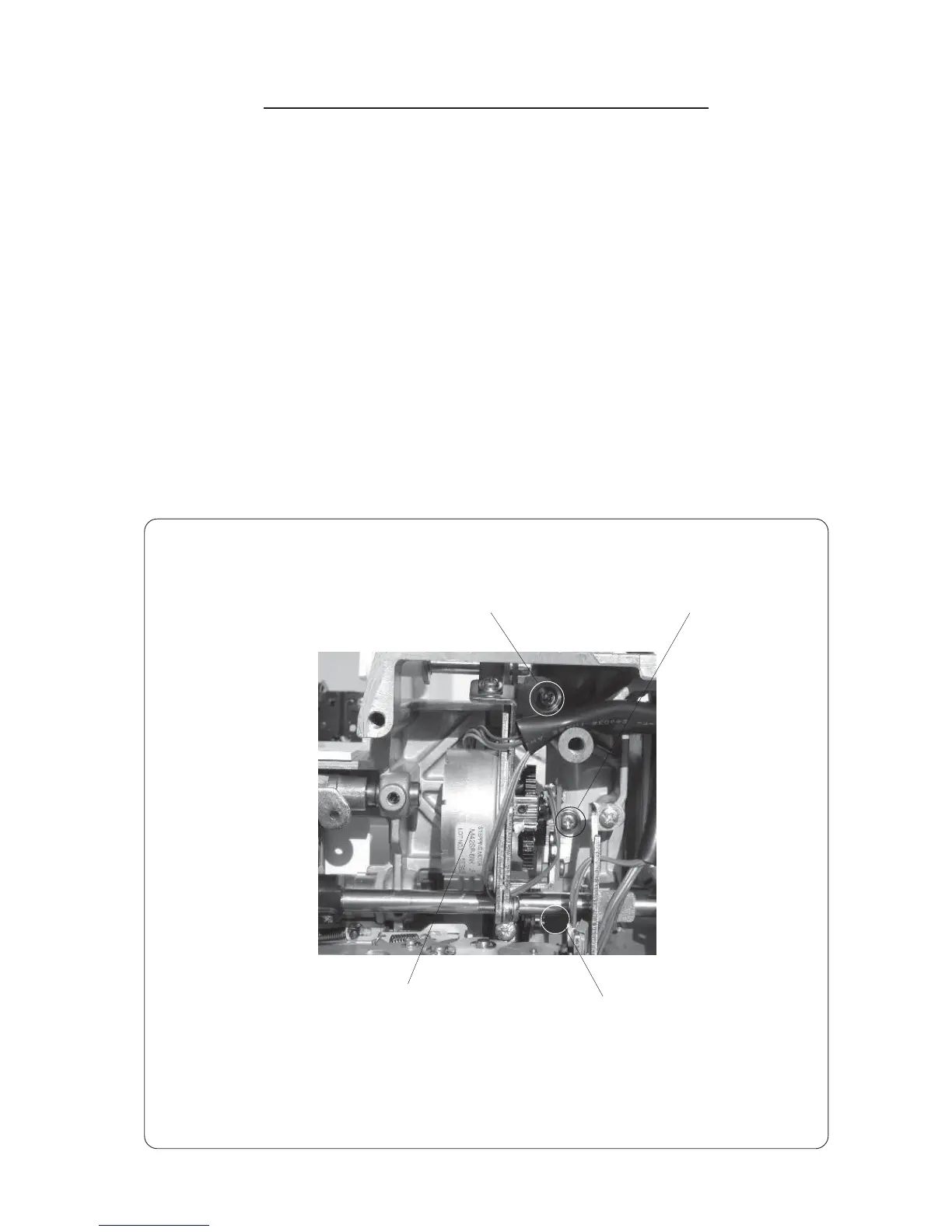

REPLACING THE FEED STITCH MOTOR
Snap ring (E-3)
Setscrew (A)
Setscrew (B)
Feed motor (unit)
