29
MO200
5200QDC
REPLACING THE TRANSFORMER
TO REMOVE:
1. Remove the board "A" (see page 24).
2. Remove the two setscrews and remove the transformer.
TO INSTALL:
3. To install the transformer, follow the above procedure in reverse.
NOTE
Place the rear end of the transformer on the transformer support.
Slide the two transformer wire tubes to the side of transformer and secure them to the zigzag stepping
motor wire so they will not come in contact with any moving parts.

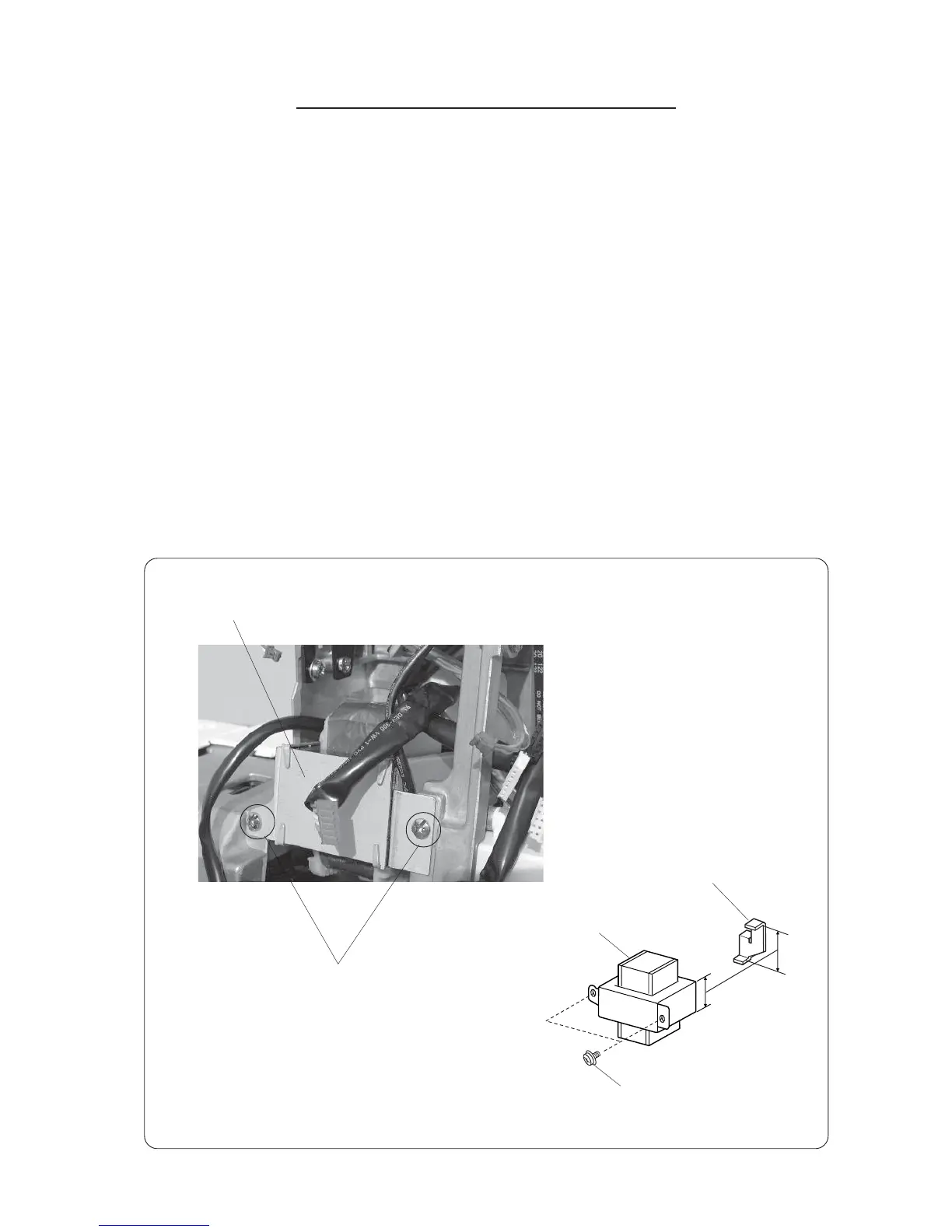

REPLACING THE TRANSFORMER
Transformer
Setscrew
Setscrew
Transformer
Transformer support
