42

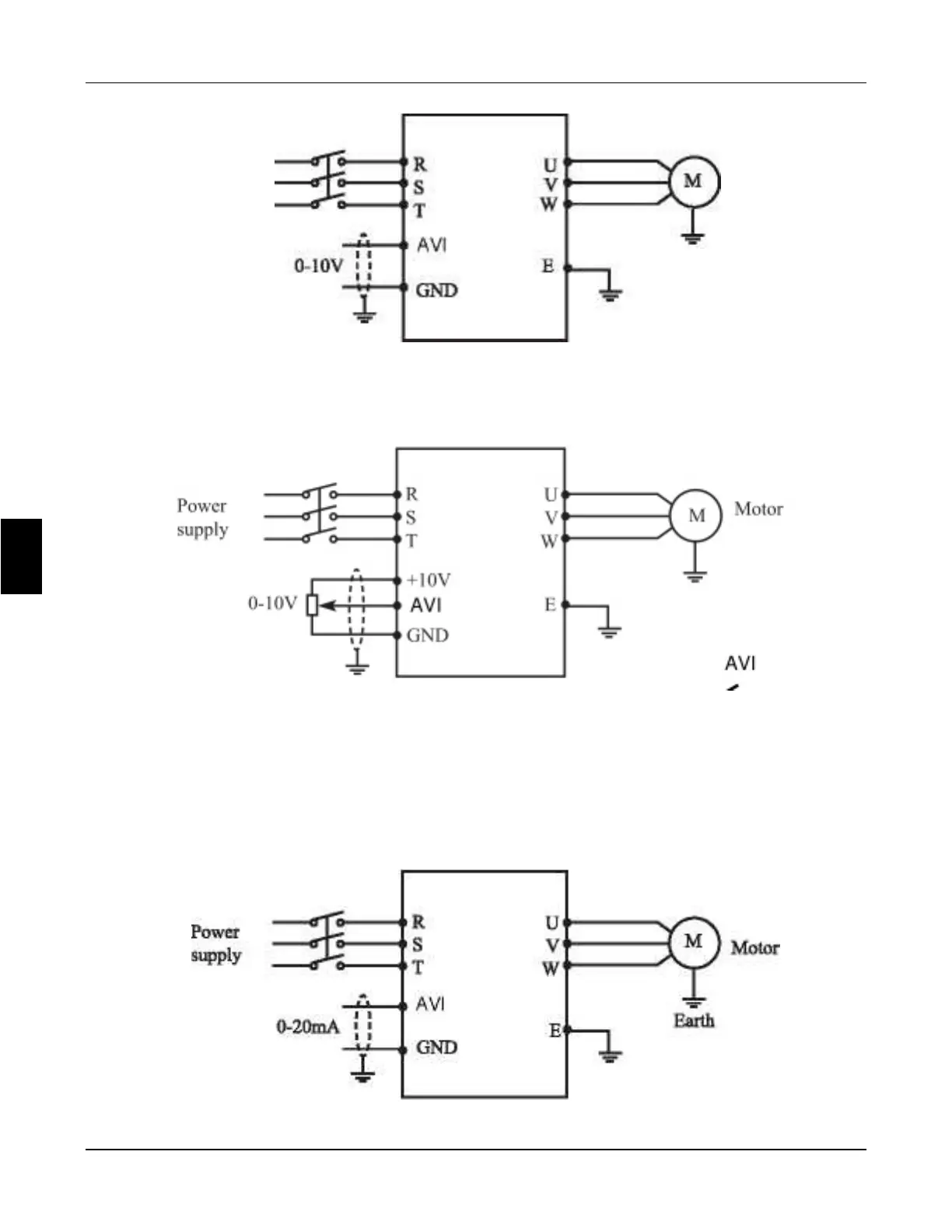

Explanation: control the output frequency through terminal AVI (0-10V).
Explanation: control output frequency of inverter by AVI voltage signal sent by external
POT (10k Q)
2: Analog current mode (0~20mA DC)
The output frequency of inverter is decided by external current signal (0-20mA). Control
the output frequency of inverter by external terminal AVI
6
Chapter 6 Description of parameter setting
FC100 Series User Manaul
