2. Names and Functions of Each Part
2.1 Overview
Main unit
2
3
4
1

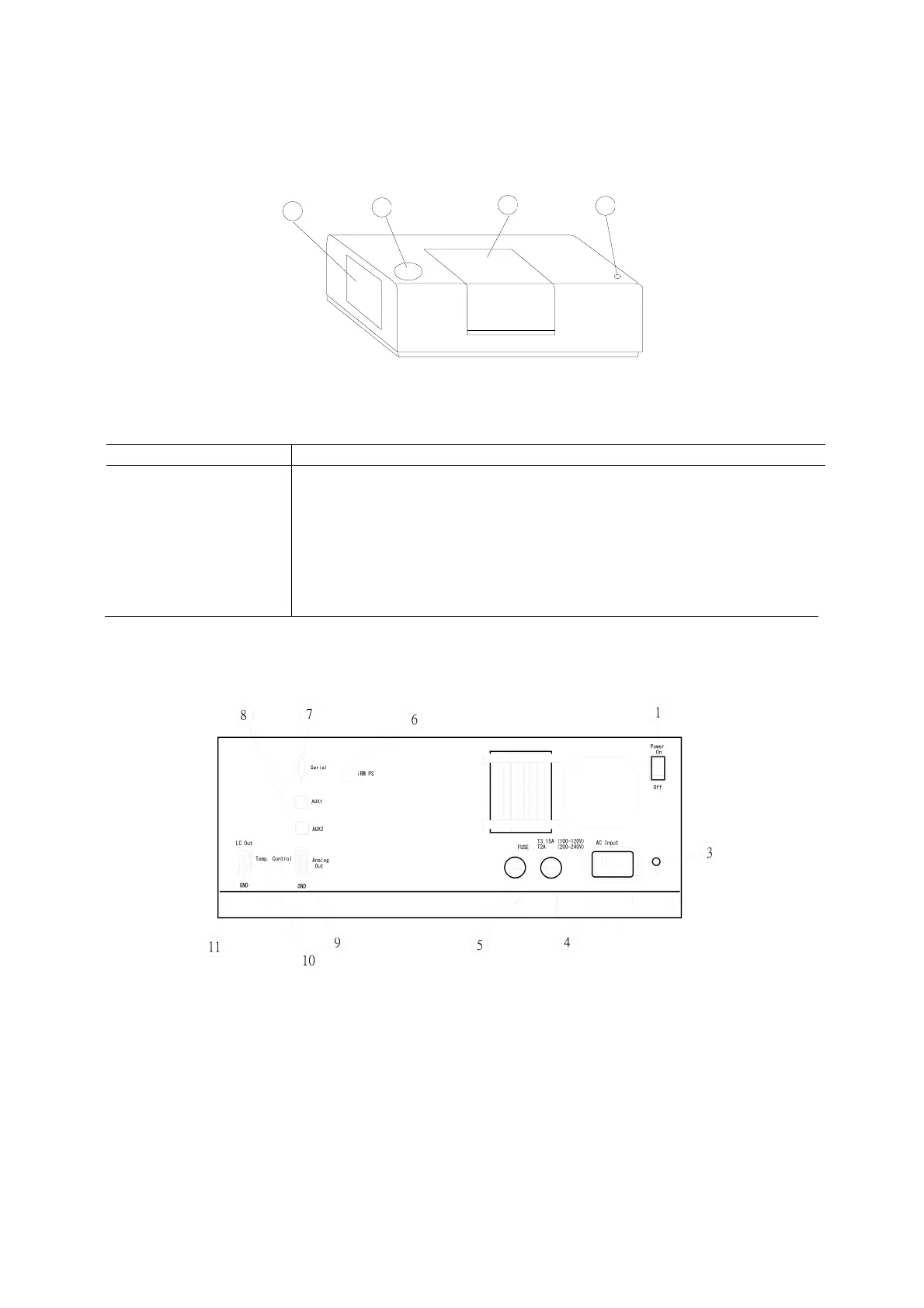

Figure 2.1 Overview
Name
function
 Lamp housing
 Filter unit
 Sample chamber
 “Power” lamp
The lamp is housed here.
Contains a filter for changing over wavelength.
Includes the cell holder, light beam aperture changer, and
sensor for temperature measurement.
The aperture changer can be set at 8, 3, or 1.8 mm.
Goes on when the power switch (shown in Figure 2.2, 2.3 and
2.4) is turned on.
2.2 Rear panel
P-1010 rear panel
Figure 2.2 P-1010 rear panel
