115
7. Secure the cylinder to the A-frame bracket using the bolts, nuts and washers provided.

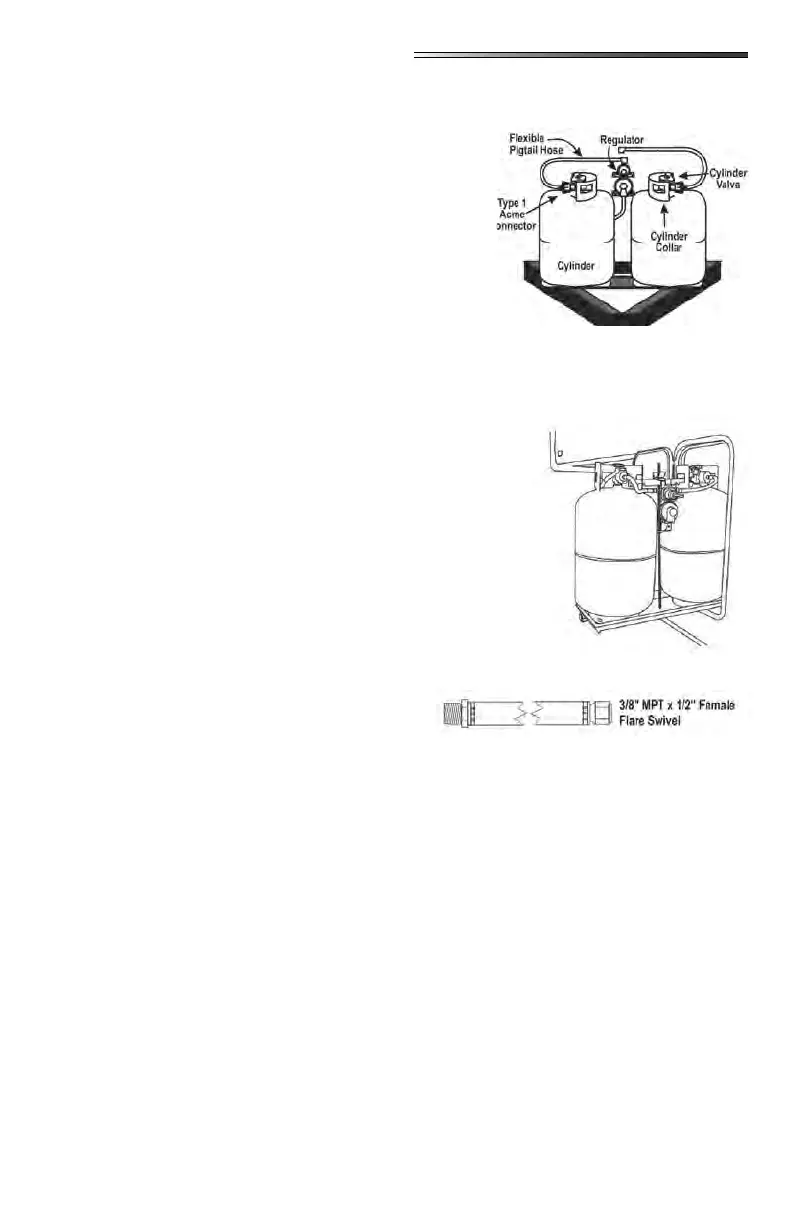

When a second cylinder is installed, a tee check valve is
used to replace the 90° elbow at the top of the regulator
and another 1/4” inverted are x 24” Type 1 pigtail is
added. The regulator stays in the original position.
Place the second cylinder on the A-frame bracket so the
cylinder valve is pointed to the roadside of the recre-
ation vehicle.
1. Secure the second cylinder to the A-frame using
the bolts, nuts and washers provided.
2. Attach the second 24” hose to the tee check valve
on the regulator and the right handed swivel nut to
the cylinder valve.
1. Connect the 3/8” low-pressure hose to the outlet of the
two-stage regulator.
2. Place the cylinder on the bracket in the recess compart-
ment or housing and secure them so the outlets of the
cylinder valves are facing the “sidewalls” of the com-
partment or housing (opposite of each other).
3. Mount the regulator on the center back wall of the com-
partment or housing so the vent is pointed downward.
4. Attach the 1/4” inverted are x 18” Type-1 pigtail hose
to the regulator inlet and the right hand swivel nut to
the cylinder valve.
Attach the main supply hose from the regula-
tor to the brass manifold tting in the frame of
the trailer. The swivel brass nut on the main
hose will be your nal attachment.
Each time the propane container is removed:
1. Check that ALL ttings are tight.
2. Check that ALL connections are tested with a propane leak detector (or soapy water)
solution.
3. Open the main valve slowly to avoid a fast rush of propane to the excess ow valve
causing propane freeze up. If you experience a propane “freeze-up,” close the main
valve and wait at least fteen (15) minutes before trying again. Refer to the regulator
manufacturer’s operator manual.
4. Listen carefully - a “hissing” sound longer than one second may indicate a propane
leak. If you feel there may be a leak present, close the valve and contact your dealer or
qualied propane technician for repair assistance.
Replace all protective covers and caps on the propane system after lling. Make sure the
valve is closed and the compartment door is securely latched.
