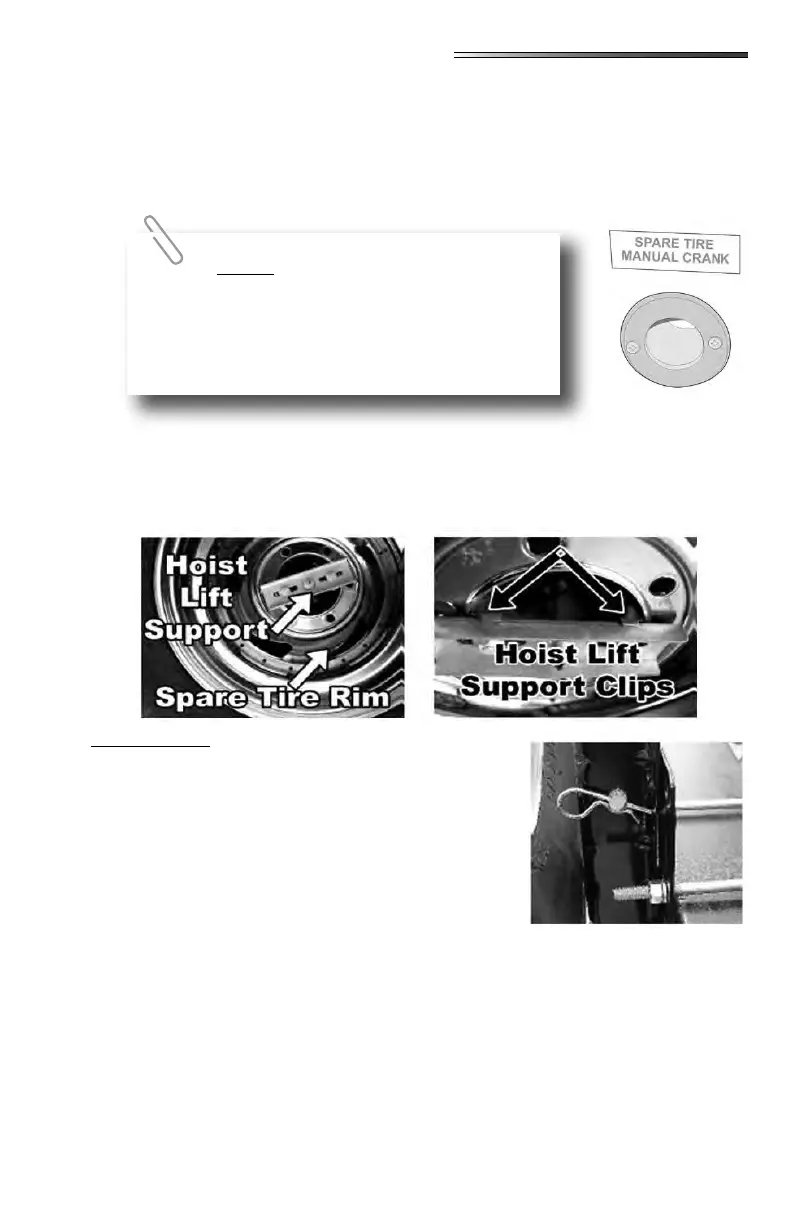

The crank handle to raise and lower the tire will be located (fastened to the sidewall) in a
basement compartment of the recreational vehicle. Insert the crank handle into the crank
access port located either in the center of the rear bumper, or on the sidewall of the RV. Turn
the crank handle to raise/lower the tire. Two โcrisp breaksโ must be heard and felt to insure
the proper seating of the tire for travel.
๎ถ๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎
To secure the spare tire in the travel position, put the steel hoist lift support located on the
end of the cable through the rim of the tire. The hoist lift support clips need to seat inside the
center hole of the tire rim. The valve stem of the tire MUST be pointed up (toward the bot-
tom of the RV).
๎ฅ๎๎๎๎๎๎๎ฐ๎๎๎๎
The spare tire bracket can be released and extended down
to access a storage compartment at the rear of the trailer
without removing the tire.
๎ท๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎
1. Remove the cotter key from the pin holding the tire
carrier in place.
2. Remove the pin and extend the carrier away from the
trailer.
๎ค๎๎๎๎๎๎ ๎๎๎๎๎๎๎ ๎๎๎๎ ๎๎๎๎๎ ๎๎๎๎๎๎๎๎ ๎๎๎ ๎๎๎๎ ๎๎๎๎๎๎๎๎ ๎๎๎๎๎๎๎๎๎
๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎
๎ท๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎
1. Remove the lug nuts holding the tire in place.
2. Remove the support bracket from the bottom lug.
3. Pull the tire from the tire carrier.
๎ฑ๎ฒ๎ท๎จ๎ If the manual crank access port is
located in a slideout, the slideout room must
be in the travel position to allow the crank to
reach the mechanism used to raise or lower
the tire.
๎ฆ๎๎๎๎๎๎ค๎๎๎๎๎๎๎ณ๎๎๎
