Typically used for Class C motorhomes.

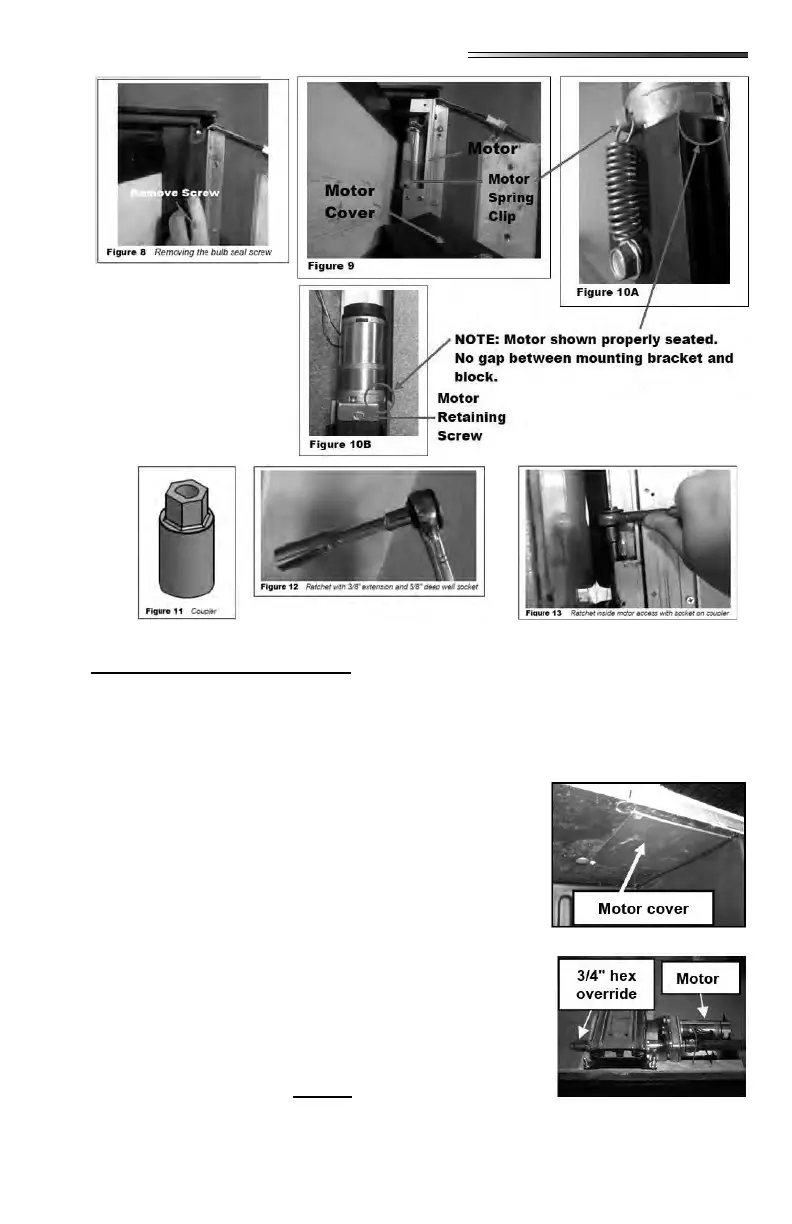

The system has been equipped with 3/4” hex override couplers located on the drive compo-
nent of the system. Due to the size and weight of some rooms, assistance may be needed to
push the room in.
Use the following steps to mechanically operate the room:
1. Locate the ABS motor access cover for the slideout. This
cover will be located inside one of the storage compart-
ments under the slide room up at the top of the compart-
ment.
2. Remove 4 screws holding the panel to the top of the com-
partment. Remove the cover.
3. Unplug the motor leads at the connector. Gray connector
with red and black wires.
4. To release the motor brake you must depress the spring
lock lever, which then allows you to pivot the brake lever,
which in turn releases the brake. These parts are located
inside the rubber boot wire tied over the motor. You must
manipulate these parts removing the rubber boot.
