121

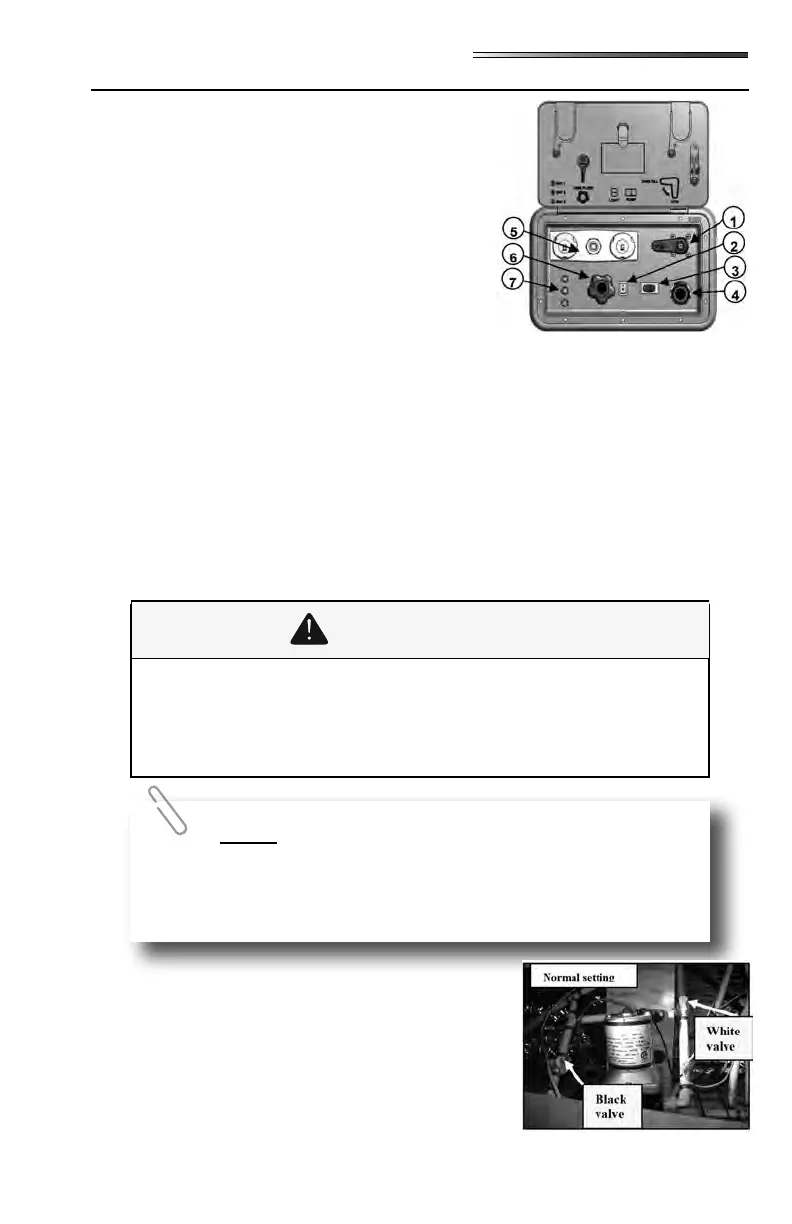

Utility Center – 2 Valves (6 In 1)
Your RV may be equipped with a small lockable en-
closed docking station, which provides convenient ac-
cess to certain plumbing system functions at one central
location.
The 6 in 1 utility center contains the following features:
1. City water / tank ll valve
2. Lighted white switch (switch itself acts as a light
for the panel)
3. Pump switch (lights red when ON)
4. Fresh water connection inlet
5. Outside shower hookup (with quick connect for
the shower hose)
6. Black tank ush inlet
7. Hookups for satellite TV (up to 3 total connections)
• SAT1 input is wired only to the wall plate for the satellite receiver (can be used
with a tripod mounted satellite antenna also).
• SAT2 input is wired only to the wall faceplate at the main TV. This connection
would not be used for OTA (over-the-air) signals for local TV stations. There is
an HDTV antenna on the roof for local stations and it is wired separately to the
faceplate at the main TV.
• SAT3 input is wired to wall faceplates of any other secondary TVs in the RV (i.e.
bedroom or exterior). This AUX input is designed for use with an outdoor porta-
ble satellite dish system mounted on a tripod.
Pump and water heater bypass locations will vary accord-
ing to the model. Locate the pump by turning it on briey
and listening for it to run. Locate the water heater vent on
outside of the RV and the water heater bypass valves will
be in the same location. They are typically located inside
the RV behind a panel or inside a cabinet.
Never leave the recreation vehicle unattended while lling the fresh water
system. Water running continuously while the RV is unattended can result in
major water damage to RV which will not be covered under your warranty.
The country ll and sanitizing/winterizing functions are
performed from a pair of (2) two way valves plumbed inside the RV;
a black valve on the suction line, and a white valve that directs water
to the xtures or the water tank.
