39
ī¶īīīīīīī¦īīīīīī¬īīīīīīīīīīī

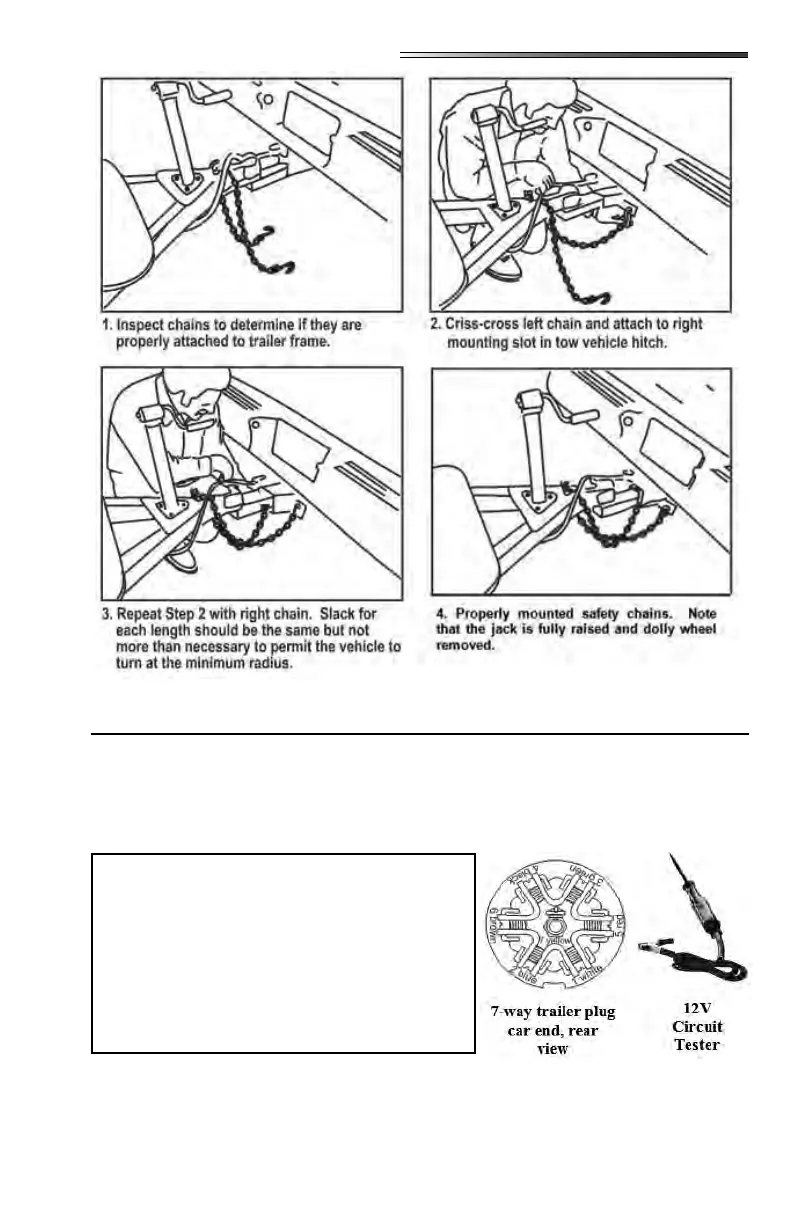

Wire Harness/Connector Plug
A 7-way wire harness/connector plug is wired into your trailer to connect electrical power
from the tow vehicle for travel. This supplies power to the RV brakes, taillights, clearance
lights, turn signals, brake lights, etc. Wiring to operate your brakes must be the same size in
both the tow vehicle and RV (the RV brake wiring is 12-gauge wire).
When attaching wires to your tow vehicle, tape all the connections for moisture protection.
White 1 Ground
Blue 2 Electric Brakes
Green 3 Running Lights
Black 4 Auxiliary +12V battery charge line
Red 5 Stop & left turn
Brown 6 Stop & right turn
Yellow 7 Back up Lights
The connector plug may build up corrosion with extended use. It should be cleaned peri-
odically to insure good electrical contact. Make sure the connector plug is kept clean and
protected from road elements as you travel.
