76
4. The red and green LED’s will ash indicating you are in override mode. Release the
mode button.
5. Using either a wall or command center panel switch, press and hold the switch toward
the word IN or RETRACT until the unit comes in completely. This will allow you to
get the recreation vehicle to a service center to have the slideout malfunction diagnosed.

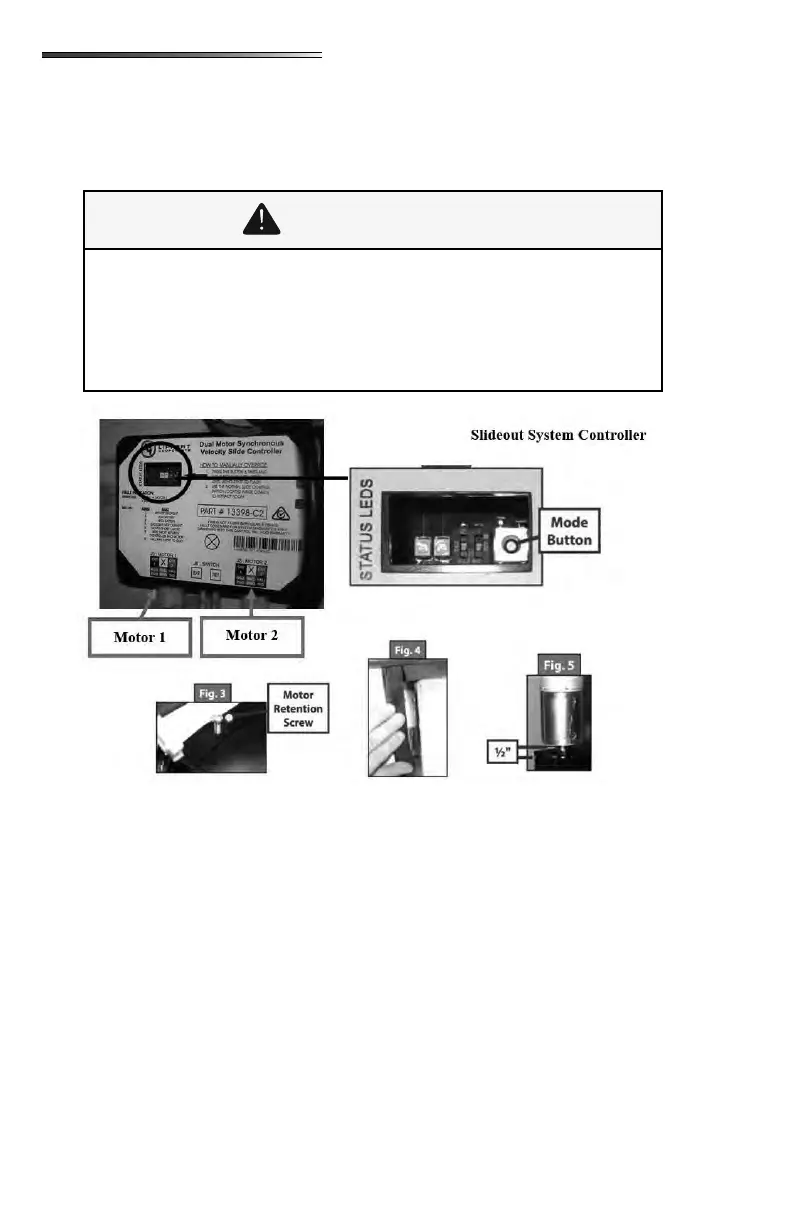

1. Locate the slideout system controller.
2. Unplug motor 1 and motor 2 connectors at the bottom of the slideout controller. This
releases the motor brakes for each motor.
3. The slideout room can now be manually pushed in. Larger rooms may require several
people to push or pull them.
4. Keep both sides of the slideout relatively even while pushing/pulling.
5. When the room is completely in, plug both motor connectors back into the control
module. This will apply the motor brakes for road travel.
1. Locate and remove the motor retention screw, which can be found near the top of each
vertical column ().
2. Bend back the wipe seal and visually locate the motor ().
3. Pull the motor up until it disengages (about 1/2 inch).
4. Repeat this process for both sides of the slide room.
During the override procedure the motors are not synchronized. Visually
watch the room, and if one side is moving signicantly slower than the
other (or not at all).
If the system stalls our before reaching end of stroke OR if the room does
not close and seal tightly.
