2 - 2
Section C Electrics
9803/7130
Section C
2 - 2
Issue 1
Technical Data
Fuses
! CAUTION
Always replace fuses with ones of correct ampere rating
to avoid electrical system damage.
8-3-3-5

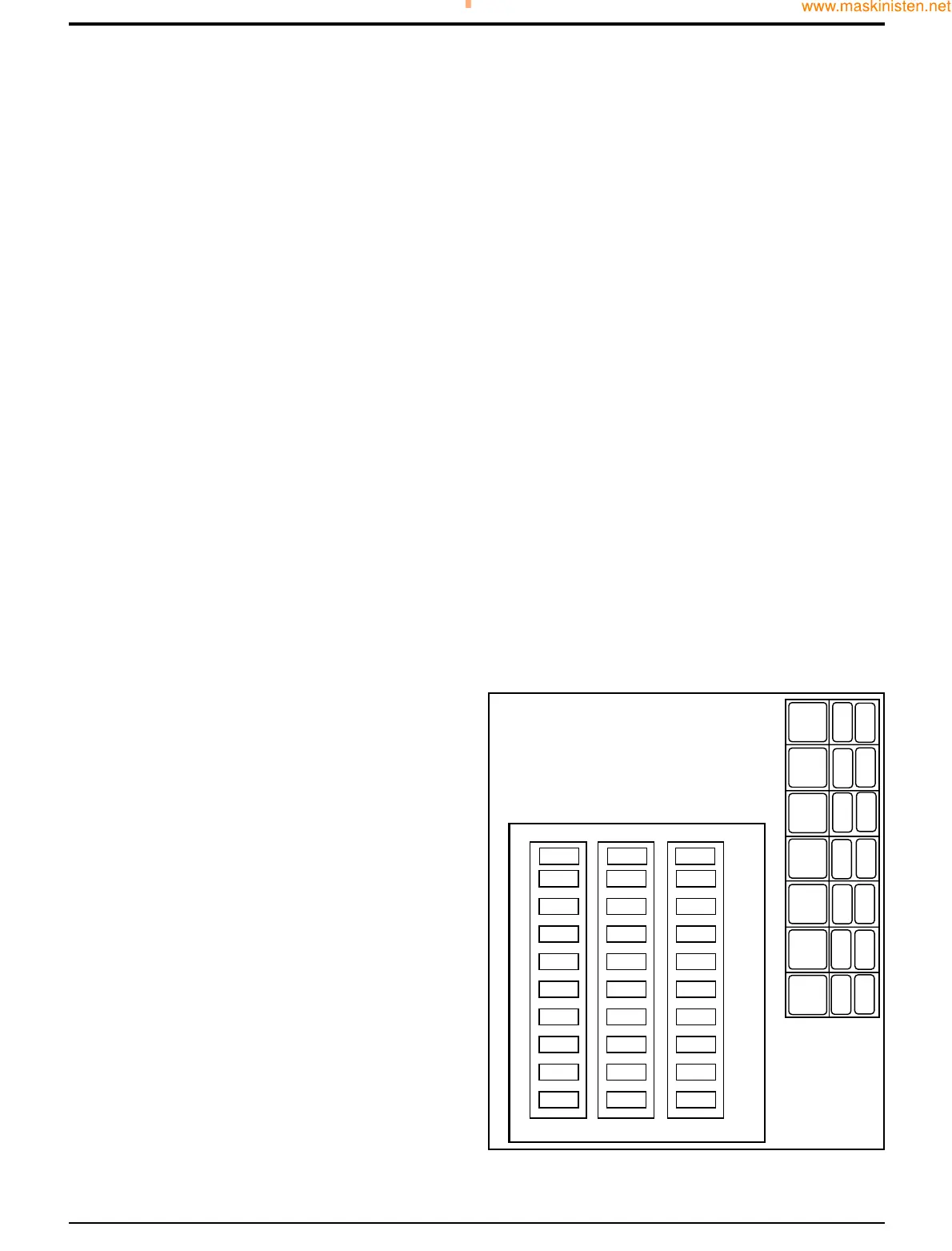

The electrical circuits are protected by fuses. The fuses are
located in the front console, underneath cover A. If a fuse
ruptures, find out why and rectify the fault before fitting a
new one.
Fuse Circuit Fuse Rating
No. (Amps)
A1 Junction box, hydraulic tools 10
A2 Engine shut off system 5
A3 Direction indicators 7.5
A4 Creep speed transmission 10
A5 Manual transmission 10
A6 Airmaster (if fitted) 5
A7 Shovel reset, Smooth ride system 5
A8 Brake lights (secondary) 5
A9 Right hand side lights 3
A10 Left hand side lights 3
B1 Tachometer, Gauges 5
B2 Front horn, Front washer/wiper 15
B3 Rear horn 7.5
B4 Auxiliary power socket 20
B5 Rear washer/wiper 15
B6 Brake lights (primary) 10
B7 Rear work lights 25
B8 Lighting, headlights 20
B9 Front work lights 25
B10 Beacon 10
C1 Rear fog light 3
C2 Headlight dip beam 15
C3 Sidelights 7.5
C4 Hazard lights 15
C5 Wiper, Face level fan, Interior light 10
C6 Radio, Hourmeter 1
C7 Thermostart 20
C8 Heater, Air conditioning 30
C9 Starter relays 3
C10 Headlight main beam 15
