11 - 1
The following points should be lightly oiled with engine oil.
!!
WARNING
Make the machine safe before getting beneath it. Lower
the attachments to the ground; engage the parking
brake; remove the starter key, disconnect the battery.
2-3-2-2

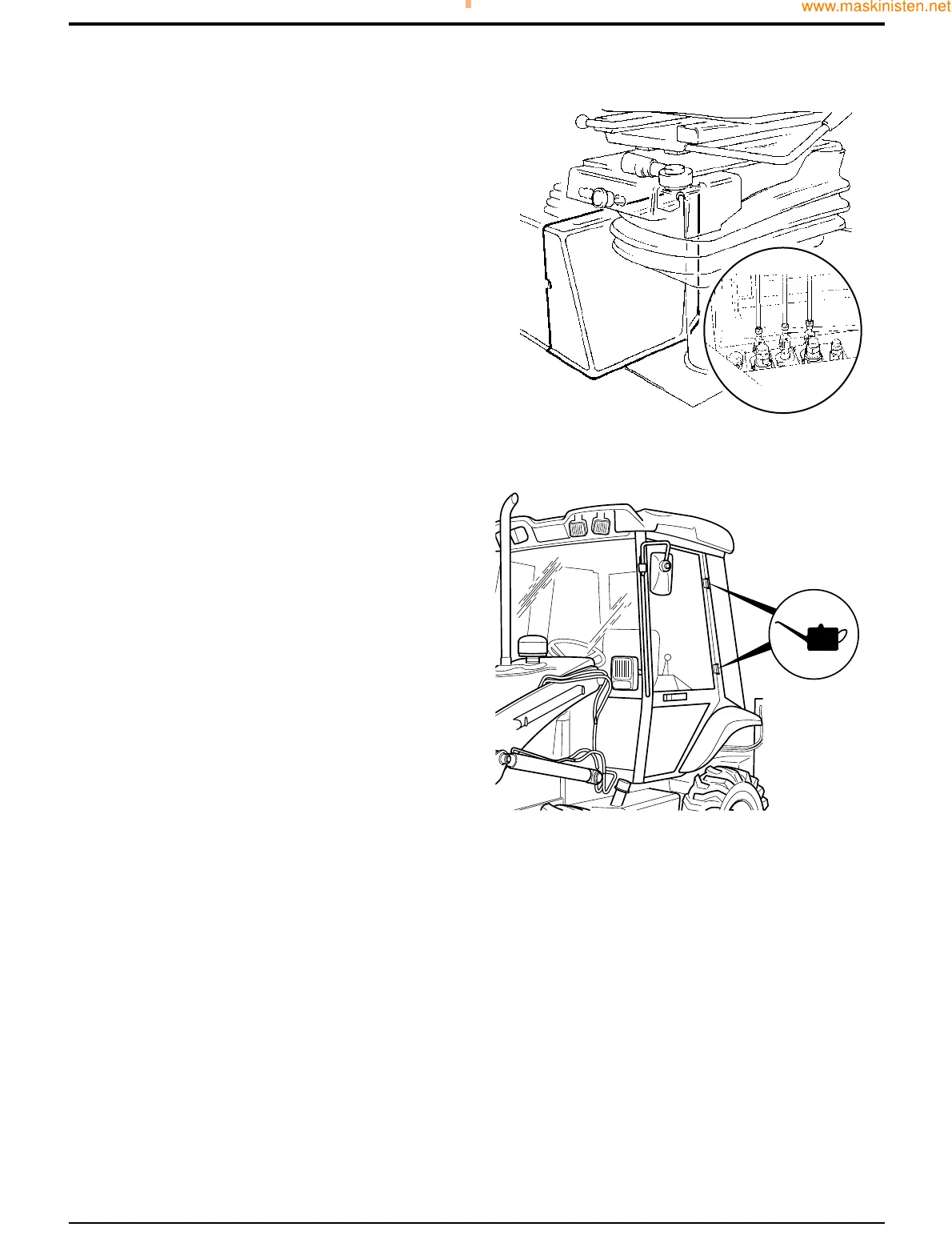

1 Control Levers
Oil the clevis at the bottom of every attachment control
lever (loader control levers shown).
Remove the bolts securing the side console moulding A
to gain access to the loader control levers.
2 Hinges
Oil all hinges (door hinges shown).
Section 3 Routine Maintenance
9803/7130
Section 3
11 - 1
Issue 1
Lubrication
393570
S175760 & S175750
