Adjusting the Fan Belt
1 Raise and Lock the Loader Arms
2 Remove the Right Hand Side Panel
!!
WARNING
Make sure the engine cannot be started. Disconnect the
battery before doing this job.
2-3-3-5

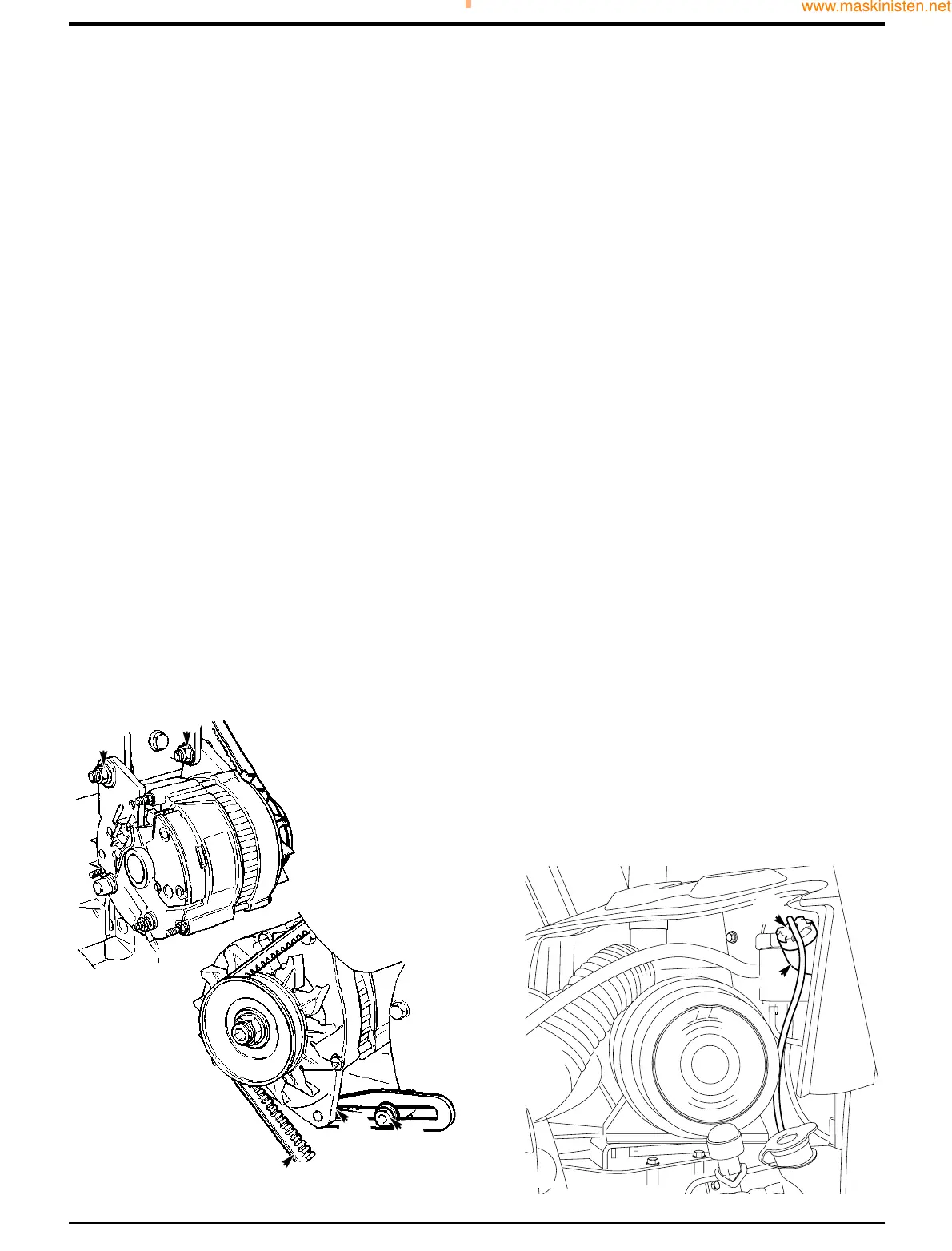

3 Loosen the Alternator
Loosen pivot fastening bolts A and B. Loosen
adjustment link fastening bolts C and D.
4 Adjust the Fan Belt
Position the alternator so that there is 10 mm (3/8 in)
slack at point X.
5 Secure the Alternator
Tighten bolts C, D, B and then A. Make sure that bolt A
is the last bolt to be tightened.
Note: If a new belt is fitted, the belt tension must be
checked again after the first 20 hours of operation.
Checking the Coolant Level
!!
WARNING
The cooling system is pressurised when the coolant is
hot. Hot coolant will burn you. Make sure the engine is
cool before checking the coolant level or draining the
system.
2-3-3-3
1 Park the Machine on Level Ground
Engage the parking brake. Stop the engine and let it
cool down.
2 Raise the Bonnet
See Opening and Closing the Bonnet.
3 Check the Level
The coolant level should be between the COLD/MIN
and the HOT/MAX marks on the coolant reservoir F.
4 Top-up the Reservoir
If necessary, remove reservoir filler cap E and top-up to
the required level. See Fluids, Lubricants, Capacities
and Specifications. Refit reservoir cap.
5 Check for Leaks
Run the engine to raise the coolant to working
temperature and pressure. Stop the engine and check
for leaks.
Note: Check the quality of the antifreeze mixture every year
- before the cold weather starts. Change it every two years.
