20 - 3
Section H Steering
9803/7130
Section H
20 - 3
Issue 1
Service Procedures
Re-Aligning the Road Wheels
!!
WARNING
At the start of each working period, and at least once a
day, or if having difficulty in steering, check and, if
necessary, re-align the road wheels.
2-1-1-10
1 Start the engine.
2 Turn the steering wheel to full right lock.
3 Stop the engine and remove the starter key.

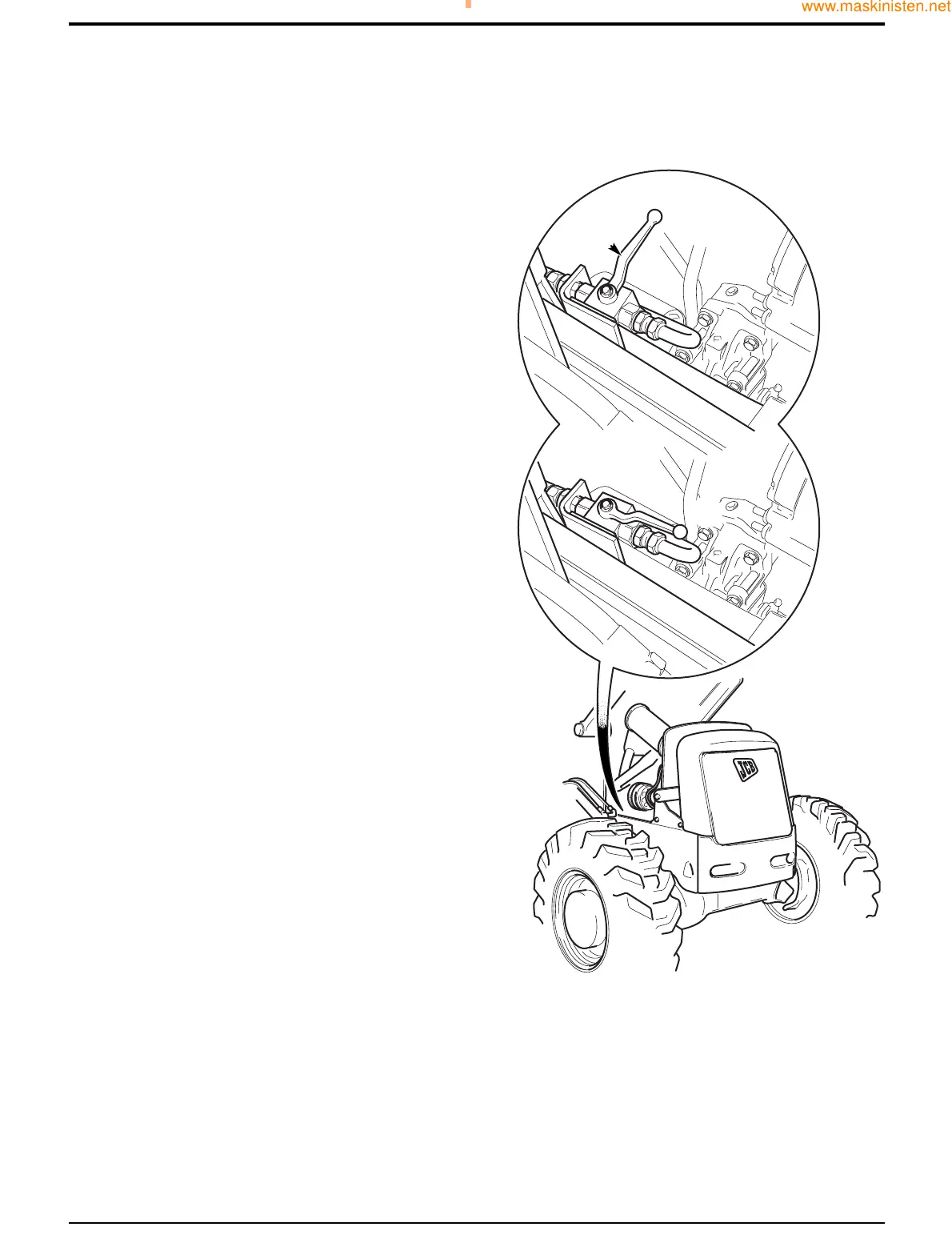

4 Open the bonnet. Move the setting lever A to the SET
position S as shown.
!!
WARNING
The engine has exposed rotating parts. Switch OFF the
engine before working in the engine compartment. Do
not use the machine with the engine cover open.
5-2-6-5
5 Start the engine.
6 Continue to turn the steering wheel to full right lock until
full/maximum travel is obtained.
7 Stop the engine and remove the starter key.
8 Move the setting lever A to the LOCK position L as
shown and close the bonnet.
9 Repeat steps 1 to 8 if necessary.
!!
DANGER
The steering setting lever must be in the FULLY LOCK
position before driving the machine, failure to do so will
result in a loss of steering. The setting lever must not be
removed or modified.
5-2-6-6
LL
SS
AA
