50 - 3
Section G
Brakes
9803/7130
Section G
50 - 3
Issue 1
Parking Brake
6
7
8
15
13
13
13
12
13
12
10
9
1
11
4
3
5
2
14
228362

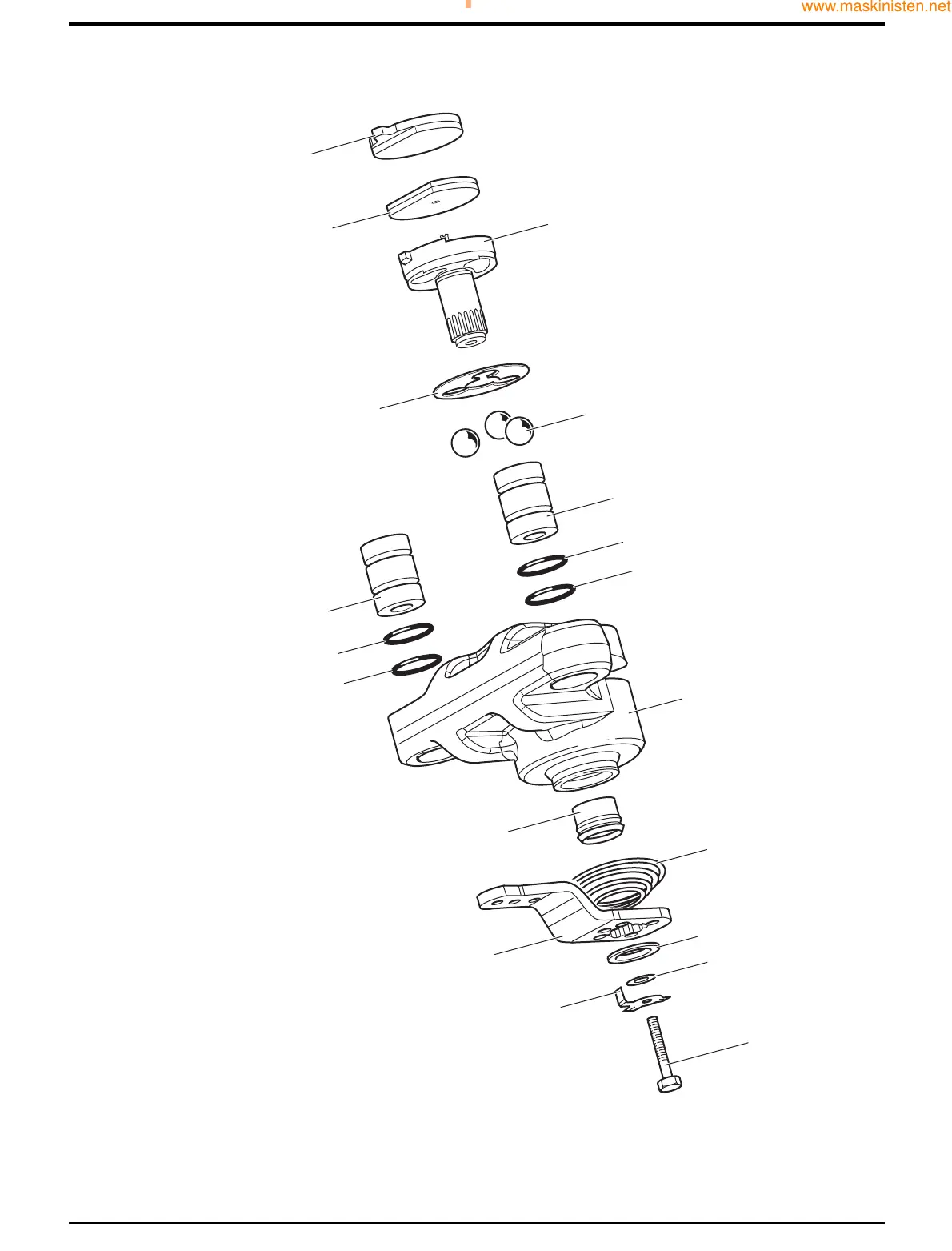

Component Listing:
1
Carrier Side Pad
2
Lever Side Pad
3
Bolt
4
Anti-rotation Clip
5
Washer
6
Washer
7
Lever
8
Spring
9
Rotor
10
Ball Spacer
11
Ball Bearings
12
Mounting Bush
13
O-ring
14
Shaft Seal
15
Housing
