Section 3 - Maintenance
Routine Maintenance
Fuel System
3-23 3-23
9803-9570-4
Cleaning the Sedimenter
1 Turn the fuel valve OFF.
2 Remove the sedimenter cup A and O-ring B and
clean them in a suitable solvent. Dry thoroughly and
re-install them securely.
3 Turn the fuel valve to ON and check for leaks.

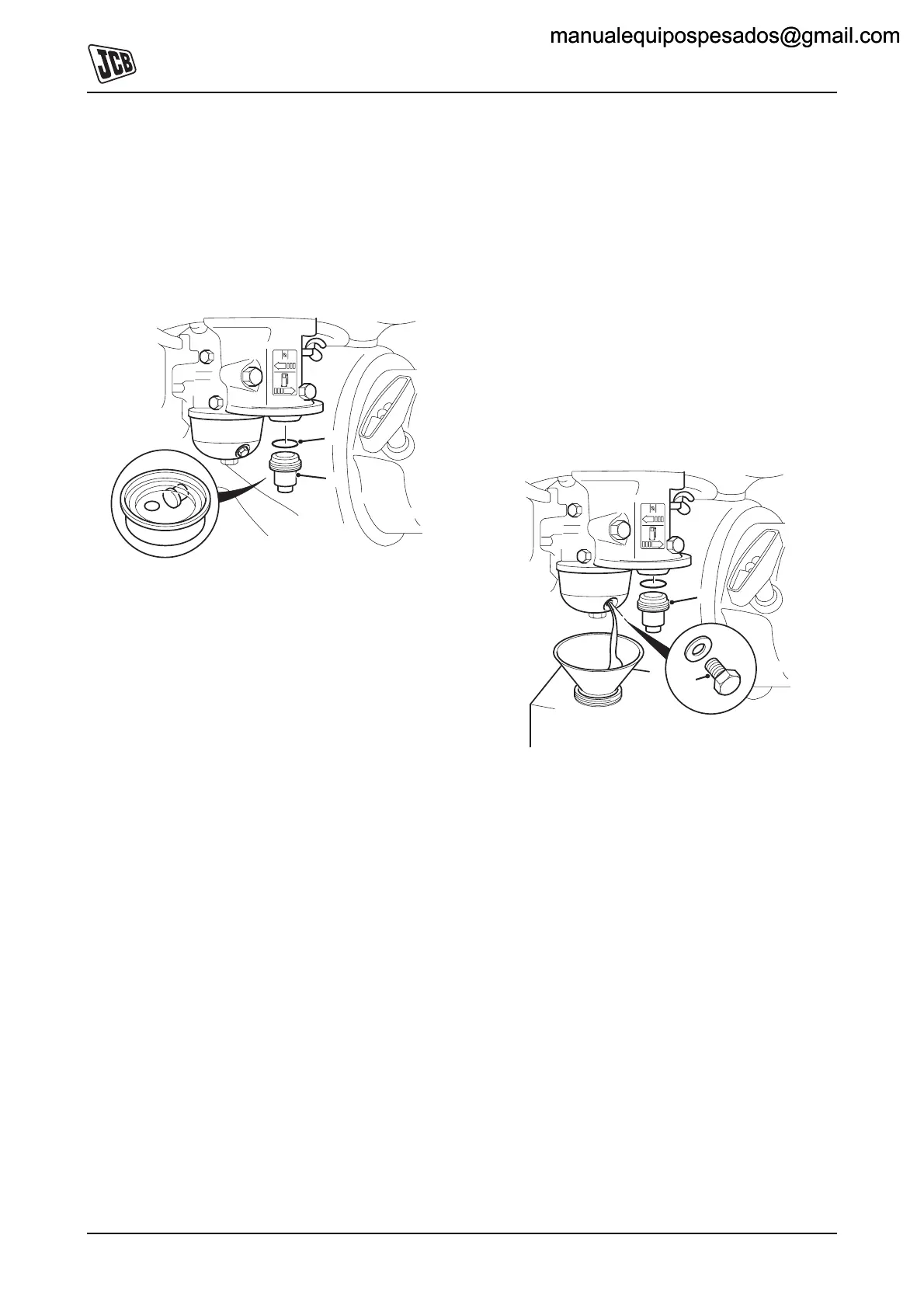

Fig 15.
Draining the Fuel System
(for machine storage or removing contaminated fuel)
1 With the fuel valve at OFF, remove and empty the
sediment cup A.
2 Turn the fuel valve to the ON position and drain the
fuel from the petrol tank into a suitable clean
container.
3 Replace the sediment cup and tighten securely.
4 Loosen the carburettor drain screw B and drain the
petrol into a suitable container. Tighten the drain
screw.
5 Turn the fuel valve to OFF.
Fig 16.
