Section E - Hydraulics
Loader Pump
Pump
E-19 E-19
9803-9570-4
Loader Pump
Pump

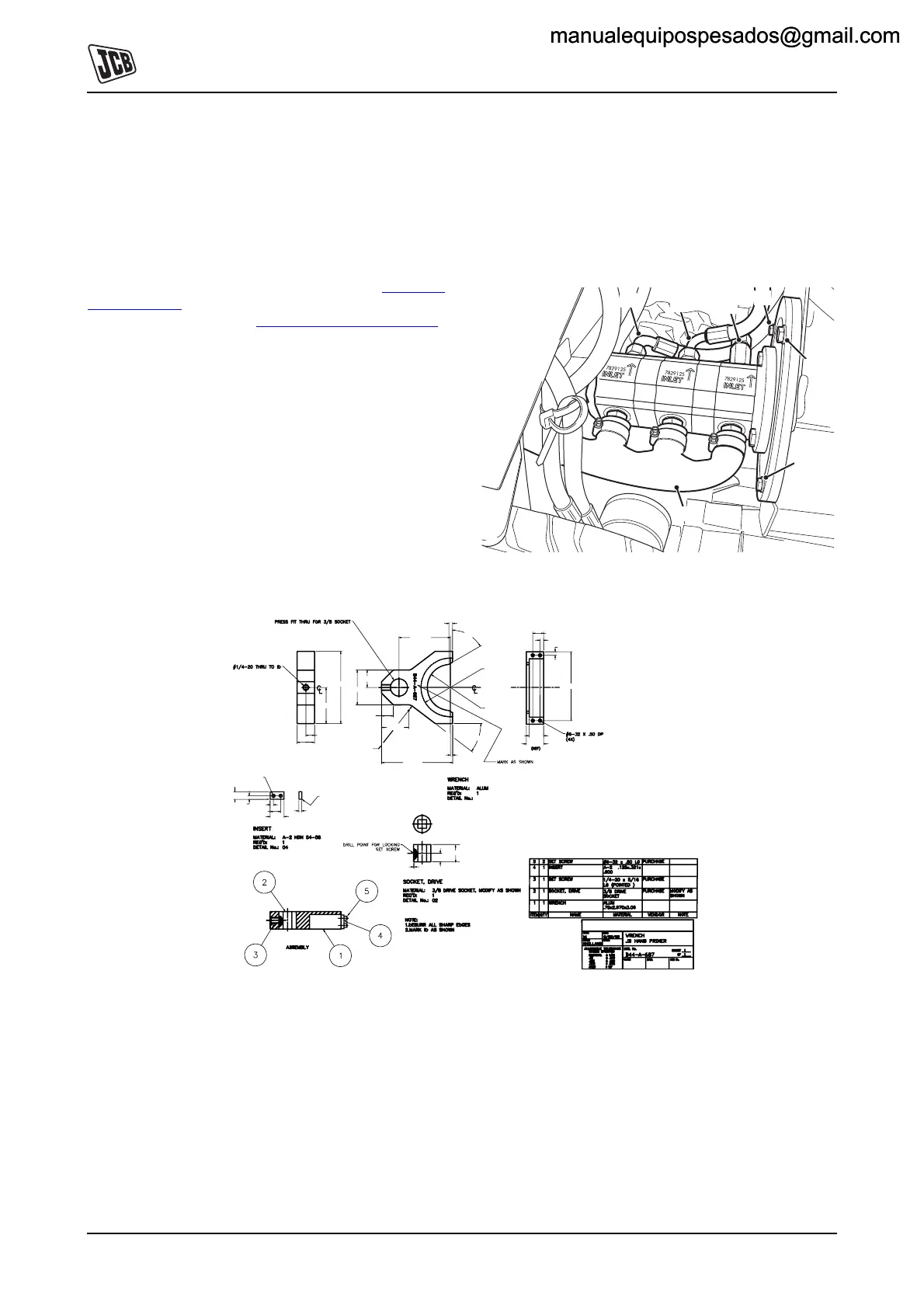

Removal
Remove the engine cover (if fitted) K Engine
Cover ( T B-1) and move the engine back on its mounting
to gain access to the pump (K Engine Mounting ( T K-3).
Place a container of suitable size underneath the pump to
collect the hydraulic oil from the tank.
Disconnect the suction hoses A from the pump and allow
the hydraulic tank to drain through the open hose.
Mark the outlet hoses B to ensure correct reconnection
then disconnect them from the pump.
Remove four securing bolts C and lift the pump away from
the engine.
Remove the two nuts and bolts D and separate the pump
from the mounting plate.
If necessary, remove the coupling components E, F and G.
Fig 1.
Fig 2.
A
B
B
B
C
C
C
75.35 (2.97)
16(0.63)
19(0.75)
R32.13(R1.265)
R25.4(R1.00)+.01/-.0
77.72(3.06)
24.89(0.98)
29.7(1.17)
12.7(0.5) X 45˚
(2X)
19.05(0.75)
9.525(0.375)
40.64(1.6)
79.25(3.12)
19.05(0.75)
38.1(1.5)
56.24(2.21)
4
.06(0.16) (2X)
11.91(0.47)
3.99(0.157)
3.78(0.149)
3.175(0.125)
0.125(0.005)
MAX BOTH SIDES
3.66(0.144)
8
.15(0.321)
3.78(0.149)
3.66 DIA (0.144
)X 2
15.24(0.6)
11.58(0.456)
19(0.75)
9.525(0.375)
9.9(0.39)
R6.35(R0.25)
(2X)
45˚(2X)
60˚(2X)
