MULTIMEDIA 259

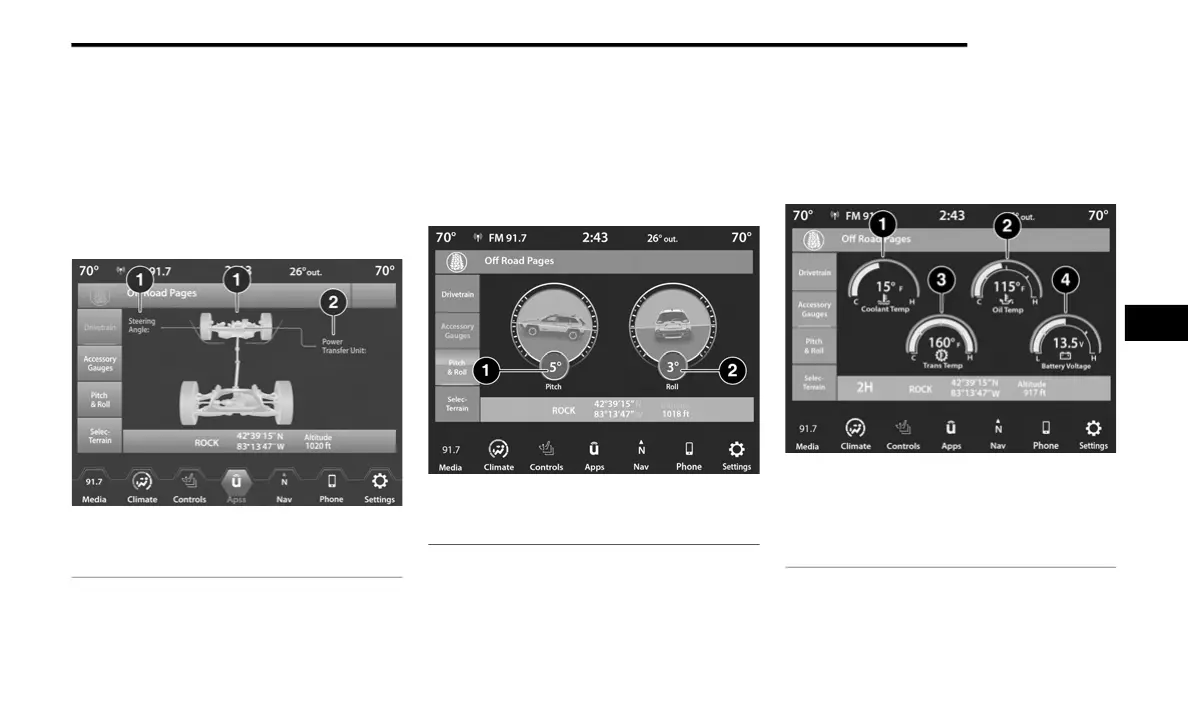

DRIVETRAIN
The Drivetrain page displays information
concerning the vehicle’s drivetrain.
The following information is displayed:
1. Steering angle in degrees
2. Power Transfer Unit
Drivetrain
PITCH & ROLL
The Pitch & Roll page displays the vehicle’s
current pitch (angle up and down) and roll
(angle side to side) in degrees. The pitch and roll
gauges provide a visualization of the current
vehicle angle.
Pitch & Roll Menu
ACCESSORY GAUGES
The Accessory Gauges page displays the
current status of the vehicle’s Coolant
Temperature, Oil Temperature, Transmission
Temperature, and Battery Voltage.
Accessory Gauges Menu
1 — Steering Angle
2 — Power Transfer Unit
1 — Current Pitch
2 — Current Roll
1 — Coolant Temperature
2 — Oil Temperature
3 — Transmission Temperature
4 — Battery Voltage
5
