332 IN CASE OF EMERGENCY
The fuses protect electrical systems against
excessive current.
When a device does not work, you must check
the fuse element inside the blade fuse for a
break/melt.
Also, please be aware that when using power
outlets for extended periods of time with the
engine off may result in vehicle battery
discharge.
Blade Fuses
UNDERHOOD FUSES
The Power Distribution Center is located in the
engine compartment near the battery. This
center contains cartridge fuses, mini-fuses and
relays. A label that identifies each component is
printed on the inside of the cover.
Power Distribution Center Cover
CAUTION!
If it is necessary to wash the engine
compartment, take care not to directly hit the
fuse box, and the windshield wiper motors
with water.

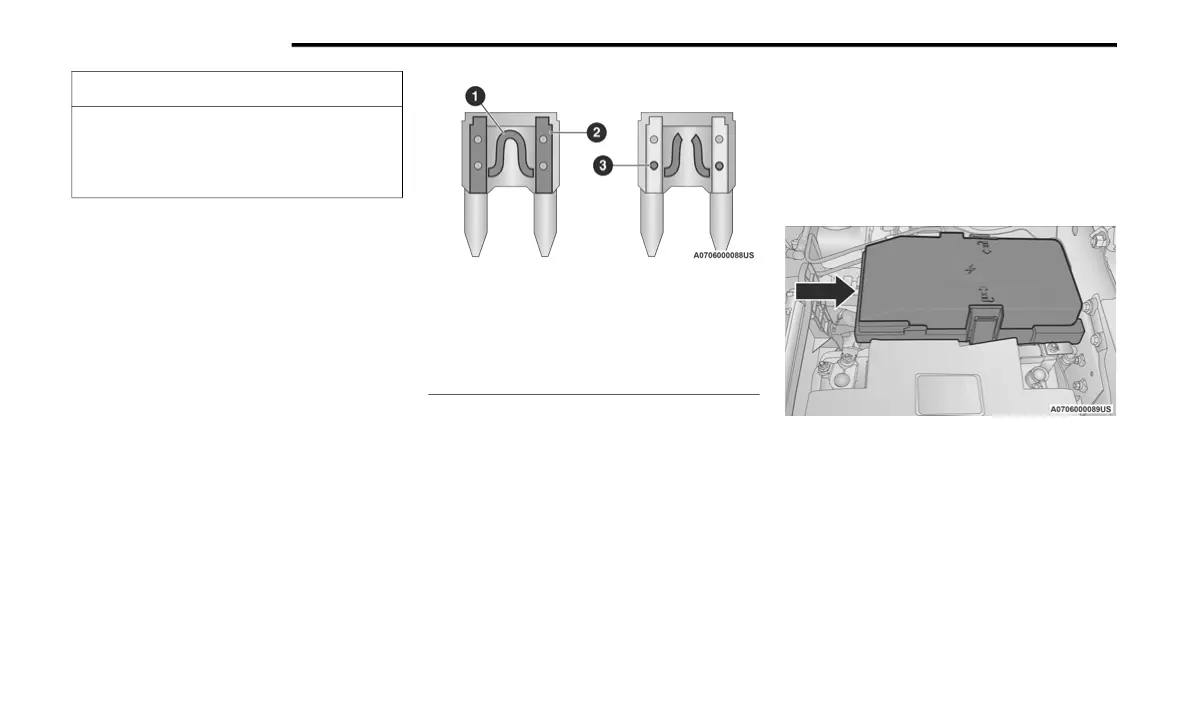

1 — Fuse Element
2 — Blade Fuse With A Good/Functional Fuse
Element.
3 — Blade Fuse With A Bad / Not Functional Fuse
Element (Blown Fuse).
