JEKKO MPK20 - Use of the Crane; Use of By-Pass

Pagina 29 di 47
5–USE OF THE MACHINE IN
REGULAR WORKING CO NDITIONS
_
_____________________________________________________________________________________________
5.3 Use of the crane
Key switch 3 (fig.2) on LOCAL position:
Start the machine using key sitch 3 (fig. 2)and then use the valve bank levers to carry out the
moves indicated
Key switch 3 (fig.2) turned to REMOTE position:
When the key sw itch is in this position, the radio remote control is activated:
o Close the valve bank cover and be sure the red safety microsw itch is locked
o Start the radio remote control pusching button 1 (fig.3)
o Use the uniaxial analogical joysticks to operate the crane
5.4 Use of by-pass
1- CRANE BY-PASS: Keep turned the key sw itch 4 (fig.1) and at the same time use valve bank
lever
Use by-pass only for emergency situation, pay attention because
there is danger of machine turnover!!!

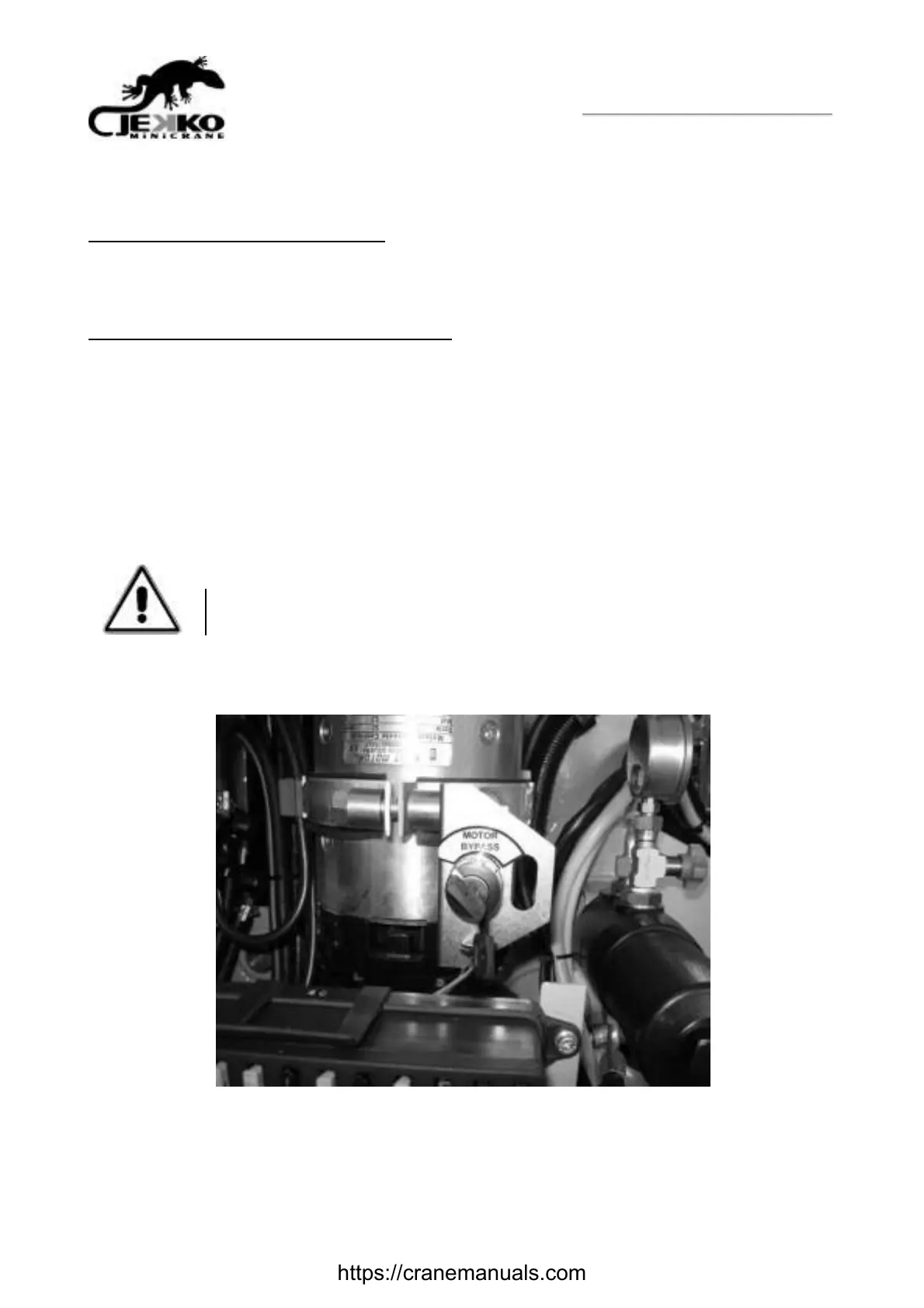

2- MOTOR BY PASS: turn on the key sw itch inside the left compartement to start the electrical
motor .
