1-PREFACE
_____________________________________________________________________________________________

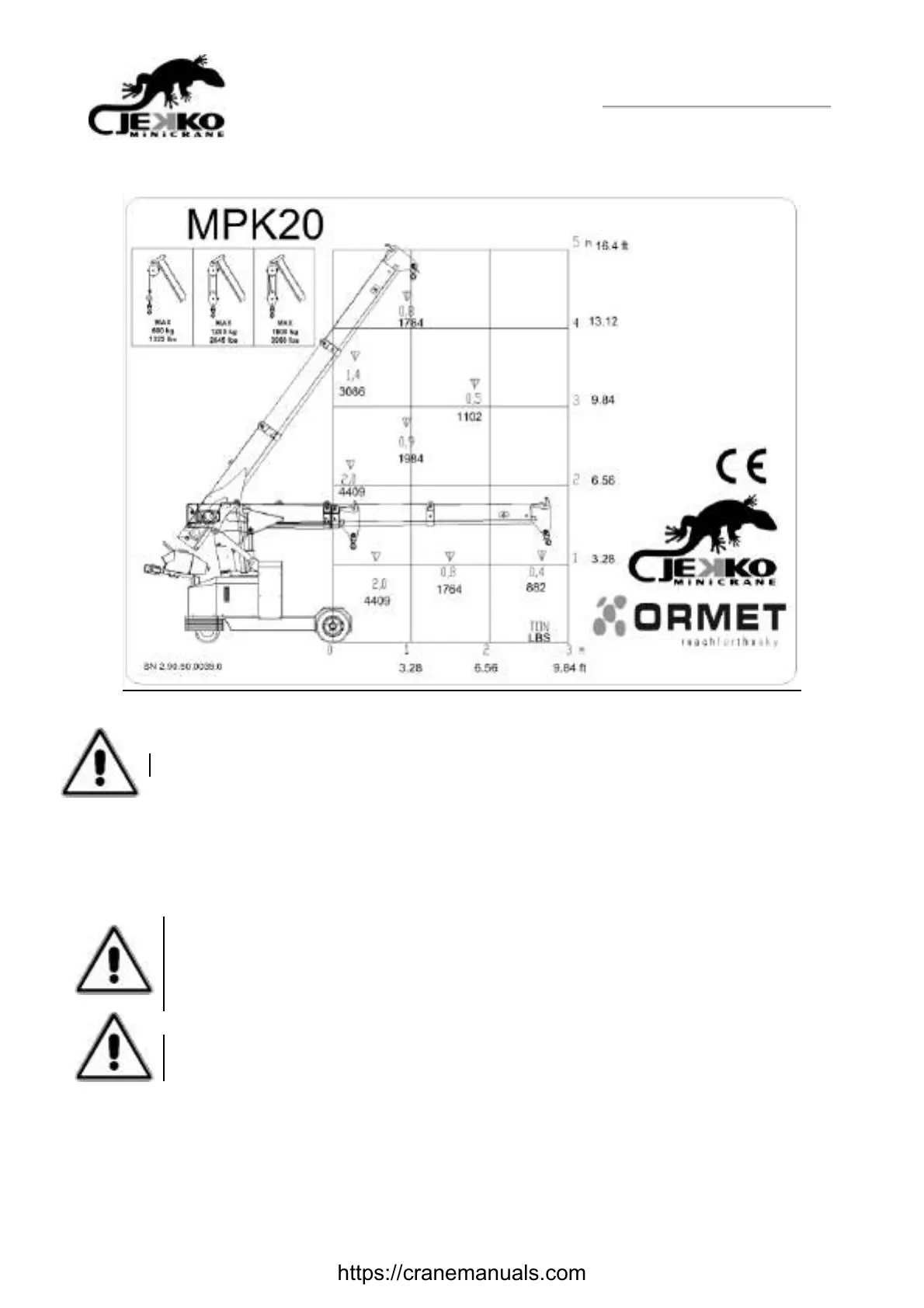

DIMENSIONS AND LOADING DIAGRAM OF THE CRANE WITH HOOK
Apply the hook directly to the crane boom.
Check always the hook SWL capacity.
WINCH
The w inch capacity is of 600 kg (see the w inch CE plate).
The load limiting devices avoid the machine tilting w hile using the w inch. In any case, the operator
has to make sure not to lift loads exceeding the boom capacity.
Within the 600kg -1323lbs loading capacity, the boom can lift loads
exceeding the winch capacity thus activating the load limiting device. In
order to lift heavier loads it is necessary to modify the pulley
configuration by using a double or triple line pull.
The rope replacement or shortening has to be carried out by specialized
technicians, only.
