Jensen VM9313 - Pre-installation and Wiring

Optional Equipment
• NAV102: Allows you to access navigation features. All installation and operating instructions are
included with the navigation module.
• BTM10: Allows you to connect to a Bluetooth enabled cell phone or other device.
• Rear Camera
• CNP2000UC and CNPJEN1 (XM Radio tuner and antenna)
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable
prior to installation.
NOTE: If the VM9313 is to be installed in a car equipped with an on-board drive or navigation
computer, do
not disconnect the battery cable. If the cable is disconnected, the computer
memory
may be lost. Under these conditions, use extra caution during installation to avoid
causing a short circuit.

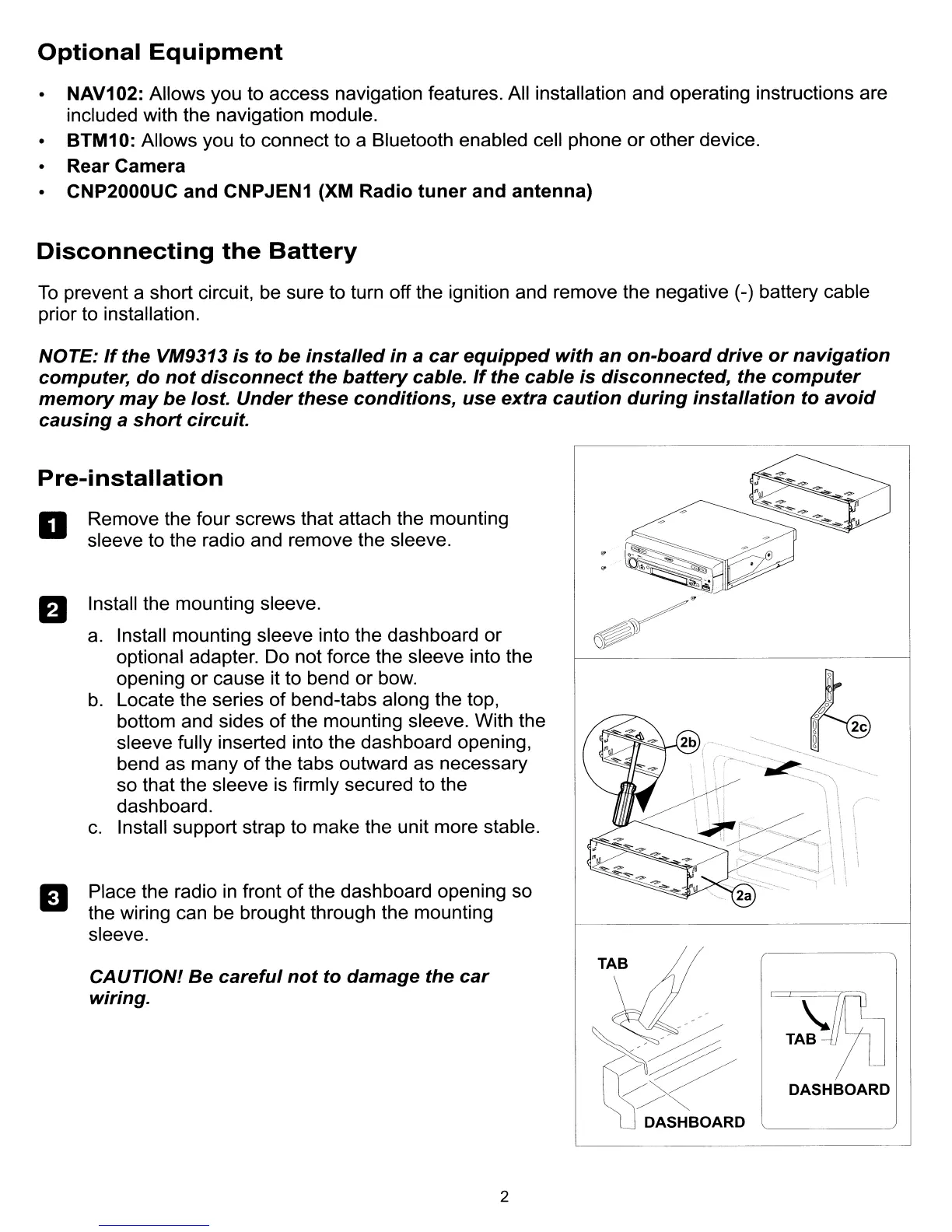

Pre-installation
a Remove the four screws that attach the mounting
sleeve to the radio and remove the sleeve.
..
,.
Place the radio in front of the dashboard opening so
the wiring can be brought through the mounting
sleeve.
II
B Install the mounting sleeve.
a. Install mounting sleeve into the dashboard or
optional adapter. Do not force the sleeve into the
opening or cause it to bend or bow.
b. Locate the series of bend-tabs along the top,
bottom and sides of the mounting sleeve. With the
sleeve fully inserted into the dashboard opening,
bend as many of the tabs outward as necessary
so that the sleeve is firmly secured to the
dashboard.
c. Install support strap to make the unit more stable.
CAUTION! Be careful not to damage the car
wiring.
~Q5/~
/X
DASHBOARD
DASHBOARD
2
