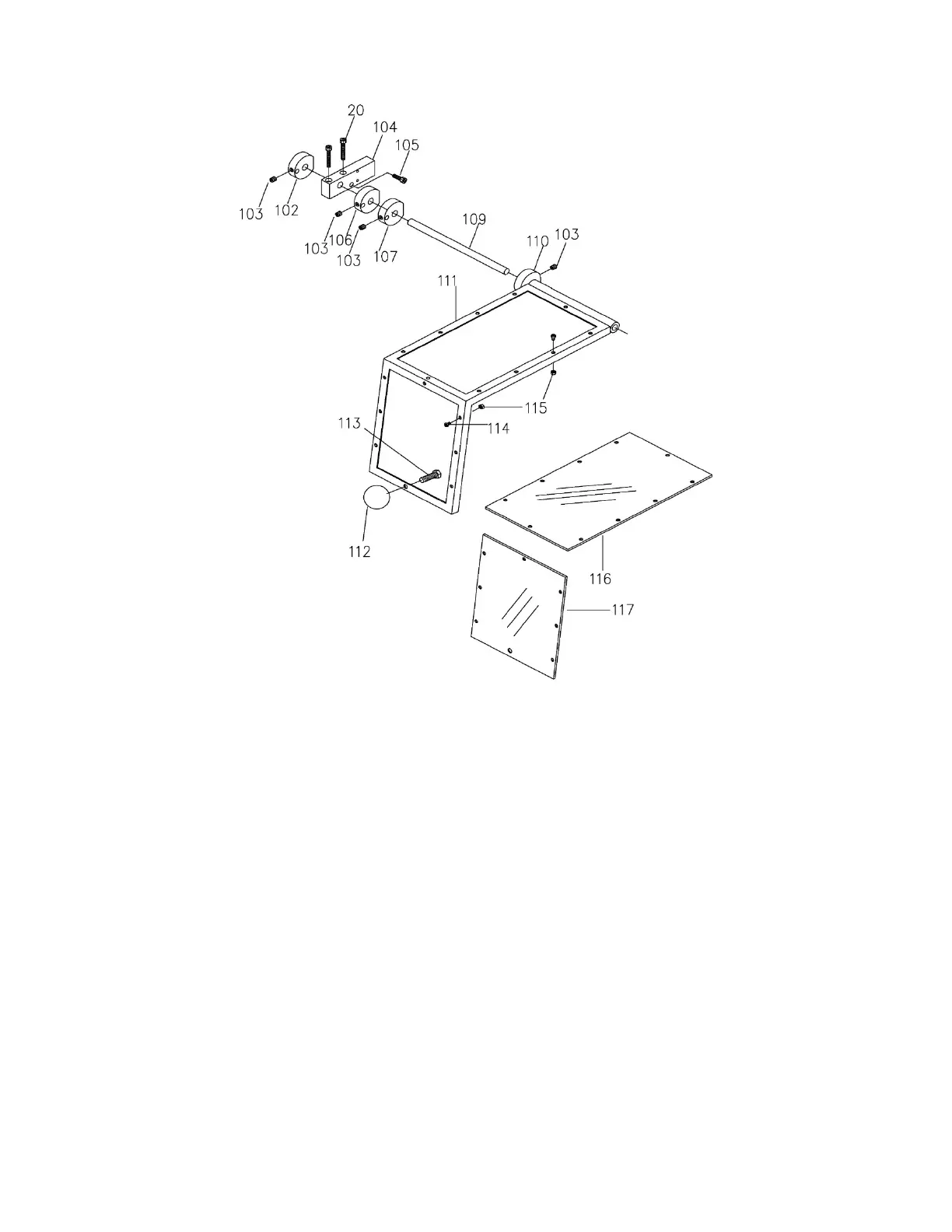

15.10.1 EVS-1440B Chuck Guard Assembly – Exploded View
15.10.2 EVS-1440B Chuck Guard Assembly – Parts List
Index No Part No Description Size Qty
20 .............. TS-1503041 .............. Socket Head Cap Screw ......................................... M6x16mm ..................... 2
102 ............ EBL1236VS-G102 ..... Cam ......................................................................... ...................................... 1
103 ............ TS-1523021 .............. Set Screw ............................................................... M6x8mm ....................... 4
104 ............ EBL1236VS-G104 ..... Keep Assembly ........................................................ ...................................... 1
105 ............ TS-1503021 .............. Socket Head Cap Screw ......................................... M6x10mm ..................... 1
106 ............ EBL1236VS-G106 ..... Collar ....................................................................... ...................................... 1
107 ............ EBL1236VS-G107 ..... Cam ......................................................................... ...................................... 1
109 ............ EBL1236VS-G109 ..... Shaft ........................................................................ ...................................... 1
110 ............ EBL1236VS-G110 ..... Collar ....................................................................... ...................................... 1
111 ............ EBL1236VS-G111 ..... Chuck Guard ........................................................... ...................................... 1
112 ............ EBL1236VS-G112 ..... Handle .................................................................... PVC .............................. 1
113 ............ TS-1505031 .............. Socket Head Cap Screw ......................................... M10x25mm ................... 1
114 ............ EBL1236VS-G114 ..... Screw ....................................................................... 3/16x1/4 in .................. 18
115 ............ EBL1236VS-G115 ..... Nut ........................................................................... 3/16 in ......................... 18
116 ............ EBL1236VS-G116 ..... Window .................................................................... 3Tx193x343mm ............ 1
117 ............ EBL1236VS-G117 ..... Window .................................................................... 3Tx193x230mm ............ 1
