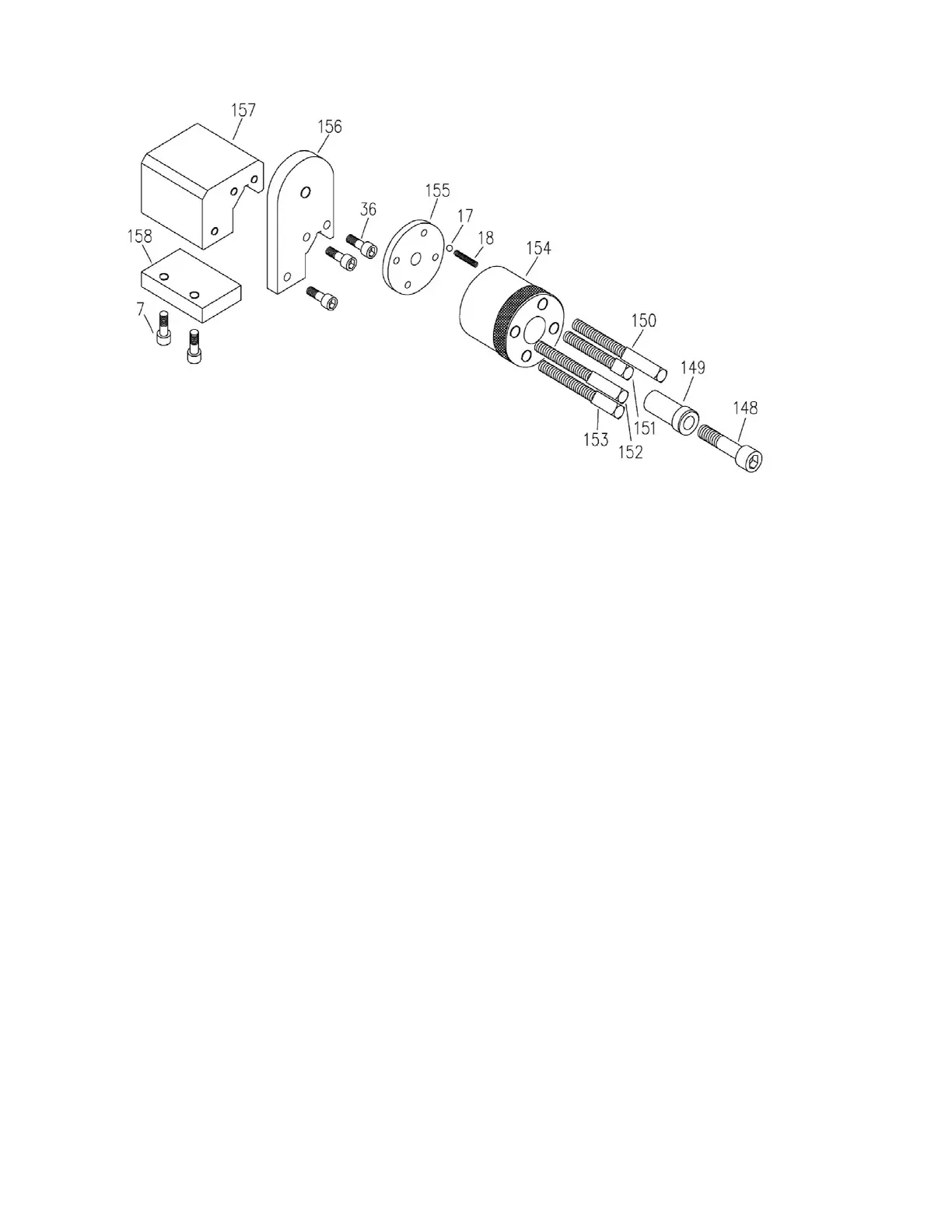

15.15.1 EVS-1440B Four-Position Stop Assembly – Exploded View
15.15.2 EVS-1440B Four-Position Stop Assembly – Parts List
Index No Part No Description Size Qty
7 ................ TS-1503051 .............. Socket Head Cap Screw ......................................... M6x20mm ..................... 2
17 .............. SB-1/4 ....................... Steel Ball ................................................................. 1/4 in. dia. ..................... 1
18 .............. E1340VS-G18 ........... Spring ...................................................................... 1/4 in.x35mm. ............... 1
36 .............. TS-1503041 .............. Socket Head Cap Screw ......................................... M6x16mm ..................... 3
148 ............ E1440VS-I148 ........... Socket Head Cap Screw ......................................... 3/8x70mm ..................... 1
149 ............ E1440VS-I149 ........... Sleeve ...................................................................... ...................................... 1
150 ............ E1440VS-I150 ........... Screw ....................................................................... ...................................... 1
151 ............ E1440VS-I151 ........... Screw ....................................................................... ...................................... 1
152 ............ E1440VS-I152 ........... Screw ....................................................................... ...................................... 1
153 ............ E1440VS-I153 ........... Screw ....................................................................... ...................................... 1
154 ............ E1440VS-I154 ........... Collar ....................................................................... ...................................... 1
155 ............ E1440VS-I155 ........... Cover ....................................................................... ...................................... 1
156 ............ E1440VS-I156 ........... Plate ........................................................................ ...................................... 1
157 ............ E1440VS-I157 ........... Base ........................................................................ ...................................... 1
158 ............ E1440VS-I158 ........... Strip ......................................................................... ...................................... 1
.................. E1440VS-I4PSA ........ 4 Position Stop Assembly ........................................ ...................................... 1
